Installing A New Blade - US Cutter LaserPoint User Manual

Remove the top cap, the pen and the spring. Replace the pen and/or spring as necessary. Slide the spring
onto the pen from the top and insert it back into the pen carriage.
Replace the carriage cap and screw into place.
Once you are ready to make cuts with the LaserPoint you can attach the blade carriage.

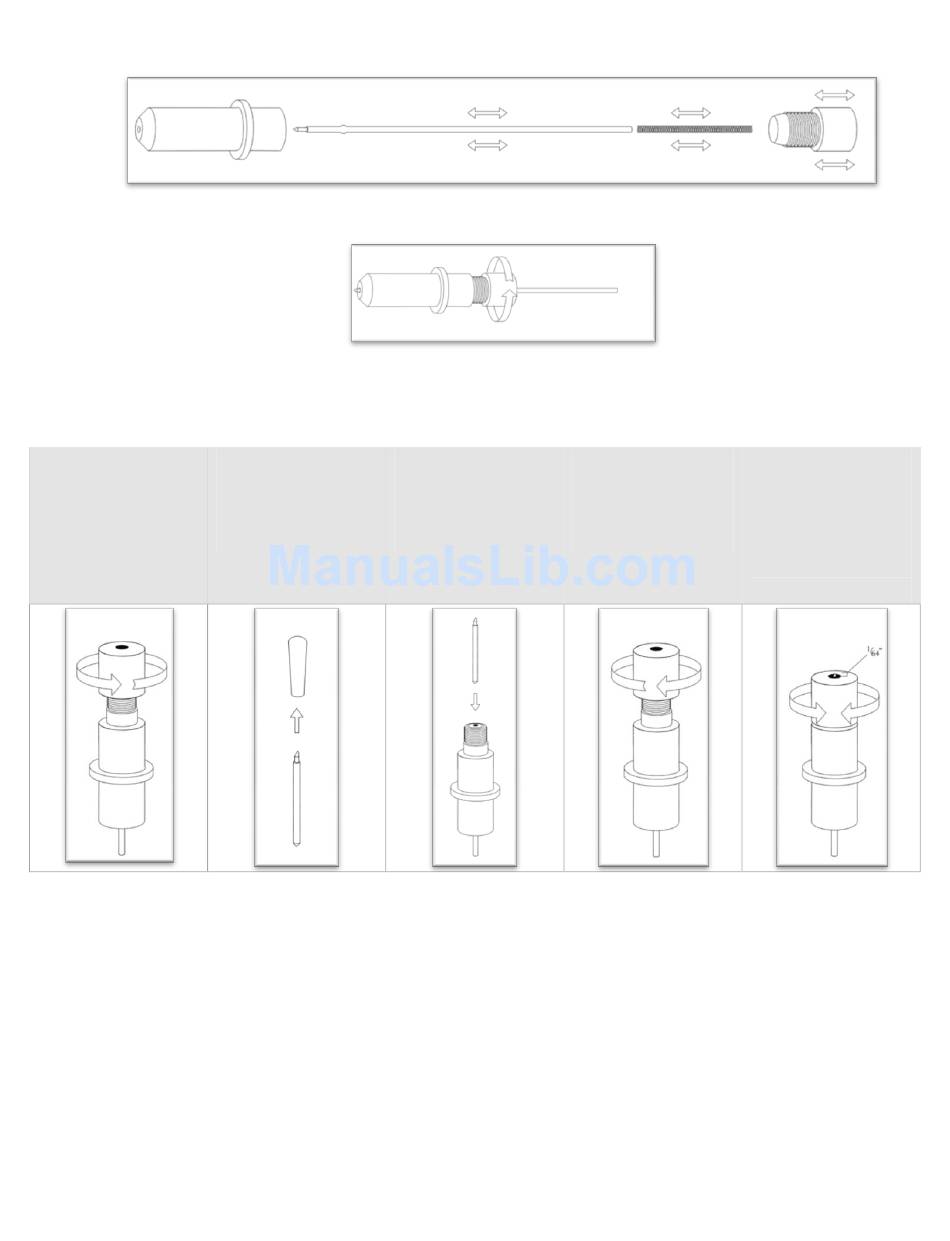

Installing a New Blade

Unscrew the cap Remove the
from the Blade protective cover
carriage. from a new blade.
Insert the blade Screw the cap back
into the top of the onto the blade
Blade carriage. carriage.
Adjust the carriage
cap until the blade
is protruding
approximately
th
1/64 of an inch.
