LaserPoint Parts

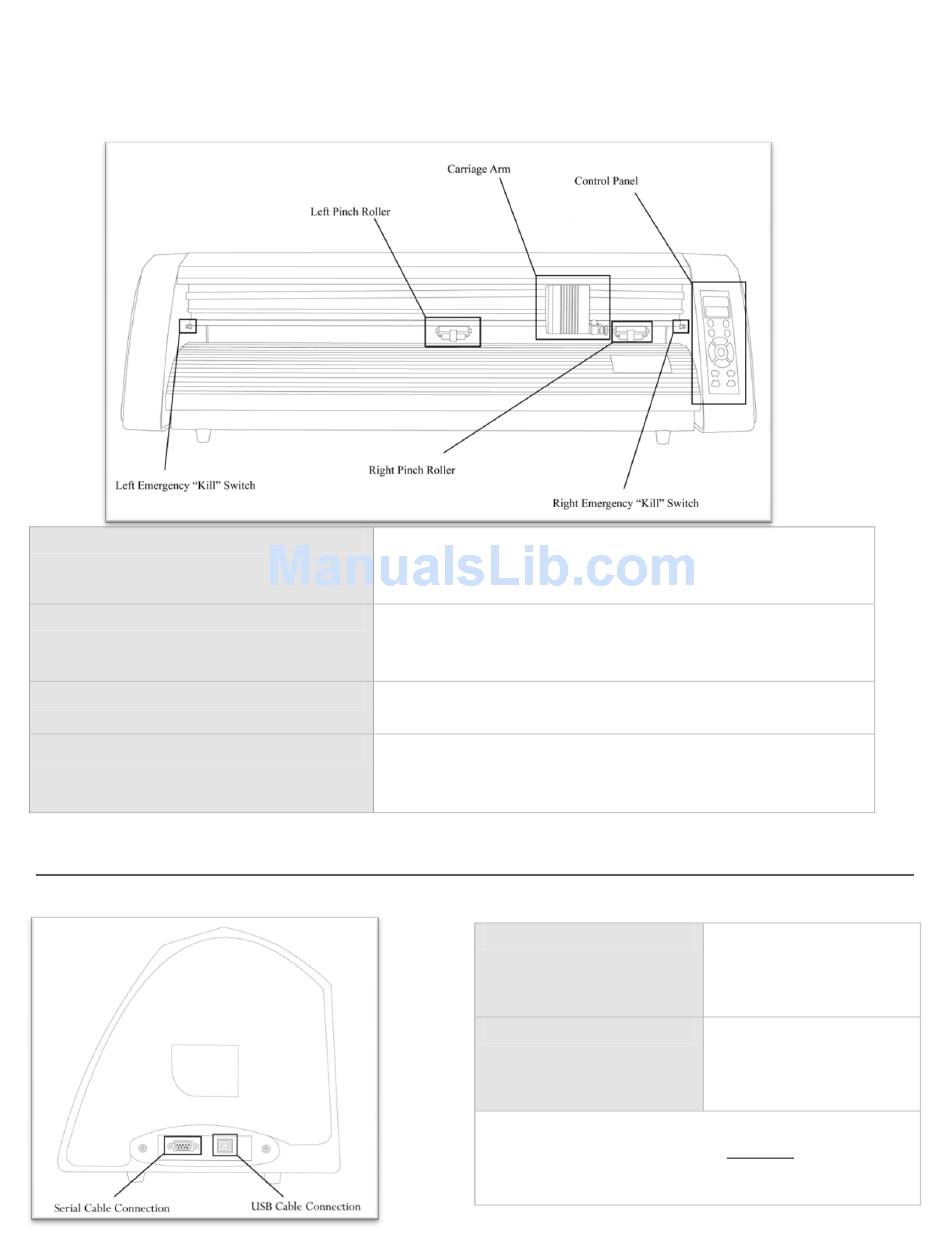

Before you start cutting, you should familiarize yourself with the cutter and its basic parts and functions:
Front View
Control Panel
Carriage Arm
Left/Right Pinch Roller(s)
Left/Right Emergency "Kill" Switch(es) Used to automatically stop the machine from cutting (to
Right Side View
Used to provide input directly to the cutter. Covered in
detail in the "Control Panel" (page 6)section of this manual.
Holds the Blade (or Pen) Carriage. Also houses the laser
used for contour cutting.
Holds the vinyl (or other cuttable media) tightly to the feed
roller below.
avoid damage) when improper cutting parameters are set,
or in the event of software errors.
Serial Cable Connection
USB Cable Connection
Only either the Serial cable or USB cable should be used to
connect the cutter to a computer. Not Both.
Used to connect a serial
cable from the cutter to
a computer.
Used to connect a USB
cable from the cutter to
a computer.
- 4 -
