Test Mode - US Cutter LaserPoint User Manual

Test Mode

Test Mode is used to create a test pattern that shows various cuts in a number of
directions. Most simple tests (those to check the pressure and speed settings) can be
done more efficiently by pressing and holding the Test Button from any of the
other modes. If you would like the test to be performed multiple times, you can
set the number shown on the display screen to the amount of times you would
like to test (from 1 to 255). For most situations, 1 test will be sufficient.

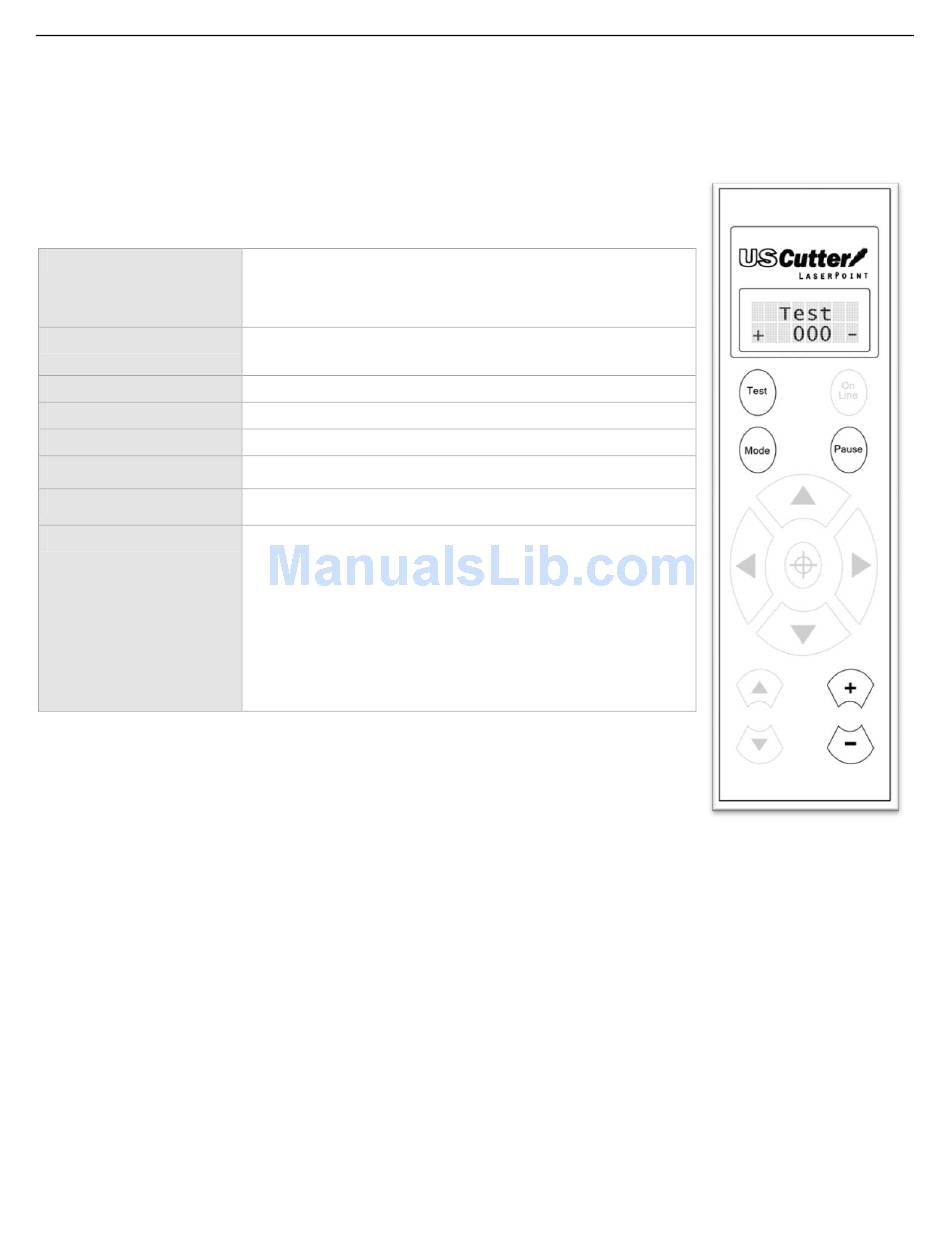

Test Button
On Line Button
Mode Button
Pause Button
Directional Buttons
Target Button
Up/Down Buttons
Plus/Minus Buttons
Cuts a test pattern the number of times shown on the
display screen, using the current speed and pressure
settings.
(has no function in this mode).
Cycles through the 7 Off Line modes.
Returns the cutter to Jog Mode.
(has no function in this mode).
(has no function in this mode).
(has no function in this mode).
Increases/Decreases the number of test patterns to
be cut (ranges from 0 to 255).
This should not be set to 0 (zero), as this will allow the
cutter to continue to cut test patterns until it is turned off.
- 10 -
