X/Y Axis Scale Compensation Modes

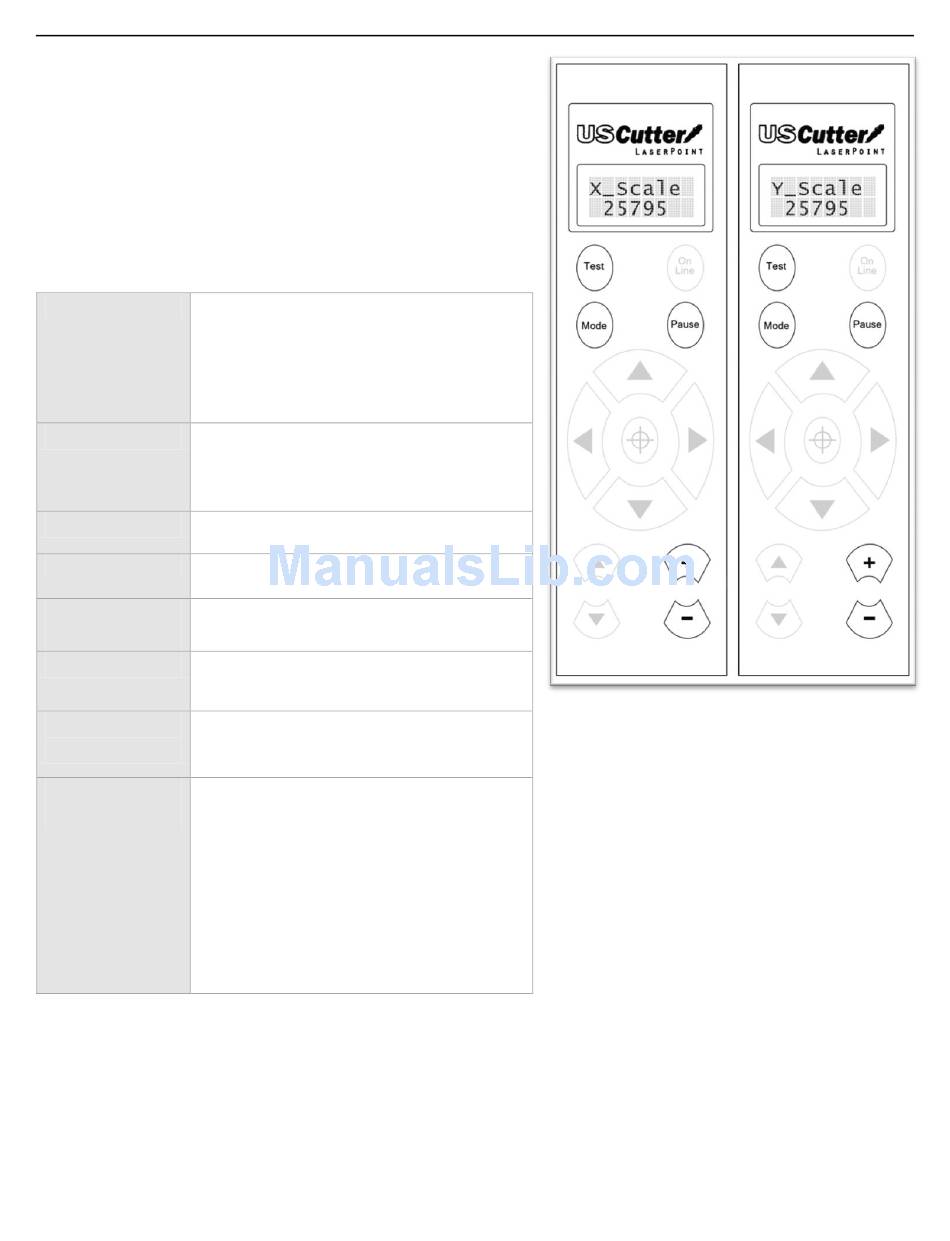

The X and Y Axis Scale Compensation Modes are used to
correct problems when the cuts being made are not the
same scale as they are intended. The X axis effects the size
of cuts across the width of the vinyl while the Y axis effects
the size of cuts along the length of the vinyl. If the cuts
being made are not the correct size, increase or decrease
the number that coincides with the problem axis until the
cuts are correct.
Test Button Returns the cutter to Jog Mode (If held
down, a test cut will be made).
On Line Button (has no function in this mode).
Mode Button Cycles through the 7 Off Line modes.
Pause Button Returns the cutter to Jog Mode.
Directional (has no function in this mode).
Buttons
Target Button (has no function in this mode).
Up/Down (has no function in this mode).
Buttons
Plus/Minus Increases/Decreases the amount of
Buttons X/Y scale compensation. The larger
the number is, the larger the cut made
will be. This compensation can be used
to remedy problems where the cut
being made is smaller or larger than it
was intended.
- 13 -
