Brickcom Hydra Series Hardware User's Manual page 16

Megapixel extendible network camera

Table of Contents

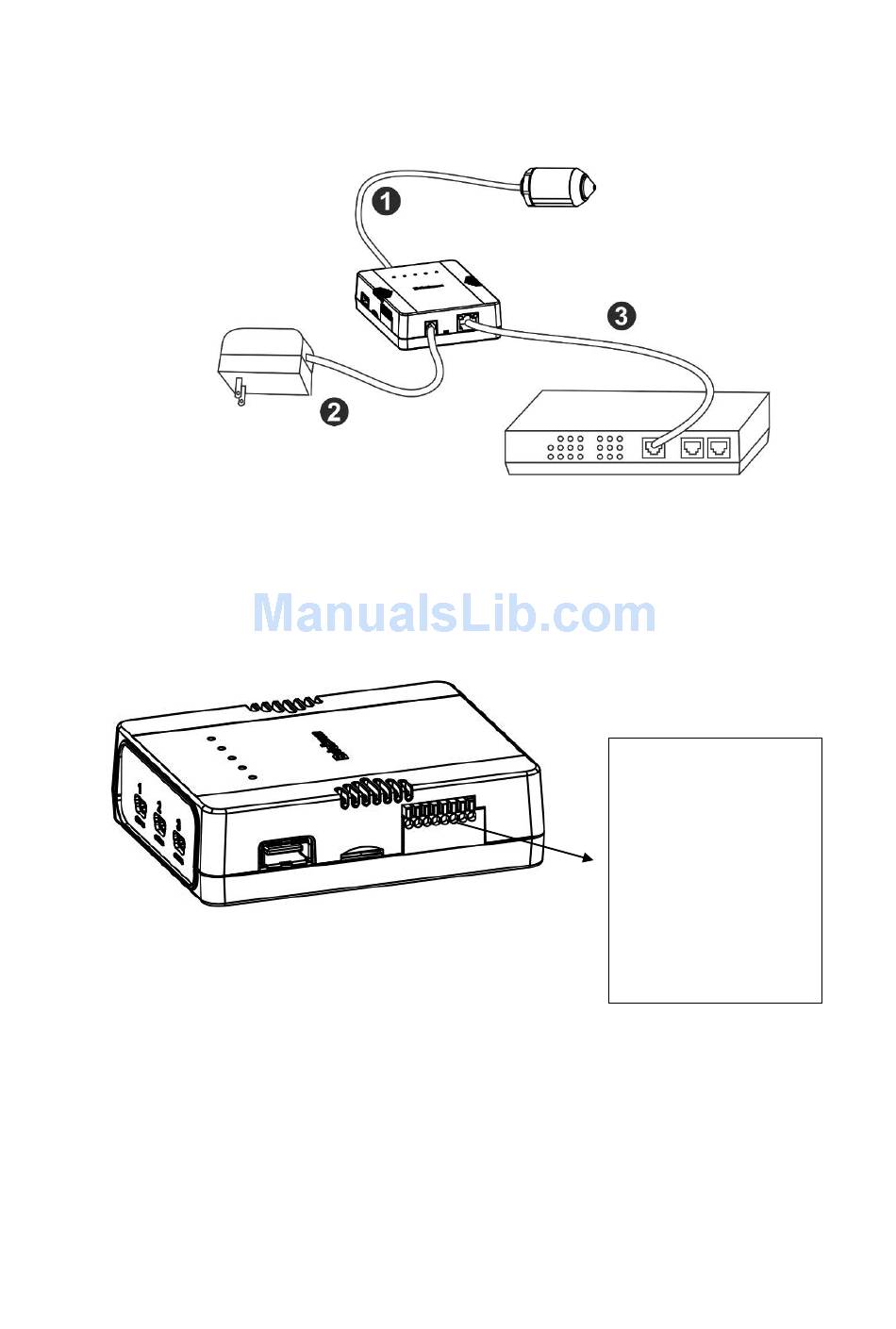

c. Power on the camera with DC12V 1A power adaptor.

Router/ Computer/ NVR/ Switch

Step 2. Terminal I/O Block Adaptor Pin Definition (from left to right)

1. Ground

2. Digital Input

3. Digital Output

4. Power +12V

5. Ground

6. Digital Input

7. Digital Output

Ground
