Camera Installation

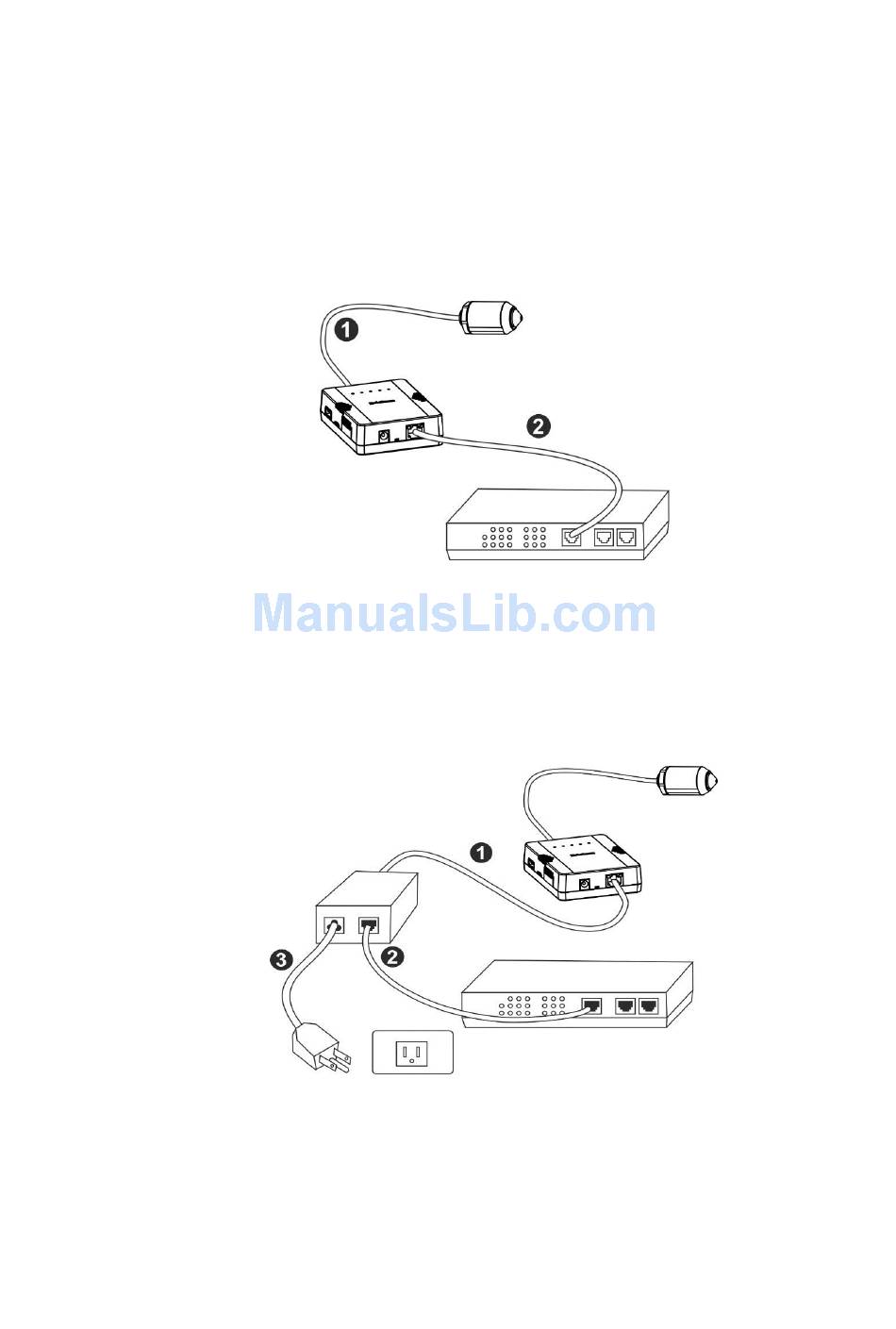

Step 1. Power and Ethernet Connection
a. Power on the camera with PoE switch:
Use an Ethernet cable to connect VB-03 to the PoE switch.
b. Power on the camera with PoE injector:
i. Use an Ethernet cable to connect VB-03 to a PoE injector.
ii. Use an Ethernet cable to connect the PoE injector to the non-PoE switch.
iii. Connect the PoE injector to a power outlet.
PoE Switch
PoE Injector
Router/ Computer/ NVR/ Switch
14
