4 Machine description – quick overview
4.1

Front view

Item Symbol
1
2
3
4
5
6
099-002040-EW501
28.04.2014
Machine description – quick overview
Description 0
Carrying strap
Machine control
See Machine control – operating elements chapter
Connection socket, "+" welding current
•
TIG: Connection for workpiece lead
•
MMA: Electrode holder or workpiece lead connection
Machine feet
Cooling air outlet
Connection socket, "-" welding current
•
MMA welding: Electrode holder or workpiece lead connection
•
TIG welding: Welding current lead connection for TIG welding torch

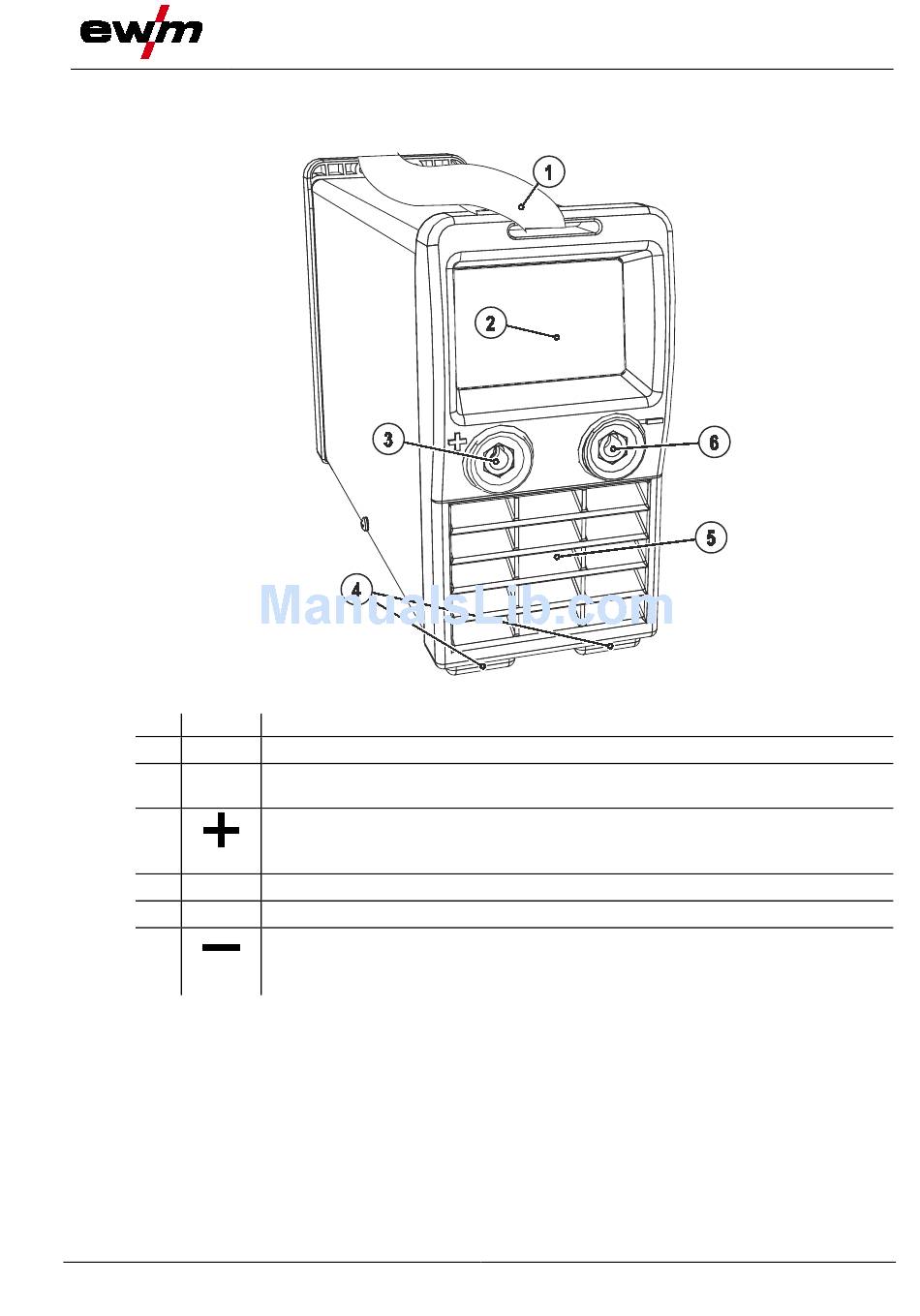

Figure 4-1
Front view
