Design and function

Dirt filter

5.7 Dirt filter
These accessory components can be retrofitted as an option, see Accessories chapter.
•

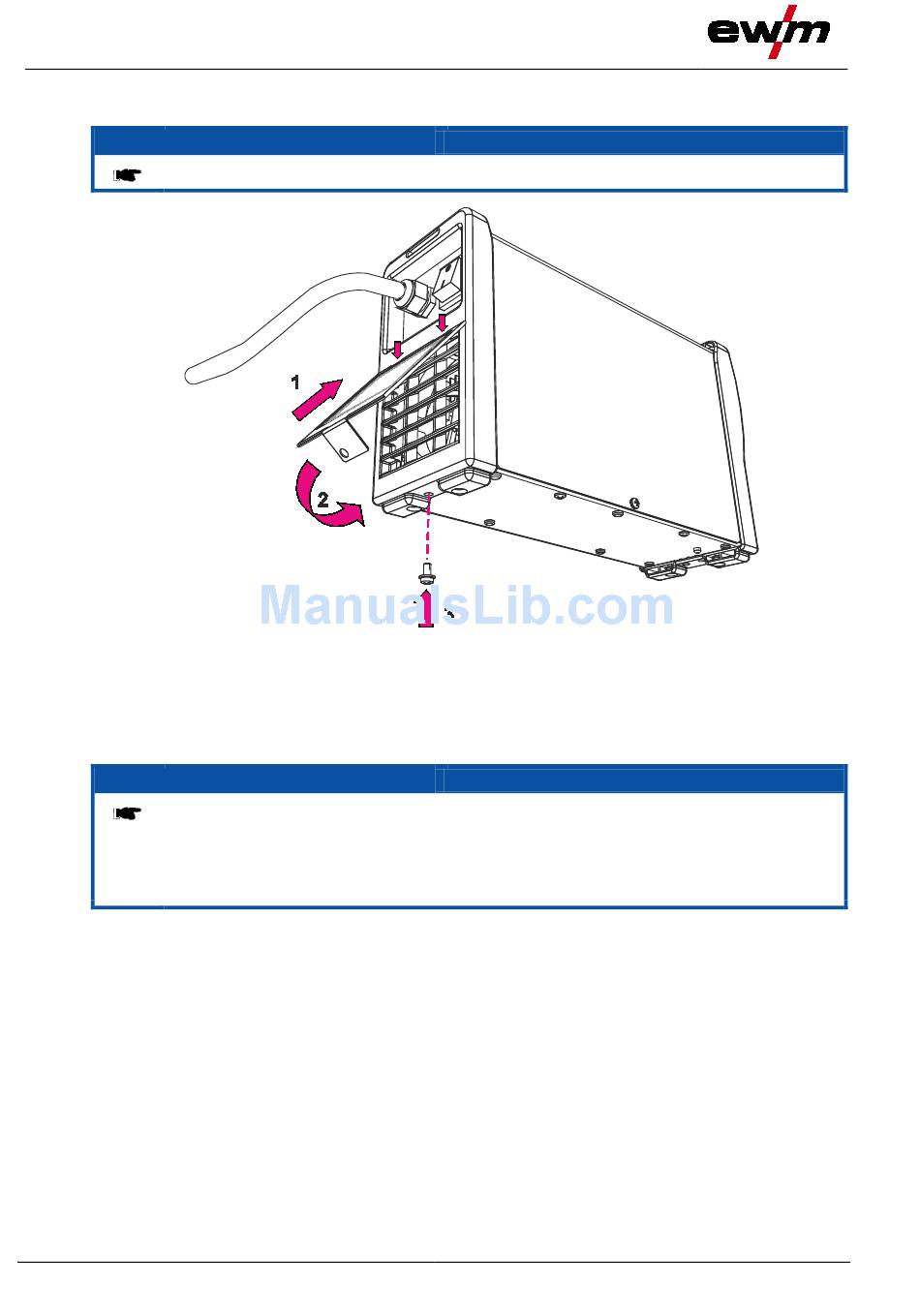

As shown in the diagram, insert the dirt filter into the rear of the machine, above the air inlet, using
both clips (1).
•
Fold down the dirt filter (2).
•
Fasten the dirt filter to the underside of the machine (3) using fixing screws.
The dirt filter can be used in places with unusually high levels of dirt and dust in the
ambient air.
The filter reduces the duty cycle of the welding machine via the reduced flow of cooling
air. The filter must be disassembled and cleaned regularly depending on the level of dirt
(blow out with compressed air).
