Design and function
TIG welding
5.6.1.2

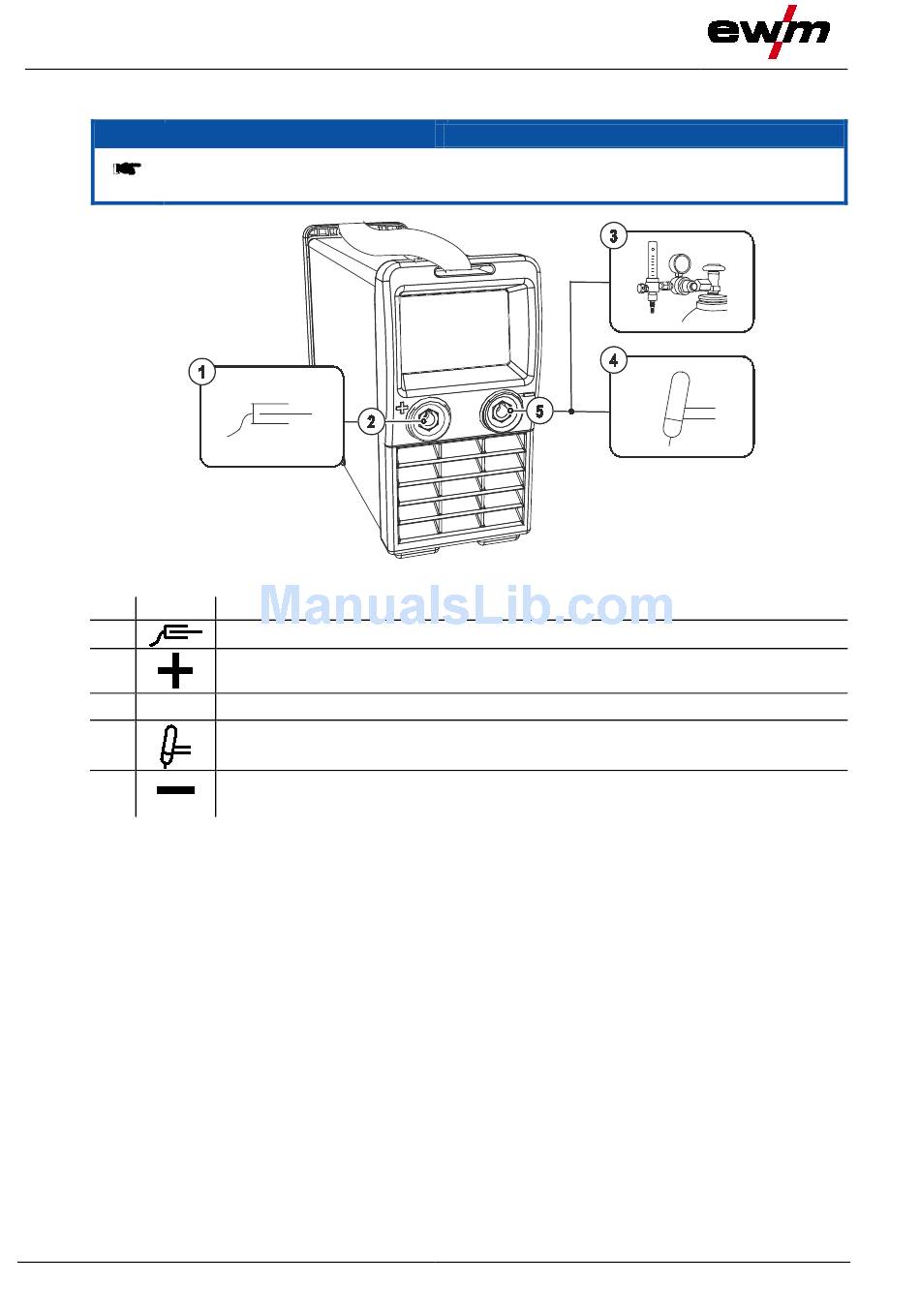

Connecting a TIG welding torch with rotating gas valve

Prepare welding torch according to the welding task in hand (see operating instructions
for the torch).
Item Symbol
1
2
3
4
5
•
Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by
turning to the right.
•
Insert the welding current plug on the welding torch into the welding current connection socket and
lock by turning to the right.
26
Description 0
Workpiece
Connection socket for "+" welding current
Workpiece lead connection
Output side of the pressure regulator
Welding torch
Connection socket, "-" welding current
Welding current lead connection for TIG welding torch
NOTE
Figure 5-5
099-002040-EW501
28.04.2014
