Preset Key; P Reset Key; Density - Konica Minolta 7135 User Manual

[3] Preset Key

Set two userset density levels and three USERSETs of magnification.

[1] Density

Output copying samples from 16 density levels from Lighter to Normal or Normal to
Darker, then select the desired exposure and program it as USER1.
The programmed copy density can be recalled by selecting USER1 on the Basic
Screen.

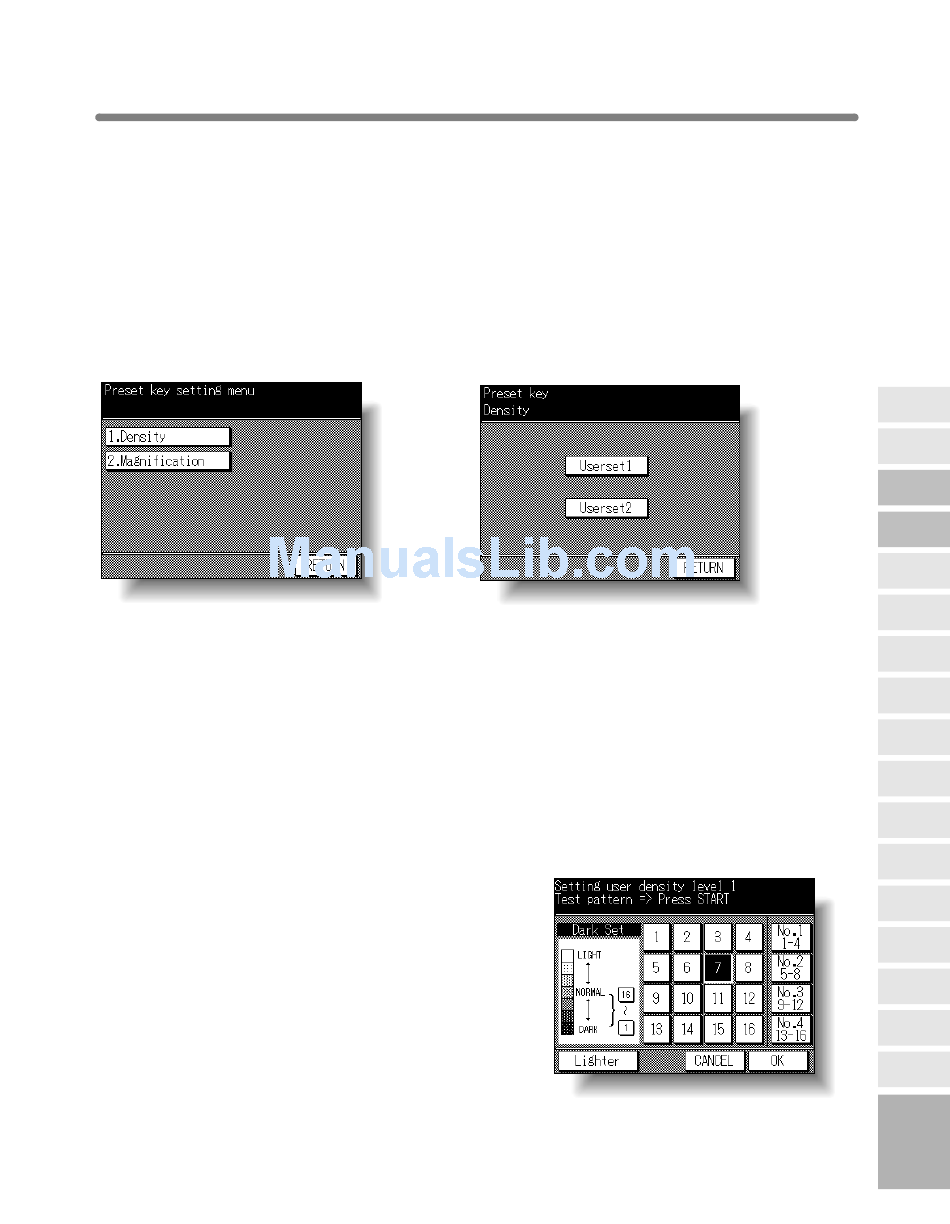

Preset Key Setting Menu Screen
Procedure
1 Touch [3] Preset key on the Key Operator Mode Screen to display the Preset Key
Setting Menu Screen.
2 Touch [1] Density to display the Userset Density Selection Screen.
3 Place the original on the platen glass or in the RADF.
4 Touch Userset1 or Userset2. The Userset Density Darker Setting Screen will be
displayed.
5 To program Userset (1 or 2) to a darker level, perform the following operation, then
proceed to step 7.
Touch No.1 1~4, No.2 5~8, No.3 9~12, or No.4
13~16, then press [START]. The darker level
sample sheet will be output.
Select the desired darker exposure from the
sample sheet(s), then touch the density number
from 1 to 16.
Userset Density Selection Screen
Userset Density Darker Setting Screen
Key Operator
Mode
System Initial
Copier Initial
Preset Key
E.C.M.
Lock Job
Memory
Paper Type
Panel Contrast
Key Operator
Data
Weekly
Timer
Touch Panel
Adjustment
Power Save
Memory
Switch
List Print
Application
Customize
Density Shift
KRDS Host
11
11-15
Key Operator
Mode
