1.9 Connectors

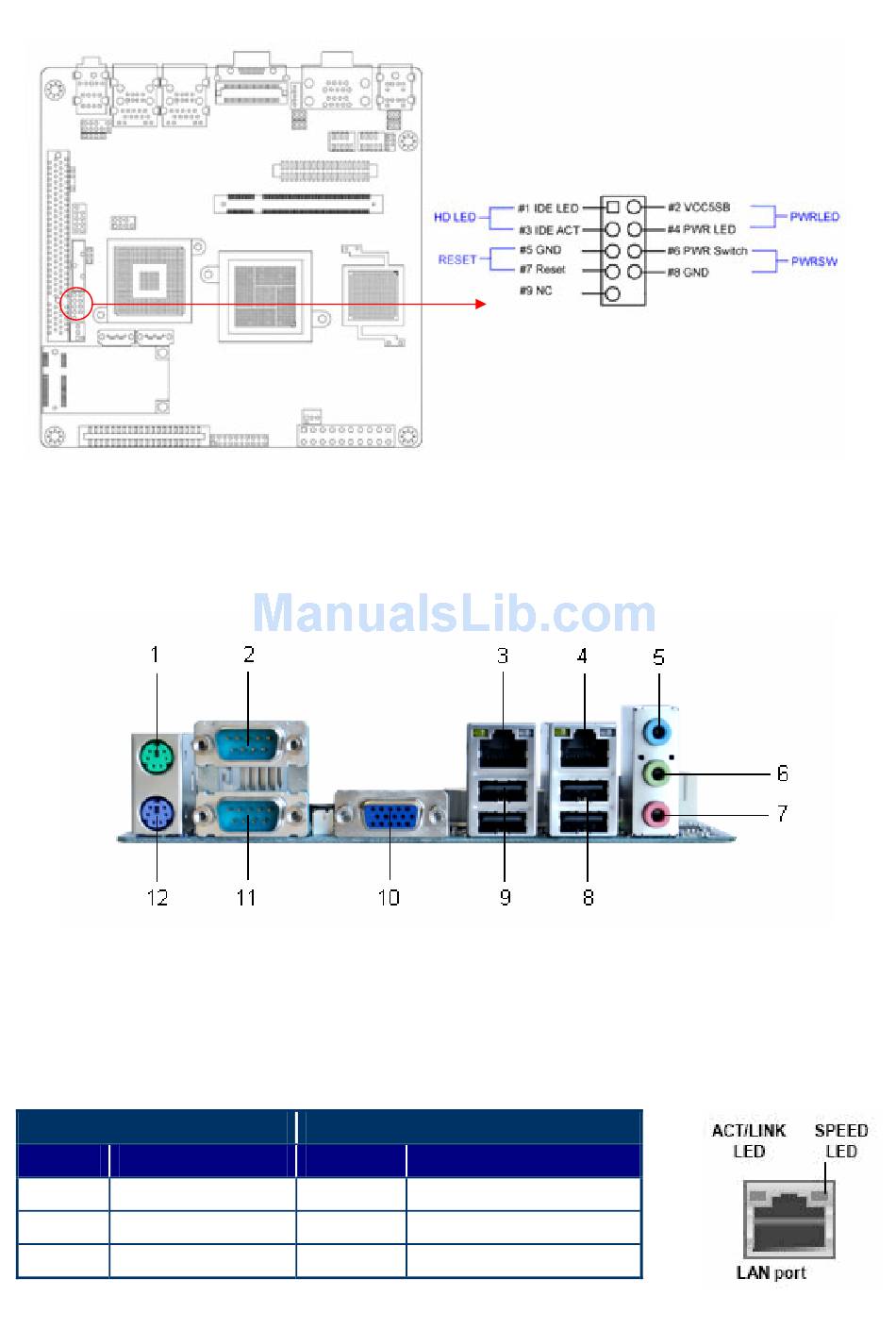

1.9.1 Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Serial connector. This 9-pin COM1 port is for serial devices.
3 & 4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
ACT/ LINK LED
Status Description
OFF No link
Orange Linked
Blinking Data activity
16 IX945GSE2 User's Manual
SPEED LED
Status Description
OFF 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
