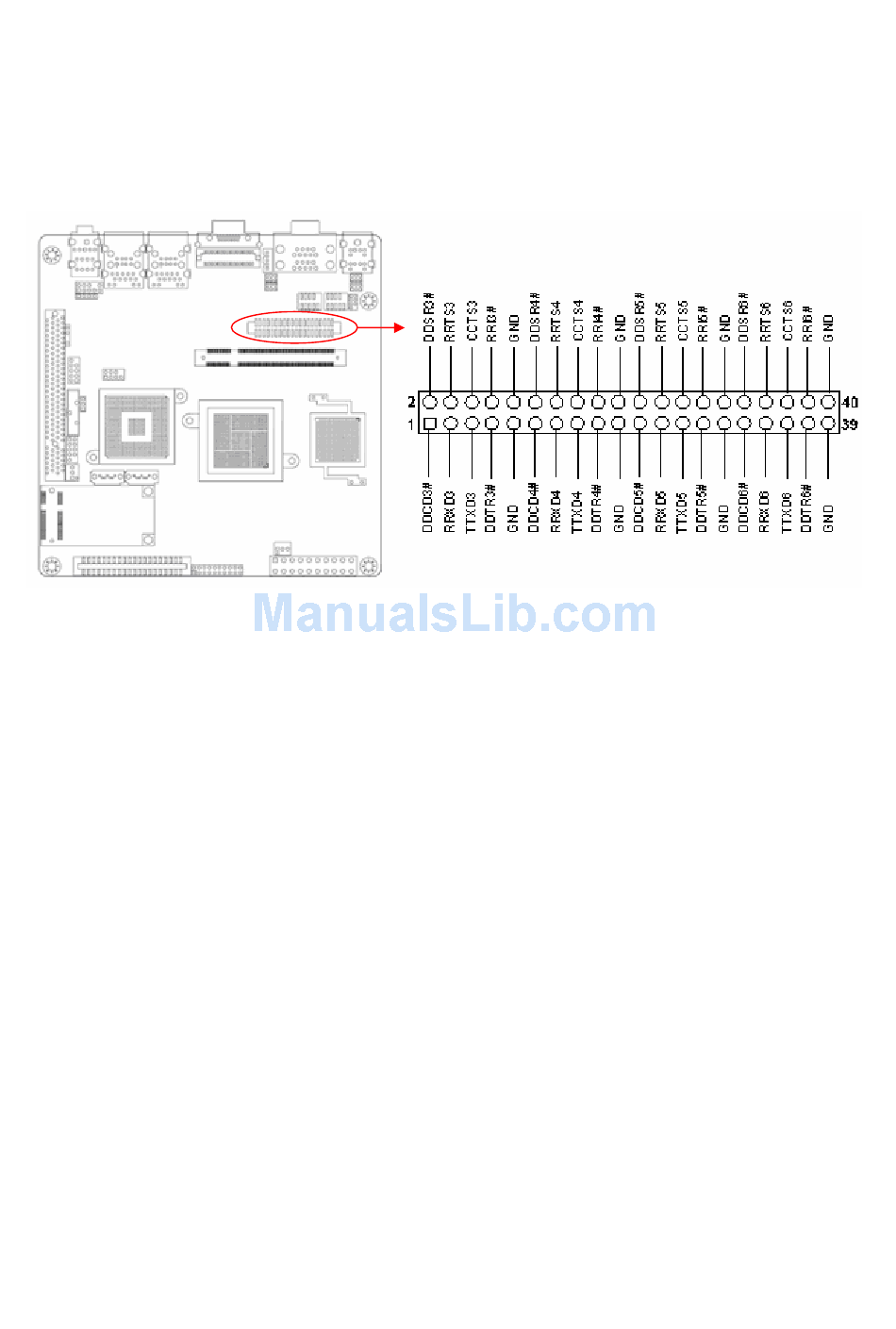

1.8.6 4-in-1 COM Port

The main board can provide COM3, COM4, COM5 and COM6 port when a
4-in-1 COM cable is connected through a 40-pin box header. 4 COM ports
only can provide RI function and they are with no electricity.

1.8.7 System Panel Connector (F_PANEL1)

This connector supports several chassis-mounted functions.
- System Power LED (2-pin PWRLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the
system power, and blinks when the system is in sleep mode.
- ATX Power Button/Soft-off Button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the BIOS
settings. Pressing the power switch for more than four seconds while the system is
ON turns the system OFF.
- Hard Disk Drive Activity LED (2-pin HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED
cable to this connector. The IDE LED lights up or flashes when data is read from or
written to the HDD.
- Reset Button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot
without turning off the system power.
User's Manual
IX945GSE2 User's Manual 15
