1.7 Connectors

1.7.1

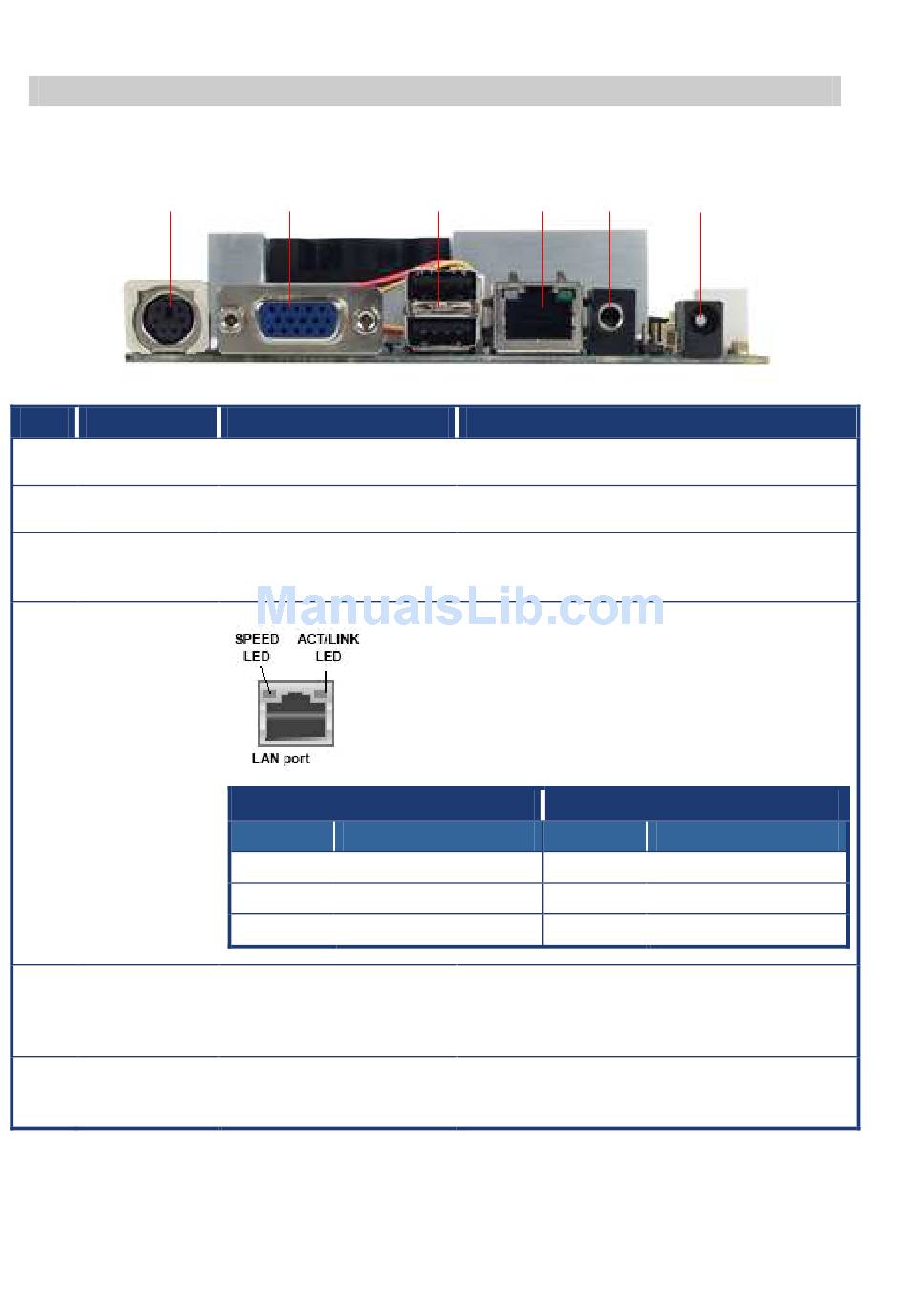

Rear Panel Connectors

1
No Label
1 KBMS1
2 VGA11
3 USB1
4 LAN1
5 Audio2
6 DCIN1
2
Function
PS/2 keyboard and
mouse connector
VGA Connector
USB 1&2 connector

LAN (RJ-45) connector

SPEED LED
Status Description
OFF 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
Audio Line-out Port
12V DC-In Power Jack
Data Modul AG - www.data-modul.com
3 4 5
Description
The standard PS/2 mouse DIN connector is
for a PS/2 mouse.
This 15-pin port is for a VGA monitor or
other VGA-compatible devices.
These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB
1.1/2.0 devices.
This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications. The optional
10/100 Mbps LAN controller allows 10/100
Mbps connection to a Local Area Network
(LAN) through a network hub.
Status
OFF
Green
Blinking
This port connects a headphone or a
speaker. In 4-channel, 6-channel, and
8-channel configuration, the function of this
port becomes Front Speaker Out.
This power jack is connecting for 12V
AC/DC pin 2.5mm power adapter . 12V
40W above is recommended .
User's Manual
6
ACT / LINK LED
Description
No link
Link
Data activity
ENX-PNV 21
