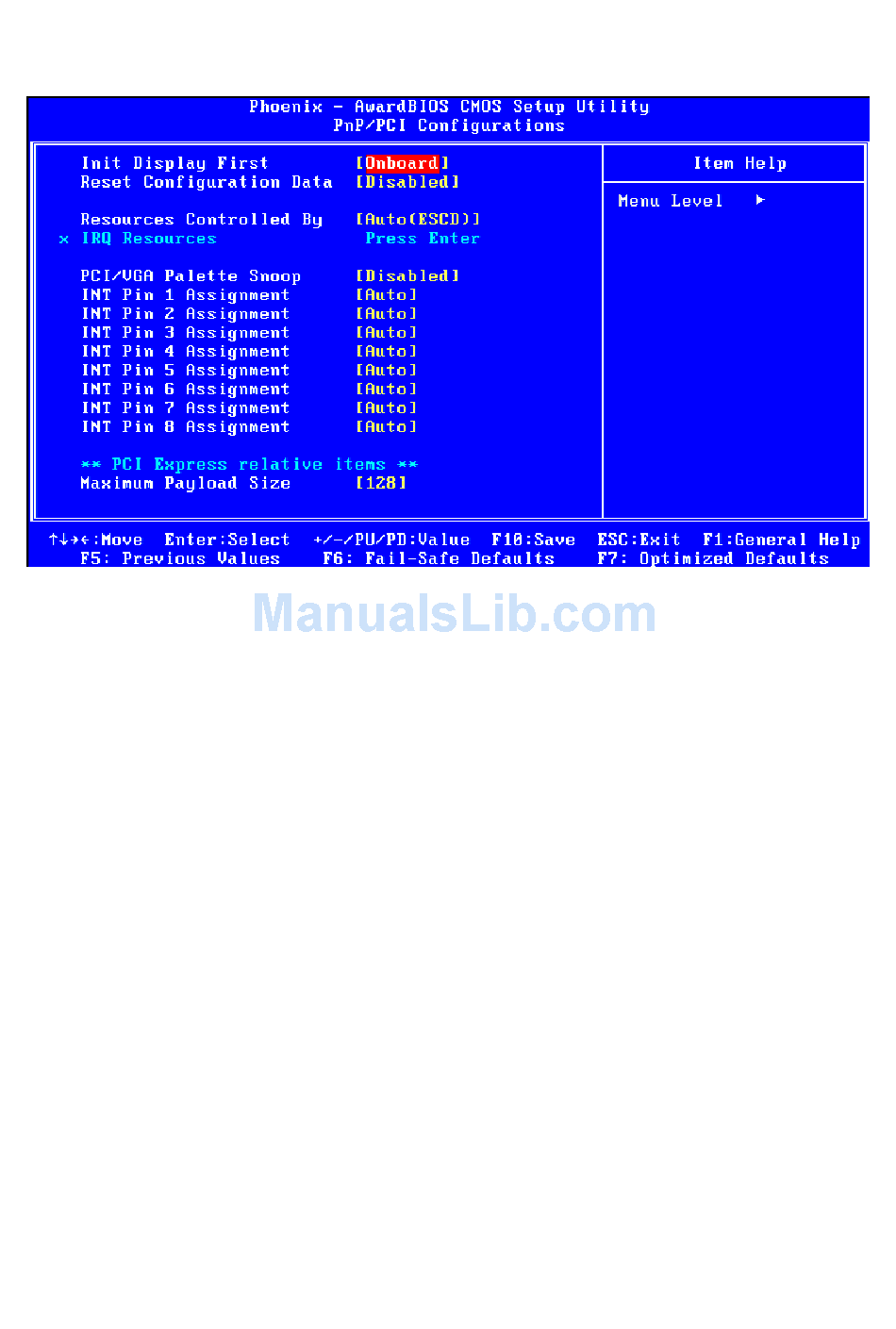

2.3.7 PnP/PCI Configurations

2.3.8.1

Init Display First

The choices are "PCI slot" and "Onboard".
2.3.8.2

Reset Configuration Data

The default is "Disabled". Select Enabled to reset Extended System Configuration Data
(ESCD) if you have installed a new add-on card, and system configuration is in such a state
that the OS cannot boot.
2.3.8.3

Resources Controlled By

The commands here are "Auto(ESCD)" or "Manual". Choosing "Manual" requires you to
choose resources from the following sub-menu. "Auto(ESCD)" automatically configures all
of the boot and Plug and Play devices, but you must be using Windows 95 or above.
2.3.8.4

PCI/VGA Palette Snoop

This is set to "Disabled" by default.
2.3.8.5

INT Pin 1~8 Assignment

Settings are "Auto" , 3,4,5,7,9,10,11 and ect.
2.3.8.6

Maximum Payload Size

This allows you to set the maximum TLP payload size for PCI Express devices. The options
are [128 bytes], [256 bytes], [512 bytes], [1024 bytes], [2048 bytes], and [4096 bytes].
