User's Manual
The S/PDIF out module is purchased separately.

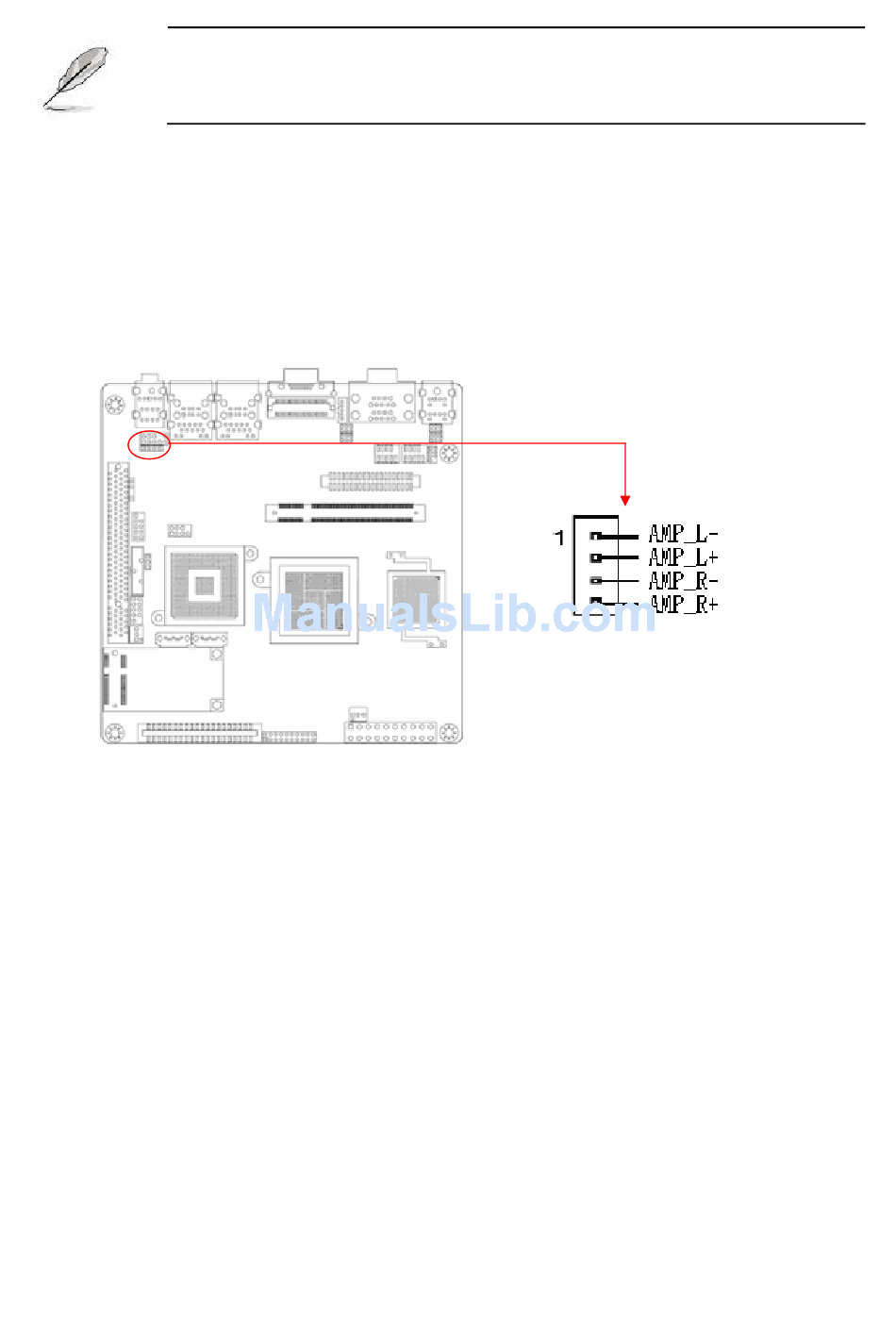

1.9.2.8 Audio Amplifier connectors (4-pin JAMP1) (Optional)
An amplifier connector is an electronic amplifier that amplifies low-power audio signals
(signals composed primarily of frequencies between 20 hertz to 20,000 hertz, the human
range of hearing) to a level suitable for driving loudspeakers and is the final stage in a
typical audio playback chain.
1.9.2.9 PS/2 Header
This header is reserved for some applications of the PS/2 interface device , such as Touch
Screen/Touch Stick/Touch Pad Controller .
IX945GSE2 User's Manual 21
