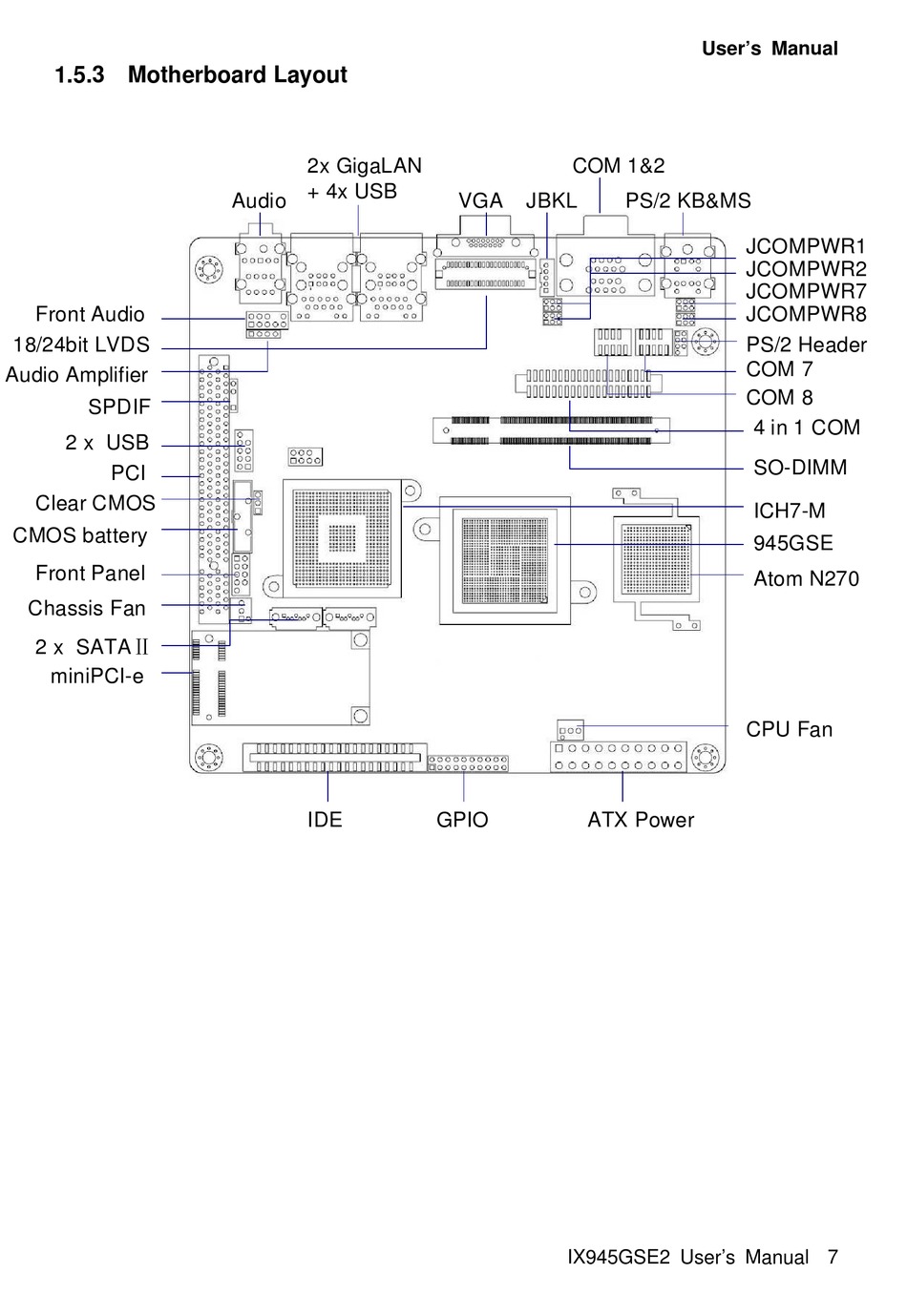

1.5.3 Motherboard Layout
Front Audio
18/24bit LVDS
Audio Amplifier
SPDIF
2 x USB
PCI
Clear CMOS
CMOS battery
Front Panel
Chassis Fan
2 x SATAⅡ
miniPCI-e
2x GigaLAN
+ 4x USB
Audio
IDE
COM 1&2
VGA
JBKL
GPIO
ATX Power
IX945GSE2 User's Manual 7
User's Manual
PS/2 KB&MS
JCOMPWR1
JCOMPWR2
JCOMPWR7
JCOMPWR8
PS/2 Header
COM 7
COM 8
4 in 1 COM
SO-DIMM
ICH7-M
945GSE
Atom N270
CPU Fan
