User's Manual

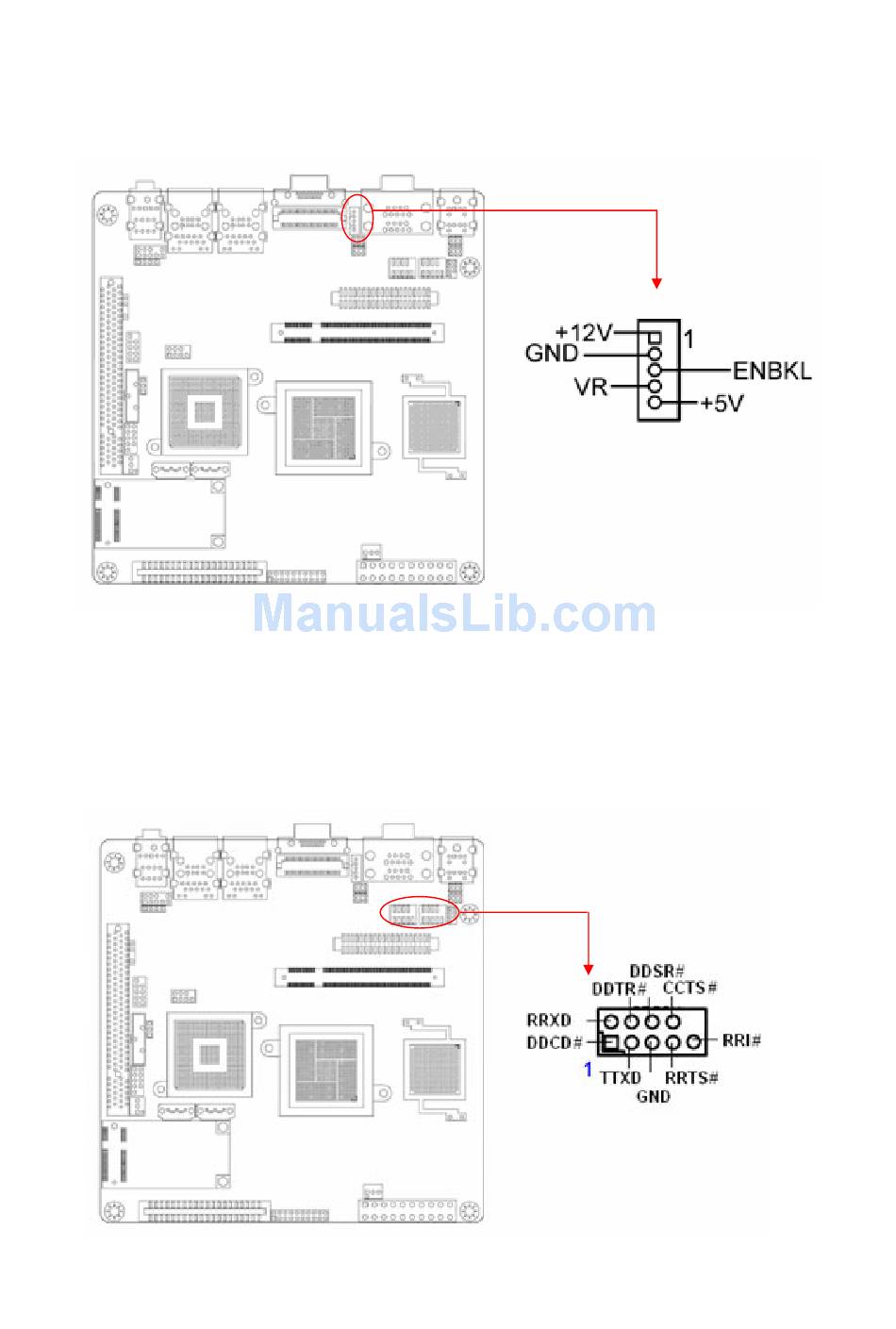

1.9.2.4 LCD Inverter Connector (5-pin JBLK)
This function will support the control of internal LVDS brightness.
1.9.2.5 Serial Port connectors (9-pin COM7 COM8)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
IX945GSE2 User's Manual 19
