Before using the terminal

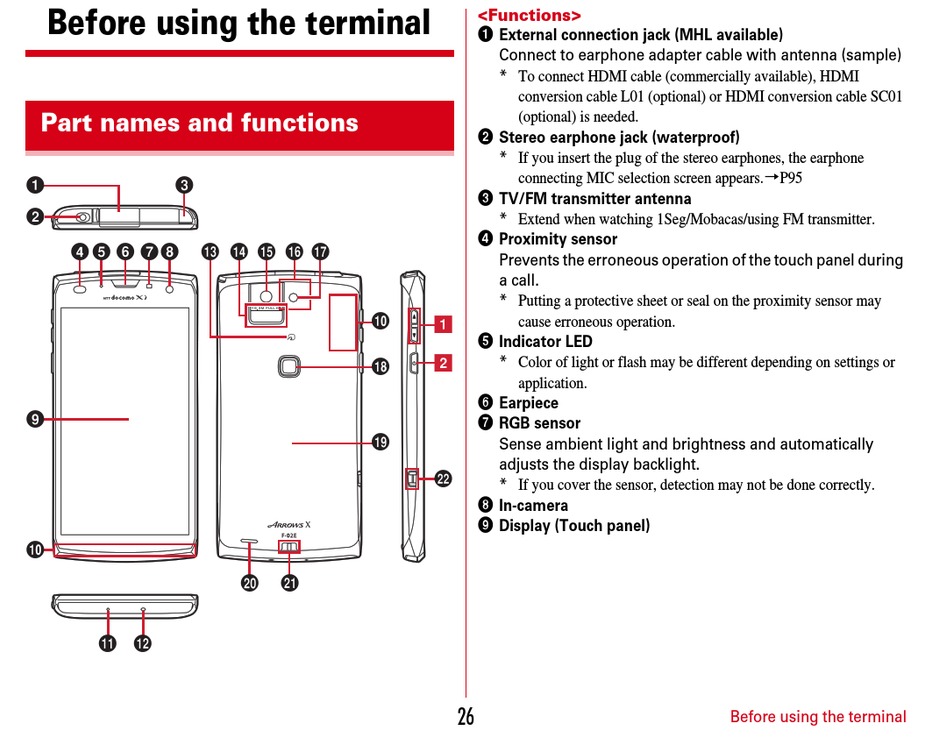

Part names and functions
c
a
b
d e f gh m
i
j
k l
n o p q
j
r
s
t u
<Functions>
a External connection jack (MHL available)
Connect to earphone adapter cable with antenna (sample)
* To connect HDMI cable (commercially available), HDMI
conversion cable L01 (optional) or HDMI conversion cable SC01
(optional) is needed.
b Stereo earphone jack (waterproof)
* If you insert the plug of the stereo earphones, the earphone
connecting MIC selection screen appears. P95
c TV/FM transmitter antenna
* Extend when watching 1Seg/Mobacas/using FM transmitter.
d Proximity sensor
Prevents the erroneous operation of the touch panel during
a call.
* Putting a protective sheet or seal on the proximity sensor may
a cause erroneous operation.
e Indicator LED
b
* Color of light or flash may be different depending on settings or
application.
f Earpiece
g RGB sensor
Sense ambient light and brightness and automatically
adjusts the display backlight.
v
* If you cover the sensor, detection may not be done correctly.
h In-camera
i Display (Touch panel)
26
Before using the terminal
