  • Page 1 ERO 540 MKII RGB LED movinghead User manual...
  • Page 2: Safety Precautions

    This unit must be operated by, or under the supervision of an adult. This device is not suitable for children. Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by (incorrect) use of this device.
  • Page 3: Box Contents

    Box contents Box contents 1x ERO 540 MKII movinghead 1x power cable 1x installing bracket 1x small bag with mounting hardware Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.
  • Page 4: Device Overview

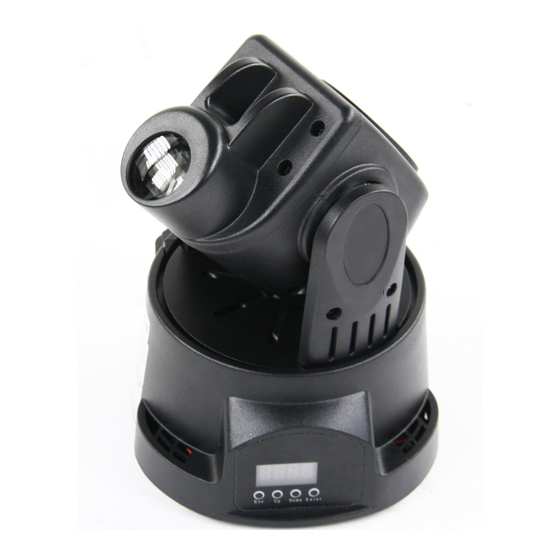

    Device overview 1. Beam output 2. Control panel with display and menu-functions 3. Adjustable manual focus 4. Cooling fan head 5. IEC power inlet 6. DMX input 7. DMX output This unit is equipped with an adjustable focus, which makes it possible to sharpen the beam when used at a small or large distance.
  • Page 5: Setting Up The Device

    Setting up the device To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The unit will activate directly after it is plugged in to a wall outlet or other power source. Give the movinghead time to calibrate the stepping motors, which are used to determine the position of the head.
  • Page 6 5-CH DMX mode DMX values Description 0 – 255 0 – 255 Tilt 0 – 7: Shutter closed Dimmer/Shutter 8 – 134: Dimmer 0-100% 135 – 239: Strobe slow-fast 240 – 255: Shutter open 0 – 127: Color macro Color 128 –...
  • Page 7: Additional Information

    It is possible to mount a G-clamp or halfcoupler to this bracket. It is also possible to mount the bracket on a ceiling, wall, bar, floor, desk or any flat surface. Use proper equipment to install this fixture, as a dropping fixture may cause severe injury! Ayra is not responsible for any damage or injuries caused by improper installation.
  • Page 8 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 9 Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed. Moving parts are not functioning Faulty stepping motor positioning Possible value loss of stepping well, values do not match and/or motors.
  • Page 10: Technical Specifications

    Technical specifications Compact movinghead using a RGB LED light source Light source: 15 Watt RGB LED chip Lifespan LED module: +/- 50.000 h Pan range: 540 degrees max. Tilt range: 270 degrees max. Modes: stand-alone, music controlled, master/slave, DMX Built-in stand-alone programs Built-in music controlled programs DMX-control with 5 or 13 DMX-channels Gobowheel: 9 gobo’s + open...
