Summary of Contents for Ayra ERO L90

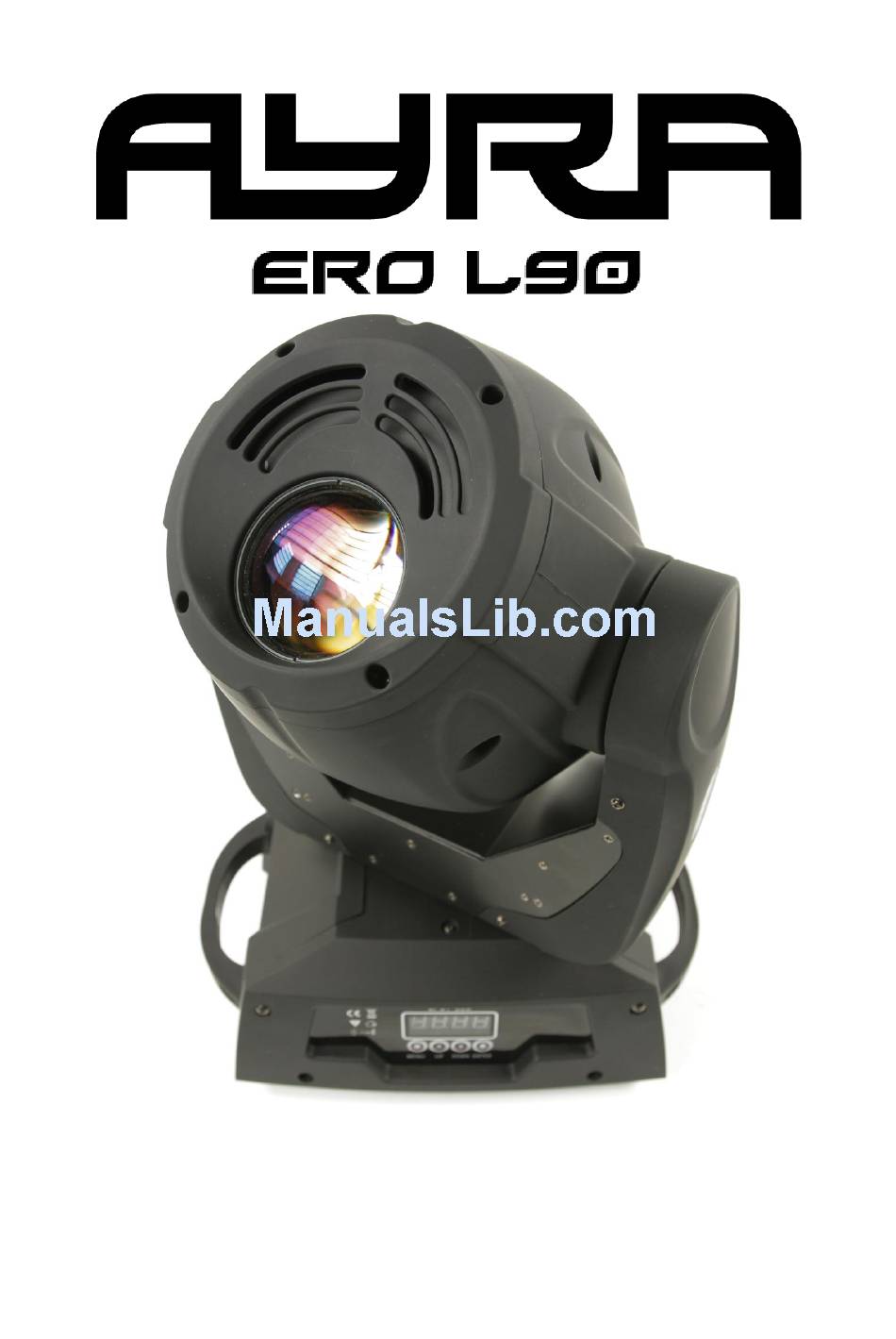

- Page 1 90 Watt LED movinghead User manual...
-
Page 2: Safety Precautions
WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage. -
Page 3: Box Contents
Box contents Box contents 1x ERO L90 1x power cable 1x omega type bracket 1x safety cable 1x signal cable (XLR – XLR) Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. - Page 4 Device overview 1. Beam output 2. Control panel with display and menu-functions 3. On/off switch 4. Fan 5. Power input (twist-lock system) 6. Power link / Power output (twist-lock system) 7. DMX input 8. DMX output 9. Lifting handles...
-
Page 5: Setting Up The Unit
Setting up the unit The ERO L90 movinghead will reset itself after activating it. There is a possibility that shocking movement and flickering takes place, as the fixture has to calibrate all 0-points for every stepping motor (pan, tilt, gobowheel, colorwheel, prism, etc.). Give the movinghead time to calibrate all stepping motors. - Page 6 Working modes: The ERO L90 movinghead is equipped with several working modes, which makes it possible to use the fixture for simple events (such as tradeshows or diners), but also for advanced purposes, such as festivals, clubs and big events.
- Page 7 Channel Function Value Description 0-255 Pan movement Pan fine 0-255 Pan fine movement Tilt 0-255 Tilt movement Tilt fine 0-255 Tilt Fine movement Color Wheel 0-14 Open/white 15-29 Color 1 30-44 Color 2 45-59 Color 3 60-74 Color 4 75-89 Color 5 90-104 Color 6...
- Page 8 240-255 Auto program, music-activated To connect several ERO L90 movingheads in DMX mode, use standard XLR – XLR cable and apply a DMX-terminator at the end of the DMX-chain. A DMX terminator is a standard XLR connector, with a typical 120 Ohm resistor between pin 2 and 3, to exterminate the signal. This prevents reflections in...
-
Page 9: Installation And Maintenance
Installation and maintenance Mounting bracket assembly The ERO L90 movinghead comes with an included Omega-type bracket, which is suitable for most triggerclamps, halfcouplers ans G-clamps. Before assembling the bracket, always mount your hooks first. After mounting the hooks to your Omega-type bracket, carefully place the contact points of the bracket on each slot, provided at the bottom of the unit. - Page 10 Cleaning Make sure to clean the exterior of the unit frequently, as the build-up of dust and dirt may have negative effects on the cooling and optics of the fixture. The exterior (plastic parts) of the unit can be cleaned with a damp cloth. The optics of the fixture can be cleaned with a clean cloth or paper towel, with the addition of a non-aggressive glass cleaning solution.
- Page 11 (cuts, exposed wire cores or any other visual deformities should not be present. If any visual or mechanical damage is detected, contact your local dealer or a specialized technician. Do not use a damaged or failing fixture. Connectors and wiring schematics: DMX-connections: Electrical wiring:...
-
Page 12: Technical Specifications
Technical specifications - 90 Watt LED spot movinghead - 50.000h lifespan - low power consumption - 630 degrees pan - 270 degrees tilt - Pan/tilt positioning memory with auto-correct functionality - 1 color wheel with 7 colors + open, rainbow effect in both directions, with variable speed - 1 rotating gobo wheel with 7 rotating, interchangeable gobo’s + open (3 metal gobo’s and 4 glass gobo’s), with variable rotating gobo speed and direction, gobo indexing, rotating gobo indexing - 1 rotatable prism wheel with one 5-facet prism, one 3D prism, one Frost prism, with speed...
