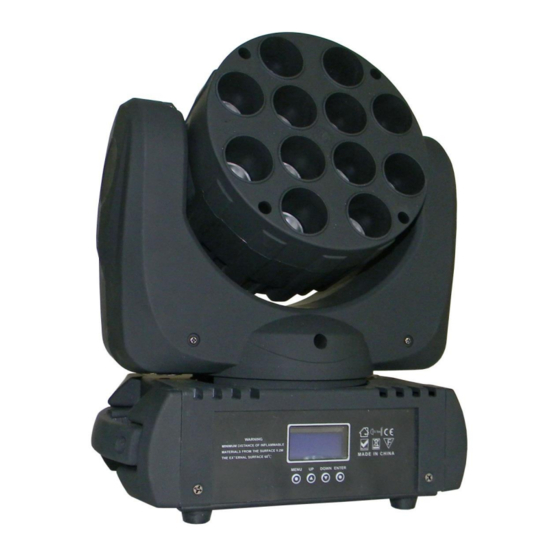

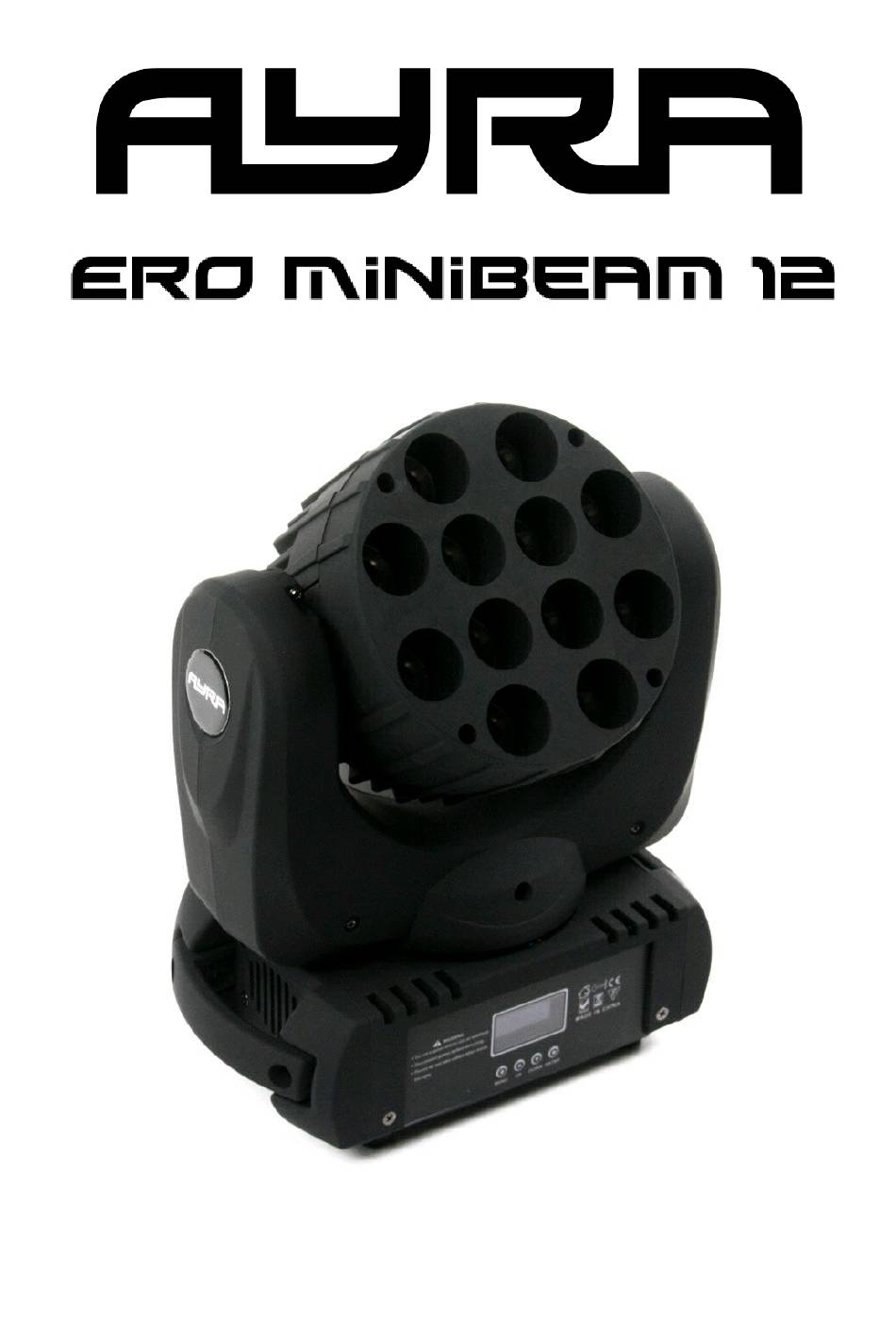

- Page 1 RGBW LED beam movinghead User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 27-12-2013 RV Revision date + author initials: 18-02-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 27-12-2013 RV Revision date + author initials: 18-02-2014 RV...
-
Page 5: Box Contents
Box contents Box contents 1x ERO Minibeam 12 1x power cable 1x installing bracket 1x small bag with mounting hardware Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 6: Device Overview
Device overview 1. Menu buttons 2. Menu display 3. Power input with fuse compartment (IEC) 4. ON/OFF switch 5. DMX input (3P XLR) 6. DMX output (3P XLR) Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 3.0 Creation date + author initials: 27-12-2013 RV Revision date + author initials: 18-02-2014 RV... -
Page 7: Setting Up The Unit
Working modes: The ERO Minibeam 12 movinghead is equipped with several working modes: - Sound-active mode: The fixture will react to music with an internal microphone. The microphone sensitivity is digitally adjustable with the LCD-display and menu-buttons. - Page 8 DMX and DMX channel settings The ERO MINIBEAM 12 movinghead is designed for control with any DMX-controller or DMX-software, to control every function of the device in detail. For optimal use of the DMX-channels (which can make a large difference with multiple fixtures) there are two DMX working modes available, basic and advanced.
- Page 9 (The below channels are available only in 29CH mode.) Cluster 1: Red dimmer Red 0-100% 0-255 Cluster 1: Green dimmer Green 0-100% 0-255 Cluster 1: Blue dimmer Blue 0-100% 0-255 Cluster 1: White dimmer White 0-100% 0-255 Cluster 2: Red dimmer Red 0-100% 0-255 Cluster 2: Green dimmer...
-
Page 10: Installation And Maintenance
It is possible to mount a G-clamp or halfcoupler to this bracket. It is also possible to mount the bracket on a ceiling, wall, bar, floor, desk or any flat surface. Use proper equipment to install this fixture, as a dropping fixture may cause severe injury! Ayra is not responsible for any damage or injuries caused by improper installation. - Page 11 - Electrical components (connectors and cables) must be in optimal condition. Any form of damage (cuts, exposed wire cores or any other visual deformities should not be present. If any visual or mechanical damage is detected, contact your local dealer or a specialized technician. Do not use a damaged or failing fixture.
- Page 12 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 13 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.
-
Page 14: Technical Specifications
Technical specifications - high power LED beam movinghead - light source: 12x RGBW 10 Watt LED module - CREE branded LED light source - expected LED lifespan: 100.000 hours - RGBW colour mixing for fluent color changes - control over four seperate LED segments for creative lighting applications and unique chase-effects - high-precision stepping motors with smooth 16-bit movement - movement speed adjustable for pan and tilt - wide movement range: 540°...
