Summary of Contents for Ayra TDC Diamond Scan

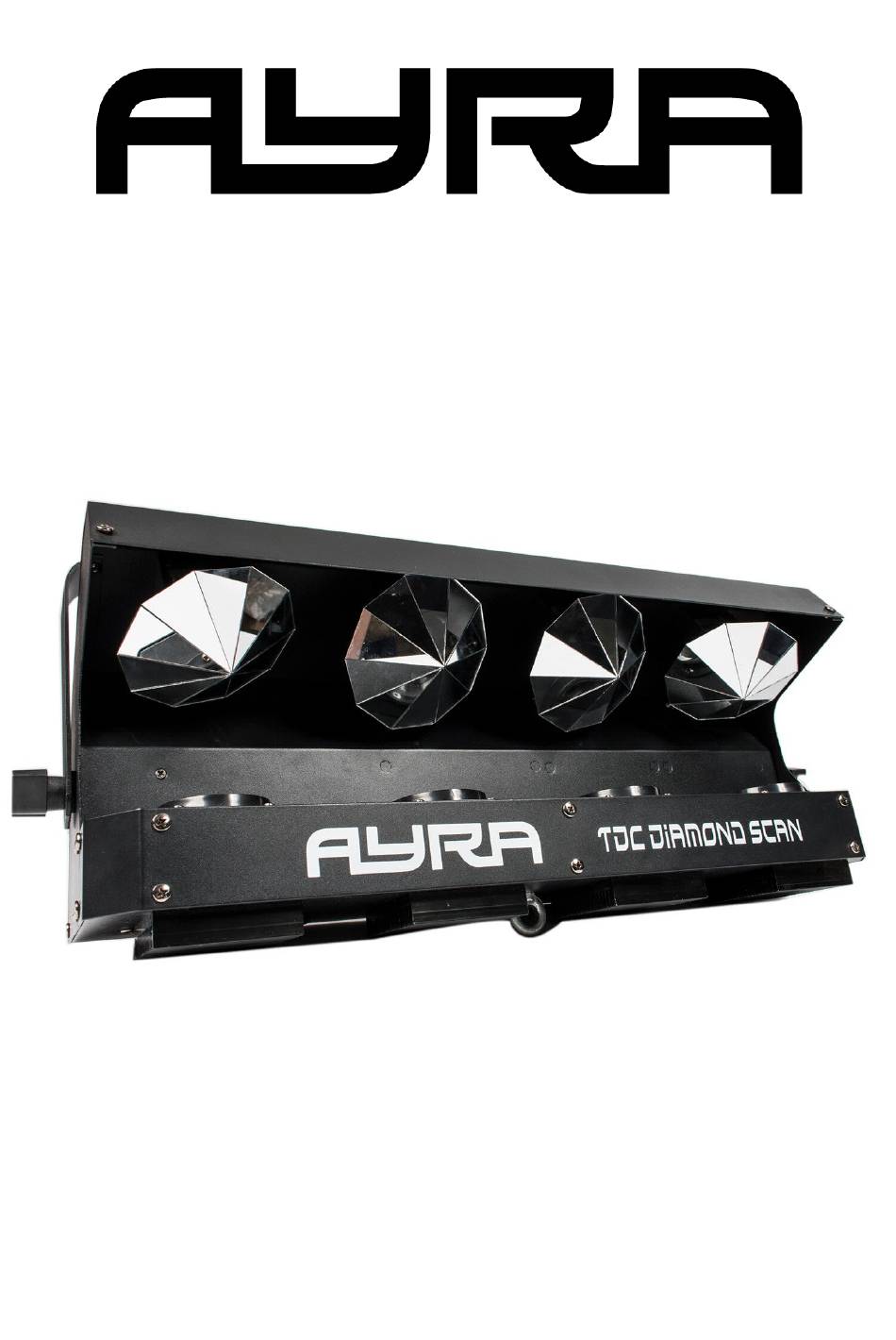

- Page 1 TDC Diamond Scan LED light effect User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 13-05-2015 RV Revision date + author initials:...
- Page 2 Introduction Thank you for purchasing the Ayra TDC Diamond Scan. This versatile lighting effect will raise the party mood with the several coloured LED light sources and the rotating mirrors that aim every beam of light in a different direction. This user manual provides you with all the information you need to make the most of this device.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specific AC current. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful while operating of this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in ways other than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
-
Page 5: Symbol Clarification
Indoor use only: This device is designed to be used indoors only. The maximum environmental temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit) Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address. If you wish to return a product for a refund or repair, please contact your local dealer for an RMA (Return Material Authorisation) All information and illustrations shown in this user manual are subject to change without further notice. -
Page 6: Box Contents
Box contents Box contents 1x TDC Diamond Scan fixture 1x Power cable IEC C13 to Schuko (3x 1mm²) 1x Power cable IEC C13 to UK (3x 1mm²) Unit and accessory inspection - If the cable appears broken or has visible damage, do not use it. -
Page 7: Device Overview

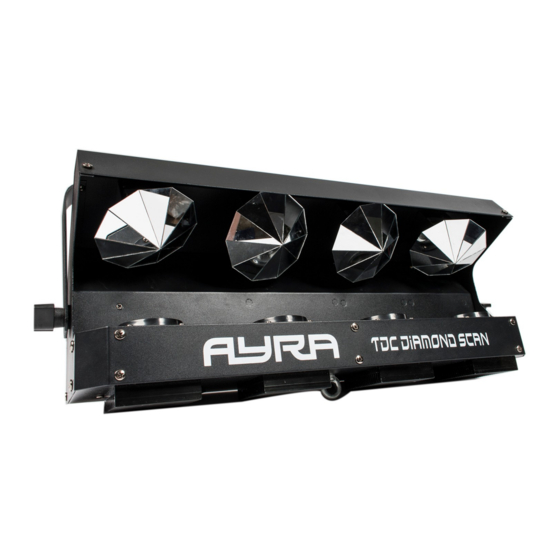

Device overview 1. Moving mirrors 2. Light output (lens) 3. Mounting bracket tightening knob 4. Safety eye 5. Cooling heatsink 6. Power input + device fuse 7. Power link output 8. Menu display with control buttons 9. Microphone for sound controlled mode 10. -
Page 8: Setting Up The Unit
30 seconds. During start- up the display reads 'AYRA' and the fixture cannot be used. Do not try to enter the menu during start-up. - Page 9 NOTE: Please note that it is not possible to switch to another operating mode if the Slave mode is active on your fixture! SHND: Select one of the built-in shows for the music controlled mode. Please note that the Sound State needs to be deactivated for this function to be used effectively.
-
Page 10: Operating Modes
DMX: The TDC Diamond Scan can be connected to a DMX controller using a standard 3p XLR male – XLR female cable. In DMX mode, a DMX terminator must be connected to the last fixture at the end of the DMX chain to prevent reflections in the DMX signal, which could cause flickering and unwanted behaviour from your intelligent fixtures. - Page 11 5CH mode: Function Values Movement programs 000 - 009 No function 010 - 027 Movement show 1 028 - 047 Movement show 2 048 - 067 Movement show 3 068 - 087 Movement show 4 088 - 107 Movement show 5 108 - 127 Movement show 6 128 - 147 Movement show 7 148 - 167 Movement show 8...
- Page 12 042 - 057 B 058 - 074 W 075 - 090 R + G 091 - 107 R + B 108 - 123 R + W 124 - 140 G + B 141 - 156 G + W 157 - 173 B + W 174 - 189 R + G + B 190 - 206 R + G + W 207 - 222 R + B + W...
-
Page 13: Standing Installation
Installation and connection requirements The Ayra TDC Diamond Scan is a versatile product and can be used in many ways. To use this device as intended and to be sure that the product is used in a safe way, the following requirements must be met during the set-up, installation and connection of the device. - Page 14 The TDC Diamond Scan is equipped with a fuse for its own components. The power input of the device is directly linked to the power output of the device. XLR input and output The TDC Diamond Scan is equipped with XLR chassis connectors. The DMX input is usually connected with an XLR cable that has a locking mechanism so it can not be pulled from the chassis too easily.
- Page 15 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequently encountered problems and is not a complete collection of possible faults, defects and solutions.
- Page 16 of your DMX chain Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or fewer. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the DMX channel mode of DMX channels...
-
Page 17: Technical Specifications
Technical specifications powerful light effect with moving mirrors and bright LEDs razor sharp beams fill the room with colourful light amazing moving moonflower effects sweep through the entire room – 4 times! horizontal and vertical light coverage 4x 10W RGBW CREE LED on board diamond shaped moving mirrors, unique design! full room coverage thanks to unique mirror shape and motor axle-offset full control over every mirror and every LED!
