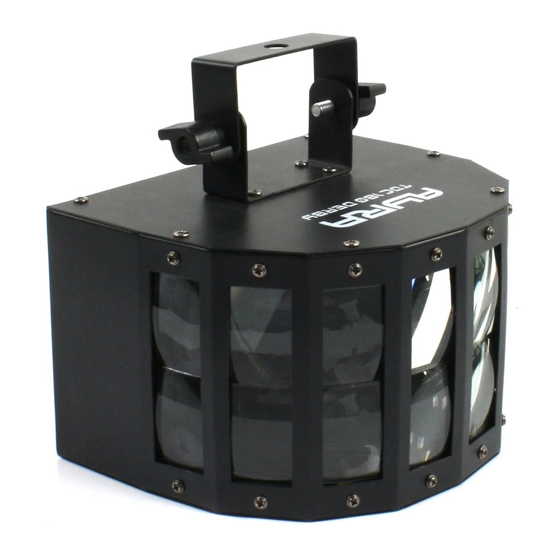

TDC 180 Derby
LED light effect
User manual
The information in this user manual is subject to change at any time without notice.
Version: 1.0
Date of creation and author's initials:18-02-2017 RV
Revision date and author's initials: -

Advertisement

loading
Need help?

Need help?

Do you have a question about the TDC 180 Derby and is the answer not in the manual?

Questions and answers

Summary of Contents for Ayra TDC 180 Derby

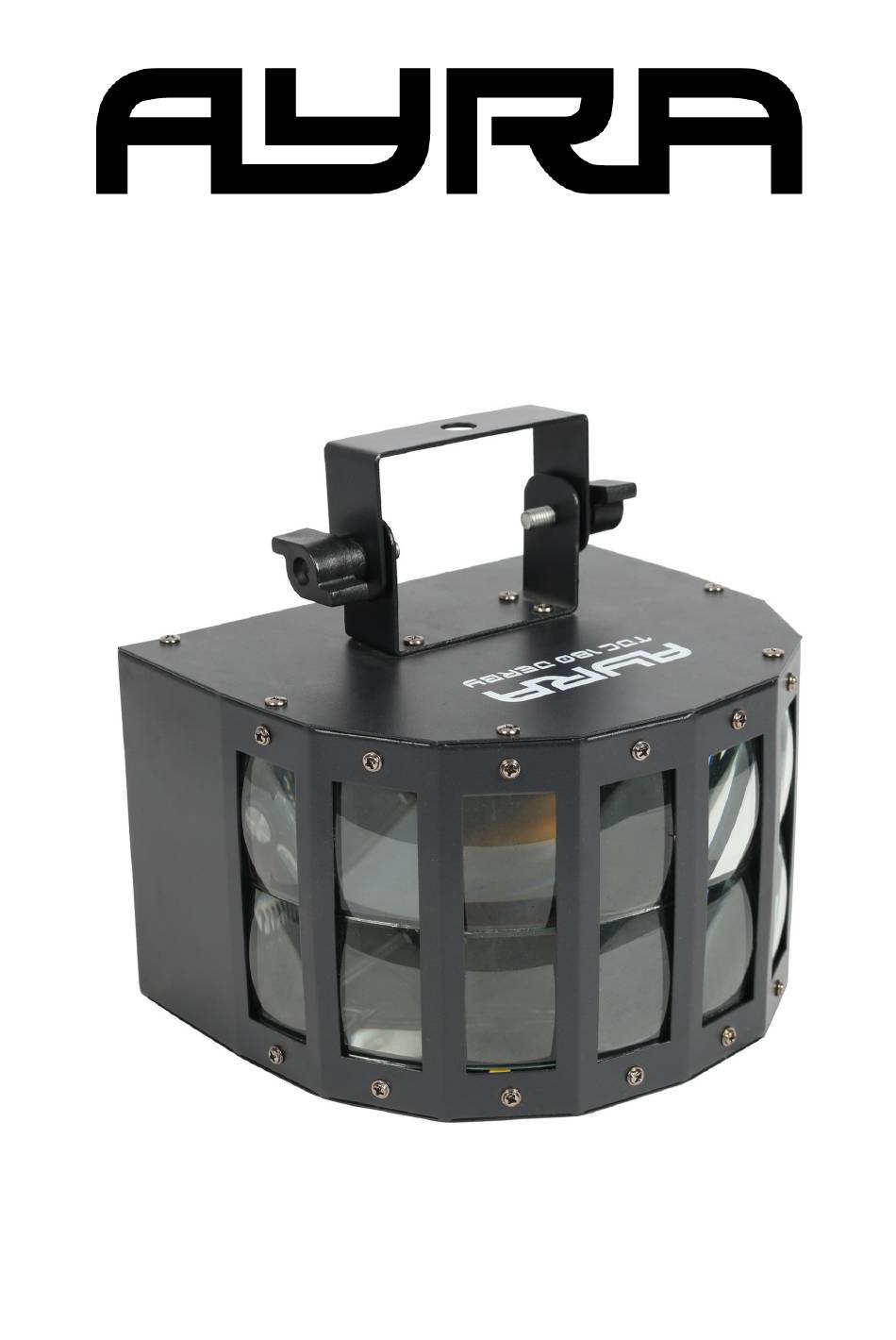

  • Page 1 TDC 180 Derby LED light effect User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:18-02-2017 RV Revision date and author's initials: -...
  • Page 2 Introduction Thank you for purchasing the TDC 180 Derby. This versatile light effect produces a wide beam angle that will fill any space with atmospheric, coloured moving light. This user manual offers you all the information you need to get started.
  • Page 3: Safety Instructions

    Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
  • Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
  • Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
  • Page 6 Guidelines and operation of this device 1. tightening knob mounting bracket 2. mounting bracket 3. power input + fuse holder 4. eyelet for optional safety cable 5. LED display with menu buttons 6. DMX output 3-pin XLR) 7. DMX input 3-pin XLR) 8.
  • Page 7 During calibration, ‘AYRA’ will be shown on the display, which means the device is not ready to be operated. Once the device has fully started up, it will jump to the last-used mode. Operation modes and other settings shown on the display can now be adjusted or changed by means of the menu buttons.
  • Page 8 In Slave 1 mode, the device will copy the exact signal directly from the Master. In Slave 2 mode, the Master signal will be copied partially in sound-controlled mode. PLEASE NOTE: When Slave mode is activated, the device will wait for a signal from the Master device. In this case it is not possible to simply select an automatic or sound-controlled mode! To cancel this, select 'NAST' mode in the SLND menu, so the device goes to Master mode.
  • Page 9 000-255 rotation (counter-clockwise) Power supply The TDC 180 Derby is equipped with a power input to supply the device with power, but also an output to supply power to other devices, which means you won't need power strips or other power distributors.
  • Page 10 Upright use Should you want to use the TDC 180 Derby in an upright position, make sure it's on a flat, stable surface like a table, DJ booth or bar. Suspended use (brackets) Should you want to suspend it, use the mounting bracket located on the top of the device.
  • Page 11 DMX lighting troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
  • Page 12 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The operation mode can not be The device is in Slave mode If the device is in Slave mode, it changed will wait for a master signal unless there is a DMX signal present.
  • Page 13: Technical Specifications

    Technical specifications Specifications: - compact LED-derby - light source: 2x 10W RGBW LED - lenses divided into 2 rows, 8 lenses per row - lenses positioned at 180-degree angle - all-metal housing - equipped with suspension bracket - various operation modes - Automatic mode with diverse programs - Sound-controlled mode with adjustable sensitivity - Master/Slave option...
