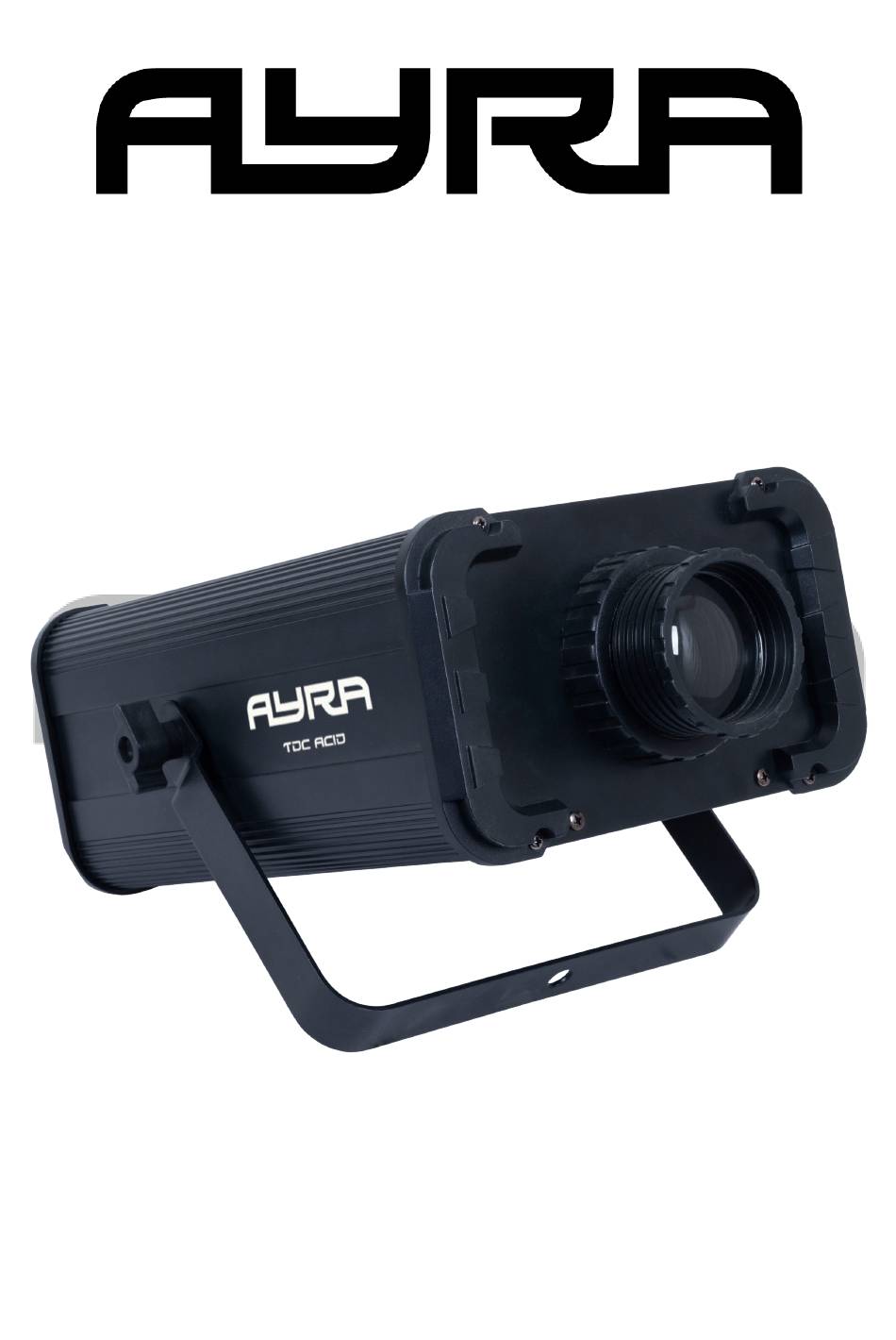

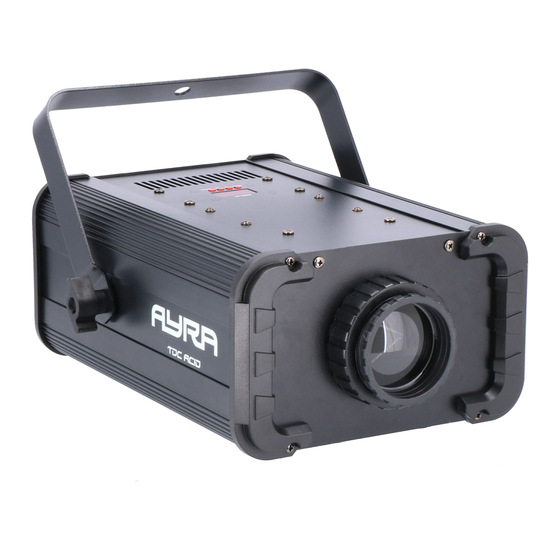

- Page 1 TDC Acid Kaleidoscopic Light Effect User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 2 'Box Contents' are included in the package. In the event that the Ayra TDC Acid does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your retailer for assistance.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of t h i s p r o d u c t .
- Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Operation Guidelines for this Device Suspension bracket with tightening knobs Power output via IEC C13 Power input via IEC C14 with fuse compartment Safety cable attachment point Microphone DMX input and output via 3-pins XLR LED Display with Menu buttons Ventilation fan Light Output with adjustable lens The information in this user manual is subject to change at any time without notice.
- Page 7 The device cannot be operated while it is still starting up and displays the ‘AYRA’ logo. Once the device has fully started up, it will automatically jump to the last mode and setting. Operation modes and other settings shown on the display can now be adjusted or changed via the menu buttons.
- Page 8 ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on. SLAV: Using the Master / Slave Mode, it’s possible to connect several devices of the same type with one another, via DMX 3-pin XLR cables so that they perform exactly the same movements and functions at the same time.
- Page 9 Operation Modes Please find a clear explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as sent signals, master signals or sound.
- Page 10 fast 246-255 Stop Gobo 000-063 Gobo selection 064-127 Gobo shake selection 128-189 Gobo wheel, clockwise rotation, fast to slow 190-193 Stop 194-255 Gobo wheel, anti-clockwise rotation, slow to fast The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
-
Page 11: Installation And Connection Instructions
Upright use When you want to place the TDC Acid in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The double suspension bracket is designed so that it can function as a stand. - Page 12 Power Output The TDC Acid is fitted with IEC C14 power input and an IEC C13 power output. This makes it possible to link multiple devices with one single power supply, wall socket or power block. The fuse fitted in this device is intended to protect that single device only. The input and output of the power supply are directly wired to each other.
- Page 13 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 14 Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 15: Technical Specifications
Technical Specifications Specifications: - Kaleidoscopic light effect - Rotating effects thanks to a Gobo wheel and prisma - Powerful 100 Watt white LED light source - Diverse operation modes for stand-alone (static or programmes) as controlled use (sound-controlled, automatic, Master / Slave, DMX) - DMX controlled via 4 DMX channels - DMX connection via 3-pin XLR inputs and outputs - LED Display with Menu buttons...
