Summary of Contents for Ayra ERO 3108

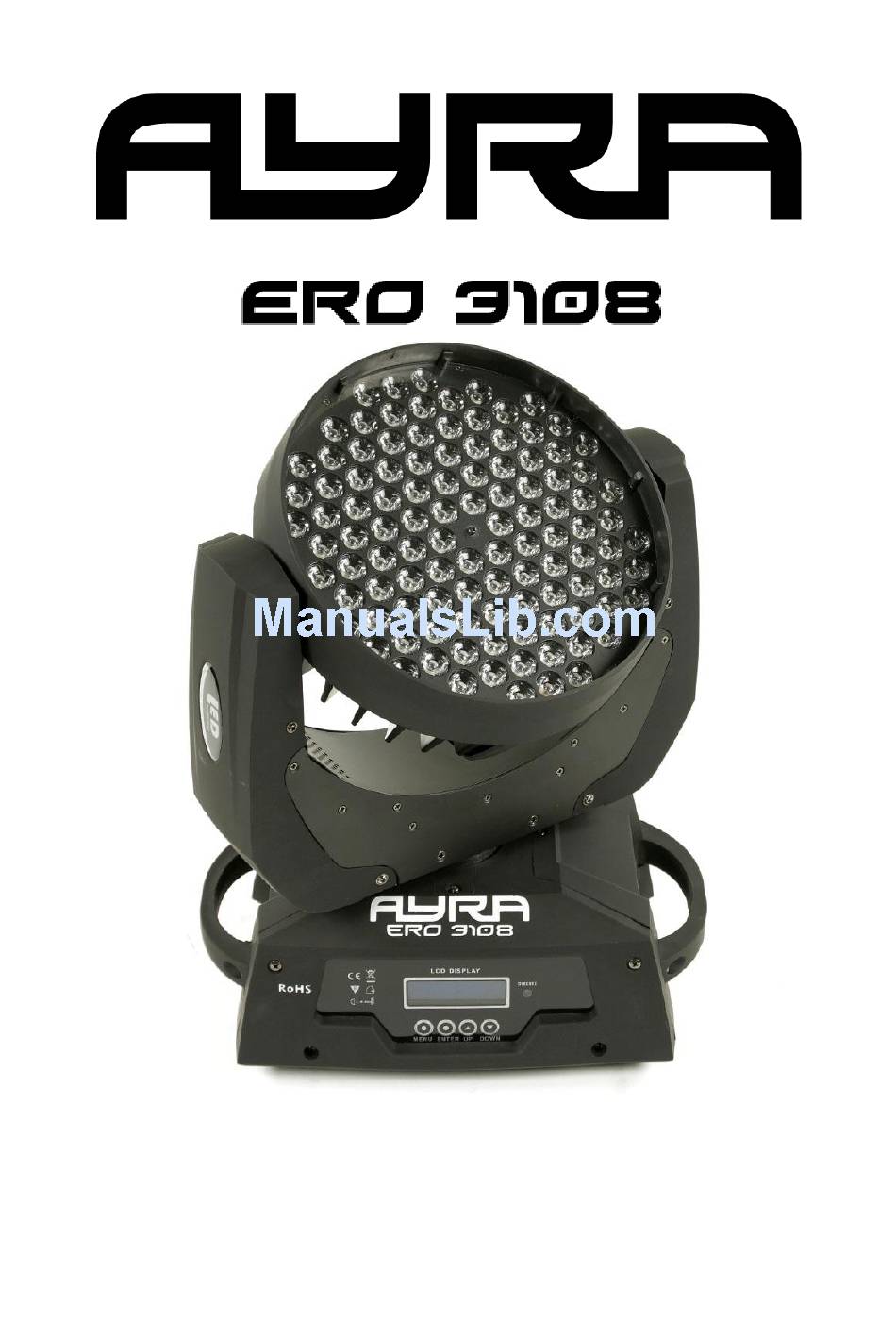

- Page 1 RGBW LED beam movinghead User manual...
-
Page 2: Safety Precautions
WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage. -
Page 3: Box Contents
Box contents Box contents 1x ERO 3108 movinghead 1x power cable 1x XLR-XLR signal cable 1x installing bracket 1x safety cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 4: Device Overview
Device overview 1. Beam output 2. Control panel with display and menu-functions 3. On/off switch 4. Fuse 5. Power input (Twist-lock connector) 6. DMX input 7. DMX output 8. Transport handles... -
Page 5: Setting Up The Unit
Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. Switch the on/off switch to the ‘ON’ position, the LED movinghead will activate. Give the movinghead time to calibrate the stepping motors, which are used to determine the position of the head. - Page 6 The ERO 3108 is equipped with several working modes, each with its own advantages. For simple events there are stand-alone modes, for advanced situations there are options to create synchronized lightshows, or controlled with a DMX-512 controller. A short description for each mode can be found...
- Page 7 Channel Function Value Description 0-255 Pan movement 8-bit Tilt 0-255 Tilt movement 8-bit Dimmer 0-255 Dimmer function 0-100% Strobe No function Strobe function Slow – Fast 7-65 66-69 No function Pulse strobe (Slow – Fast) 70-128 129-132 No function Strobe fade in (Slow – Fast) 133-191 192-195 No function...
-
Page 8: Installation And Maintenance
Installation and maintenance Mounting the bracket The included omega-type bracket is designed for this movinghead and makes it easy to mount en remove a mounting hook to your fixture. A G-clamp, halfcoupler or triggercoupler can be mounted to the omega bracket, which on his turn can be mounted to the fixture with quick-lock fastners. With a clockwise rotation of 90 degrees, the omega-type bracket is mounted to the fixture. - Page 9 Clean the fan outlet and the cooling vents with a small brush, while using vacuum cleaner suction to remove any loose dust and/or dirt. Clean the exterior of this fixture once a month. When using this fixture intensively, the frequency of maintenance needs to be increased.
-
Page 10: Technical Specifications
Technical specifications - RGBW LED beam movinghead - 108x 3 Watt high power Edison LEDs, spread over red (24), green (28), blue (28) and white (28) - expected lifespan LEDs: 50.000h - low power consumption - 8-bit smooth and precise pan and tilt movement - 540 or 630 degrees pan, 270 degrees tilt - scan position memory function with autocorrect - RGBW color mix system...
