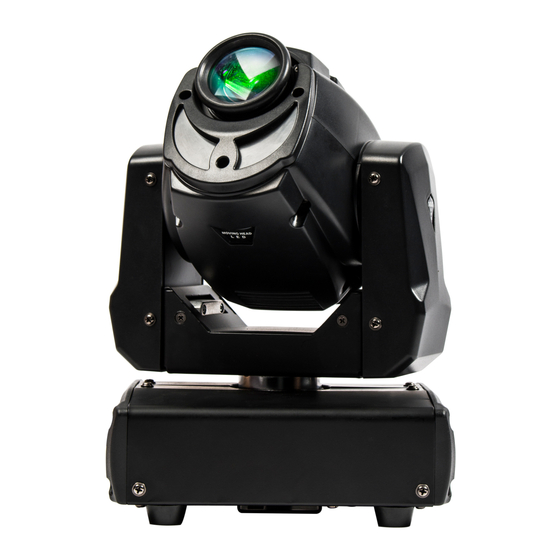

- Page 1 ERO 030 30W LED spot moving head User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 17-11-2015 RV Revision date + author initials: -...
- Page 2 (figurines) and a colour wheel which transforms the projected beams and can be adjusted to the preferences of the user while in DMX mode. The ERO 030 was designed as a party light and is often installed in party rooms, community centres, bars, dance studios, roller-skating rinks, bowling venues, etc.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specific AC current. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful while operating this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of this device in ways other than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
- Page 5 Indoor use only: This device is designed for indoor use only. The maximum ambient temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address. If you wish to return a product for a refund or repair, please contact your local dealer for an RMA (Return Material Authorisation) All information and illustrations shown in this user manual are subject to change without further notice.
-
Page 6: Box Contents
Box contents Box contents 1x Ayra ERO 030 LED spot moving head 1x hardware mounting pack (bracket + 2 bolts) 1x power cable IEC C13 to Schuko (3x 1.5 mm²) 1x power cable IEC C13 to UK (3x 1.5 mm²) Unit and accessory inspection - If the cable appears broken or has visible damage, do not use it. -
Page 7: Device Overview
Device overview 1. Lens, focus and optics 2. Head housing 3. Base housing 4. Arm housing 5. Base cooling fan 6. Display with menu buttons 7. IEC C13 + C14 power output and input 8. Fuse compartment 9. DMX output (3p XLR) 10. -
Page 8: Setting Up The Unit
Master/slave mode (sync mode): Connect two or more ERO 030 devices with a standard 3p male to 3p All information and illustrations shown in this user manual are subject to change without further notice. - Page 9 female XLR cable (not included in delivery). The first device will act as a Master fixture, the second system will mimic the actions of the first system, thus creating synchronised effects. The first device needs to be set in auto or sound mode, the slaves need to be set to DMX address 001. To ensure that this function works properly, connect the DMX OUT connector of the first system to the DMX IN connector of the second system.
- Page 10 140-149: Split colour 5 (6+5) 150-159: Split colour 6 (5+4) 160-169: Split colour 7 (4+3) 170-179: Split colour 8 (3+2) 180-189: Split colour 9 (2+ 1) 190-191: Split colour 10 (1+ White) 192-223: Colour scroll clockwise fast-slow 224-255: Colour scroll counter clockwise slow-fast Shutter 000-002: Open 002-255: Strobe slow-fast...
-
Page 11: Installation And Maintenance
The ERO 030 can be installed directly to a T-bar or truss system. A coupler can be mounted to the bracket of the ERO 030, ensuring that the device is installed properly. Please use proper couplers, such as half couplers or G-clamps. - Page 12 The lenses can be cleaned with a non-aggressive glass cleaning solution, but this is not recommended. Ayra advises cleaning the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum cleaner.
- Page 13 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the problems with your product. If this section does not include the solution to your problem, contact your dealer for more information and help. This troubleshooting section contains only the most frequently encountered problems and applies to DMX controllers, DMX cabling and DMX lighting fixtures.
- Page 14 values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the DMX channel mode of DMX channels the fixture. If it is set to the wrong value, change the channel mode to a different setting and try again.
-
Page 15: Technical Specifications
0-40º Celsius Exterior surface temp: 42º Celsius Included accessories: Ayra ERO 030 LED spot movinghead hardware mounting pack (bracket + 2 bolts) 1 power cable IEC C13 to Schuko (3x 1.5 mm²) 1 power cable IEC C13 to UK (3x 1.5 mm²)
