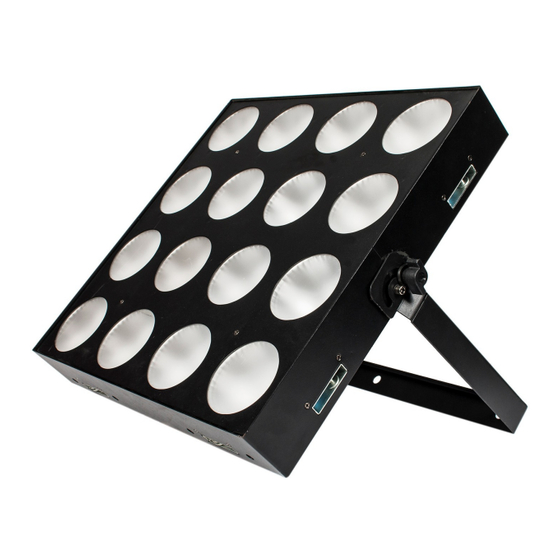

- Page 1 IntenZ CB600 4x4 RGB COB LED Matrix panel User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 13-05-2015 RV Revision date + author initials:...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specific AC current. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
-
Page 4: Symbol Clarification
Indoor use only: This device is designed to only be used indoors. The maximum environmental temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit) Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address. If you wish to return a product for a refund or repair, please contact your local dealer for an RMA (Return Material Authorisation) All information and illustrations shown in this user manual are subject to change without further notice. -
Page 5: Box Contents
Box contents Box contents 1x Ayra IntenZ CB600 fixture 1x Neutrik Powercon to Schuko cable (3x 1.5mm²) 1x Neutrik Powercon to UK cable (3x 1.5mm²) 1x Neutrik Powercon to Neutrik Powercon link cable (3x 1.5mm², 3 meters) 1x hardware pack with mounting brackets, tightening knobs and rings... -
Page 6: Device Overview
Device overview 1. Beam output 2. Hanging bracket 3. Heatsinks 4. Cooling fan section 5. Display with menu buttons + microphone 6. Power output 7. Power input 8. Fuse compartment 9. Power on/off 10. DMX input (3p) 11. DMX output (3p) 12. -
Page 7: Setting Up The Unit
During start-up, the device needs to calibrate. This may take up to one minute. During start-up the display reads 'AYRA' and the fixture cannot be used. Do not try to enter the menu during start-up. When the start-up is complete, the last used mode will be shown and the settings and values can be changed. For a new product, this is usually the DMX mode with the value set to 001. - Page 8 SHND: Select the correct Show mode if you are going to use the master/slave mode with multiple fixtures, where each fixture needs to receive the right signal. The Show modes are optimized for 2, 4 or even 16 fixtures, which will work together seamlessly if mounted in the right order. (Explained further on in this user manual) SOUN: The sound state shows if the built-in microphone of the unit is active or not.
-
Page 9: Operating Modes
Operating modes The IntenZ CB600 offers various operating modes, each with its own advantages. For simple events there are stand-alone modes, and for advanced situations it's possible to create synchronised light shows. You can also control every feature of the CB600 via DMX in various channel modes. A short description for each mode... - Page 10 DMX: The IntenZ CB600 can be connected to a DMX controller with standard 3p and 5p XLR male – XLR female cable. In DMX mode, a DMX terminator must be connected to the last fixture at the end of the DMX chain to prevent reflections in the DMX signal, which could cause flickering and unwanted behaviour from your intelligent fixtures.
- Page 11 4CH mode: Function Values Red dimmer 0-100% 000-255 0-100% Green dimmer 0-100% 000-255 0-100% Blue dimmer 0-100% 000-255 0-100% Master dimmer 0-100% 000-255 0-100% 6CH mode: Function Values Red dimmer 0-100% 000-255 0-100% Green dimmer 0-100% 000-255 0-100% Blue dimmer 0-100% 000-255 0-100% Colour macro 008-255 colour selection...
- Page 12 CH15 Colour macro head 15 000-007 no function 008-255 colour selection CH16 Colour macro head 16 000-007 no function 008-255 colour selection 18CH mode: Function Values Colour macro head 1 000-007 no function 008-255 colour selection Colour macro head 2 000-007 no function 008-255 colour selection Colour macro head 3...
- Page 13 49CH mode: Function Values CH 1, 4, 7, 10, 13, 16, Red dimmer 0-100% 000-255 0-100% 19, 22, 25, 28, 31, 34, 37, 40, 43, 46 CH 2, 5, 8, 11, 14, 17, 20, Green dimmer 0-100% 000-255 0-100% 23, 26, 29, 32, 35, 38, 41, 44, 47 CH 3, 6, 9, 12, 15, 18, Blue dimmer 0-100%...
-
Page 14: Standing Installation
Installation and connection requirements The IntenZ CB600 is a versatile product and can be used in many ways. To use this device as intended and to be sure that the product is used in a safe way, the following requirements must be met during the setup, installation and connection of the device. - Page 15 Transport and storage The IntenZ CB600 can be transported directly after shut-down. As the light sources of the fixture do not need time to cool down, the device can be stored and transported instantly. During transport, the device must be securely protected to ensure it stays reliable and in optimal shape.
- Page 16 The IntenZ CB600 is equipped with a fuse for its own components. The power input of the device is directly linked to the power output of the device.
- Page 17 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 18 of your DMX chain Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or fewer. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the DMX channel mode of DMX channels...
-
Page 19: Technical Specifications
Technical specifications 4x4 30W COB matrix wash/blinder panel intense projection, unlimited colour options! Features 16 30W RGB COB LED chips with reflector and milky cover technology for optimal wash projection optimal projection of rich and vivid colours through COB LED technology multiple operating modes hardware coupling options to create large-scale, low-resolution video walls! (Tool included) included one swivel U-bracket and two small U-brackets...
