- Page 1 TDC Flower Power LED Flower Light Effect User Manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...

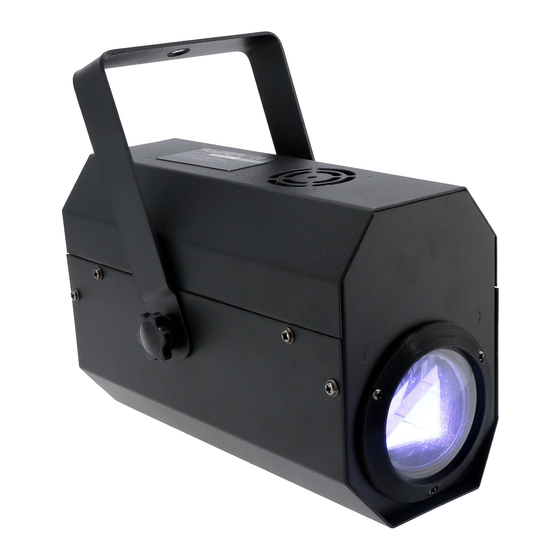

- Page 2 Introduction Thank you for purchasing the Ayra TDC Flower Power. This versatile light effect is fitted with a colour-filled light source and specially designed, rotating optics capable of throwing hundreds of light beams across the room. This manual provides all the information you need to know about the product before you start using it.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Suitable for indoor use only: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Operation Guidelines for this Device Light Output Suspension bracket LED Display with Menu buttons DMX input via 3-pin XLR DMX output via 3-pin XLR Power input with fuse compartment The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
- Page 7 Operation and Mounting To activate the device, plug it into a mains socket. Once it's connected to an active power source, it will turn on automatically. The device cannot be operated while it is still starting up and the Menu screen displays ‘rST’. Once the device has fully started up, it will automatically jump to the last mode and setting.
- Page 8 An explanation of all available functions can be found below: ADDR: With this function, you can determine the DMX start address of the device. Set it channel 001, and the device will respond to DMX channel 1. Set it to channel 003, then the device will respond to DMX channel 3 and so on.
- Page 9 HOUR: If this device is used professionally or rented, it should be regularly maintained and inspected in between use. The HOUR function shows exactly how long the device has been in use. This amount accumulates over time as long as the device is being used and cannot be manipulated by the user. VER: Here, the current firmware version is displayed.
- Page 10 Operation Modes Please find a clear explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 11 White 0-100% 000-255 The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials: 07-10-2019 RV Revision date and author's initials: -...
-
Page 12: Installation And Connection Instructions
When you want to place the TDC Flower Power in an upright position, make sure that the device is placed on a stable surface such as a table, DJ booth or bar. The TDC Flower Power is not fitted with rubber feet to grip the ground and stabilise the device. - Page 13 Parts and repairs This product does not include spare parts and can not be repaired by the user. Any inspections and overall maintenance should be carried out by a specialist only. Cleaning and maintenance Clean the exterior of this device on a monthly basis with a dry, or slightly damp microfibre cloth. Ensure that the device is unplugged before cleaning it.
- Page 14 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 15 Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
-
Page 16: Technical Specifications
Technical Specifications Features: - LED Flower Power light effect - Rotating optics for special light rays - 25W RGBW LED light source - LED Display with Menu buttons - Diverse operation modes - Automatic modes - Sound / Music-Controlled mode with adjustable sensitivity - Master / Slave function - DMX controlled via 8 channels...
