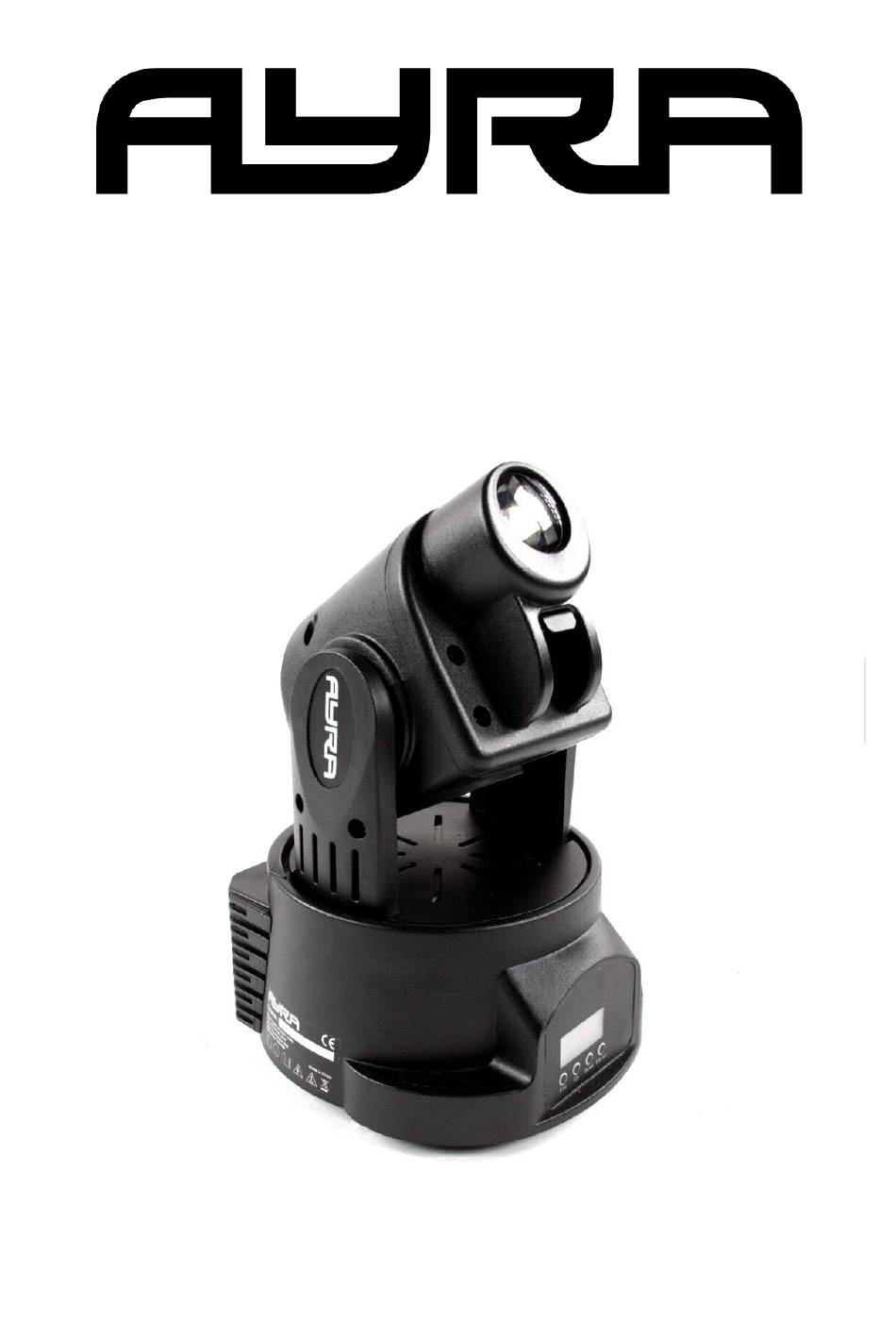

ERO 540 MKII
RGB LED movinghead
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0
Creation date + author initials: 03-01-2014 RV Revision date + author initials: 28-07-2014 RV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERO 540 MKII and is the answer not in the manual?

Questions and answers

Related Manuals for Ayra ERO 540 MKII

Summary of Contents for Ayra ERO 540 MKII

  • Page 1 ERO 540 MKII RGB LED movinghead User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 03-01-2014 RV Revision date + author initials: 28-07-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.
  • Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 03-01-2014 RV Revision date + author initials: 28-07-2014 RV...

  • Page 5: Box Contents

    Box contents Box contents 1x ERO 540 MKII movinghead 1x power cable to Schuko 1x installing bracket 1x small bag with mounting hardware Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 6: Device Overview

    Device overview 1. Beam output 2. Control panel with display and menu-functions 3. Adjustable manual focus 4. Cooling fan head 5. IEC power inlet 6. DMX input 7. DMX output 8. Safety eye This unit is equipped with an adjustable focus, which makes it possible to sharpen the beam when used at a small or large distance.

  • Page 7: Setting Up The Device

    Setting up the device To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The unit will activate directly after it is plugged in to a wall outlet or other power source. Give the movinghead time to calibrate the stepping motors, which are used to determine the position of the head.
  • Page 8 The ERO 540 has two DMX modes, one for basic control (5 channels), the other for extended control (13 channels). The following table shows the DMX charts, with the several channels and a function for each channel. 5-CH DMX mode DMX values Description 0 –...

  • Page 9: Additional Information

    Ayra can not be held responsible for any damage or injuries caused by improper installation. Focus The ERO 540 MKII movinghead is equipped with an adjustable focus system. This focus system is positioned directly below the lens and makes it possible to sharpen the projection of gobos and spot figures.
  • Page 10 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 11 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.

  • Page 12: Technical Specifications

    Technical specifications Compact movinghead using a RGB LED light source Light source: 15 Watt RGB LED chip Lifespan LED module: +/- 50.000 h Pan range: 540 degrees max. Tilt range: 270 degrees max. Modes: stand-alone, music controlled, master/slave, DMX Built-in stand-alone programs Built-in music controlled programs DMX-control with 5 or 13 DMX-channels Gobowheel: 9 gobo’s + open...
