Table of Contents

LED Tri-Bar 12
High power LED pixel bar
User manual
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0
Creation date + author initials: 02-02-2015 RV Revision date + author initials: 02-02-2015 RV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Tri-Bar 12 and is the answer not in the manual?

Questions and answers

Related Manuals for Ayra LED Tri-Bar 12

Summary of Contents for Ayra LED Tri-Bar 12

  • Page 1 LED Tri-Bar 12 High power LED pixel bar User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 02-02-2015 RV Revision date + author initials: 02-02-2015 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra can not be held responsible for any damage or injury caused by improper use.

  • Page 4: Symbol Clarification

    going to be serviced. Fuses: - The main fuse of this device can be found on the rear of the device, usually next to the power inlet. - Only replace the fuse for a new one of the same type and rating! Do not use a fuse with a higher or lower rating.

  • Page 5: Box Contents

    40 degrees Celsius (104 degrees Fahrenheit) Box contents Box contents 1x LED Tri-Bar 12 fixture 1x power cable IEC C13 to Schuko (3x 1mm²) 1x power cable IEC C13 to UK plug (3x 1mm²) 1x hardware pack containing 2 brackets and 2 tightening knobs Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply.

  • Page 6: Device Overview

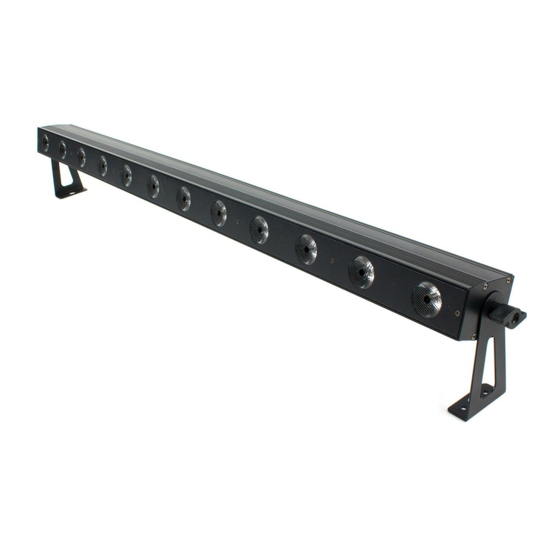

    Device overview 1. Beam output 2. Adjustable bracket 3. Tightening knob 4. Safety eyelet for safety cable attachment 5. Built-in microphone for sound-activated mode 6. Menu display with control buttons 7. Power link (IEC C13 chassis) 8. DMX out (3p XLR) 9.

  • Page 7: Setting Up The Unit

    The fixture will start up and show the last chosen setting on the display. For a new product, this is usually the DMX mode with the value set to 001. During start-up the display reads 'Ayra'. After this, the last used mode will be shown and the settings and values can be changed.
  • Page 8 and hold the menu button for 2 seconds to return to the main screen and activate the new values. SHn2: Show mode 2, which is the set colour mode. When this mode is selected, the internal programs of the bar are run in a standard order. But as opposed to the first show mode, users can select 1 basic colour with the COL mode (1-7) and the speed (0-9).

  • Page 9: Operating Modes

    DMX: The LED Tri-Bar 12 can be connected to a DMX controller with standard 3p XLR male – XLR female cable. In DMX mode, a DMX terminator must be connected to the last fixture at the end of the DMX chain, to prevent reflections in the DMX signal, which could cause flickering and unwanted behaviour from your intelligent fixtures.
  • Page 10 3CH1 mode (RGB mode): 000-255 Dimmer red 0-100% 000-255 Dimmer green 0-100% 000-255 Dimmer green 0-100% 3CH2 mode (Show mode): 000-100 Standard shows Standard show selection + Special show 100-255 Special shows selection 000-255 Speed selection, applies to both show modes Speed selection slow-fast Colour select (only applies when channel 1 value is Colour select 1-7...
  • Page 11 12CH mode: 000-010 no value Colour select pixel 1 011-255 colour selection 000-010 no value Colour select pixel 2 011-255 colour selection 000-010 no value Colour select pixel 3 011-255 colour selection 000-010 no value Colour select pixel 4 011-255 colour selection 000-010 no value Colour select pixel 5 011-255 colour selection...
  • Page 12 36CH mode: 000-255 Dimmer pixel 1 red 0-100% 000-255 Dimmer pixel 1 green 0-100% 000-255 Dimmer pixel 1 blue 0-100% 000-255 Dimmer pixel 2 red 0-100% 000-255 Dimmer pixel 2 green 0-100% 000-255 Dimmer pixel 2 blue 0-100% CH31 000-255 Dimmer pixel 11 red 0-100% CH32 000-255...

  • Page 13: Standing Installation

    Installation and connection requirements The Ayra LED Tri-Bar 12 is a versatile product and can be used in many ways. To use this device as intended and to be sure that the product is used in a safe way, the following requirements must be met during the setup, installation and connection of the device.
  • Page 14 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 15 of your DMX chain Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the DMX channel mode of DMX channels...

  • Page 16: Technical Specifications

    Technical specifications powerful LED pixel bar with 12x 3W RGB Tri-LED light source compact fixture with robust aluminium housing energy-efficient design, power consumption of 50 W max. honeycomb lens for optimal brightness and colour mixing, 5,800 lumens @ 1 m, 3,800 lumens @ 2 over 1 million colour combinations, with RGB LEDs DMX, automatic, master/slave and sound-controlled operating modes - DMX mode with 1CH / 3CH1 / 3CH2 / 4CH / 6CH / 7CH / 13CH / 36CH settings...
  • Page 17 Connectors and wiring schematics: DMX connectors: Electrical wiring: All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 02-02-2015 RV Revision date + author initials: 02-02-2015 RV...
