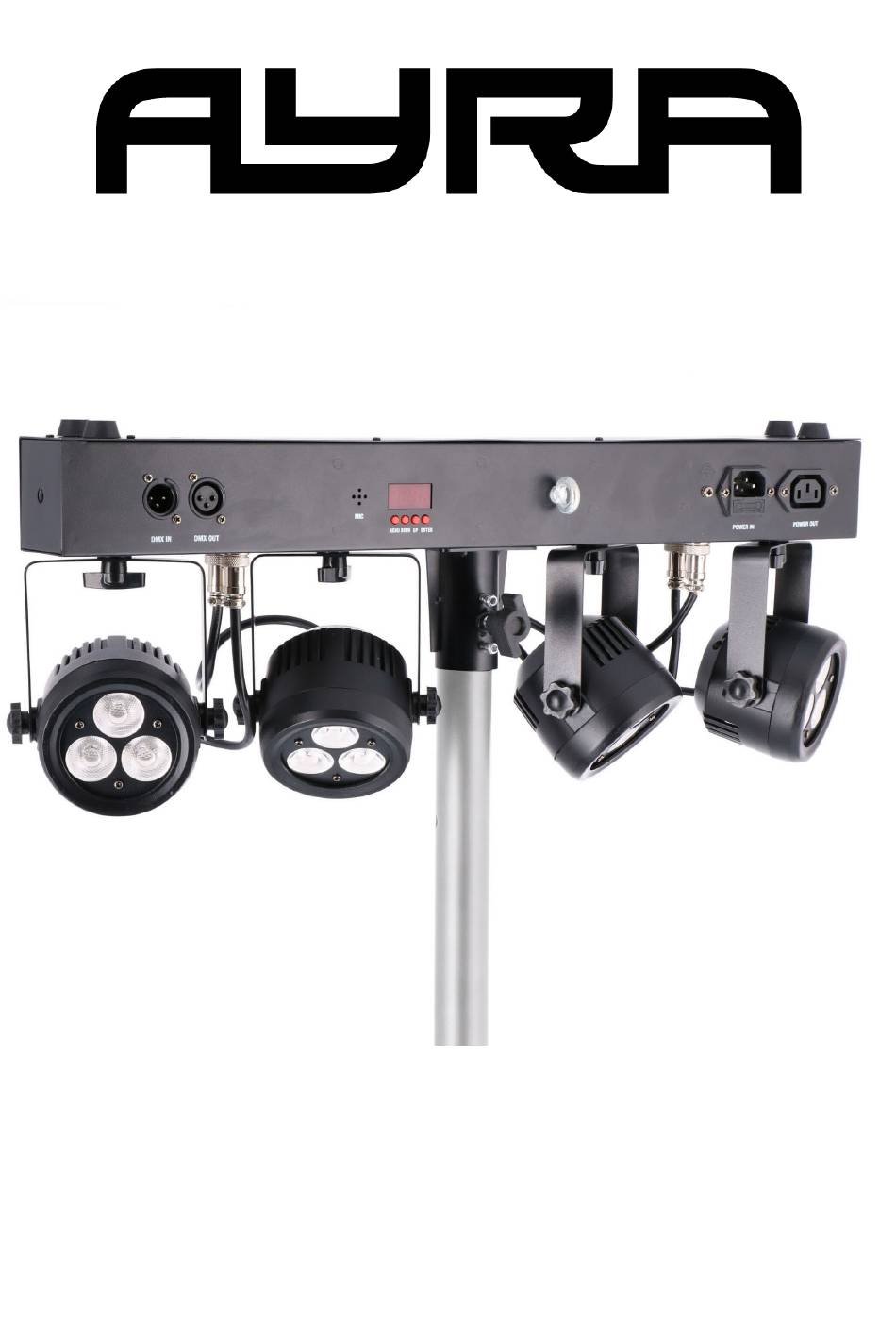

- Page 1 Compar Kit Jr. Compact LED Lighting Set User Manual The information included in this manual is subject to change at any time and without notice Version: 1.0 Date and Author Initials: 17-02-2020 RV Revision Date and Author Initials: -...
- Page 2 Introduction Thank you for purchasing the Ayra Compar Kit Jr. This highly versatile lighting system consists of powerful RGBW LED chips installed in adjustable spot lights. This manual offers all the information needed to get the very best out of your new lighting set.
- Page 3 Safety Instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks! WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
- Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Symbol explanation: Ensure that this device is disposed of properly. This product falls under the WEEE (Waste Electrical and Electronic Equipment) directive. The requirements of this directive apply to all manufacturers and producers of electronic devices in the EU. Do not throw this product away with regular rubbish.
- Page 6 When batteries are correctly recycled, they are valuable source of reusable materials. Contact your local council or government for information about the safe disposal and recycling of batteries. Contact: Ayra Professional Lighting Products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any physical products to this correspondence address.
- Page 7 (Return Merchandise Authorisation) The information included in this manual is subject to change at any time and without notice Version: 1.0 Date and Author Initials: 17-02-2020 RV Revision Date and Author Initials: -...

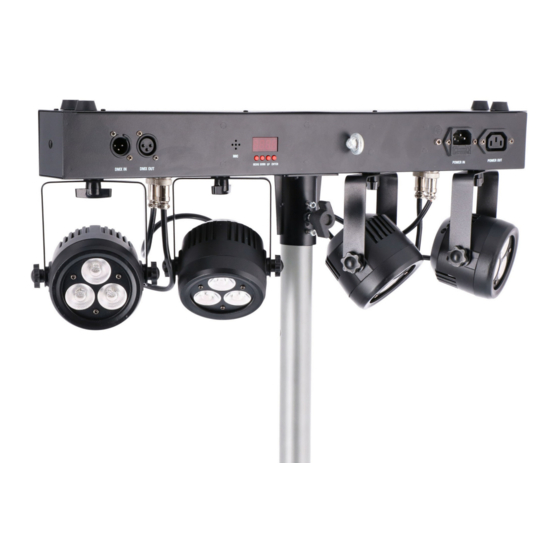

- Page 8 Operation Guidelines 1. Light output 2. DMX output via 3-pin XLR 3. DMX input via 3-pin XLR 4. Microphone 5. Power input via IEC C14 6. Power output via IEC C13 7. Safety eyelet 8. LED display with menu buttons 9.
- Page 9 During the start-up process, ‘AYRA’ will be displayed on the integrated menu screen and the device cannot be operated yet. Once the start-up process has been completed, the device will jump to the last used mode and from here, the various settings and modes can now be adjusted using the display and menu buttons.
- Page 10 selected. It is also possible to select a more extensive channel mode, making more channels available for the control of several separate functions. MASL: Using the Master / Slave Mode, it’s possible to connect several devices of the same type with one another via DMX 3-pin XLR cables so that they perform exactly the same movements and functions at the same time.
- Page 11 Operation Modes Please find a more detailed explanation of the differences between all available Operation Modes below and how they are affected by the menu functions listed above. Auto: In Auto Mode, you can select one of the Operation Modes in which the device is not dependent on external factors such as DMX signals, master signals or sound.
- Page 12 6CH Mode: Function Value Master dimmer 000-255 (0-100%) Strobe channel 000-005 LED on 006-255 strobe slow-fast Playback colour selection 000-255 colour selection Background colour selection 000-255 colour selection Show selection 000-030 Open 031-080 Show 1 081-105 Show 2 106-130 Show 3 131-155 Show 4 156-180 Show 5 181-205 Show 6...
- Page 13 18CH Mode: Function Value Master dimmer 000-255 (0-100%) Strobe channel 000-005 LED On 006-255 strobe slow-fast Dimmer red 1 000-255 (red 0-100%) Dimmer green 1 000-255 (green 0-100%) Dimmer blue 1 000-255 (blue 0-100%) Dimmer white 1 000-255 (white 0-100%) Dimmer red 2 000-255 (red 0-100%) Dimmer green 2...
- Page 14 Please note: The included remote control also has an ‘A’ and ‘UV’ button that has no function when used to operate the Compar Kit Jr. The remote control battery can be replaced with any standard CR2025 type battery. The battery can be swapped by first removing the battery cover on the underside of the remote control.
- Page 15 Installation and Connection Instructions Now you know about everything that the Compar Kit Jr. can do and how it operates. So that you get the very best out of your kit while using it in the safest way possible, please follow these installation and connection instructions closely.
- Page 16 Parts and Repairs This product does not include spare parts and can not be repaired by the user. Any inspections and overall repairs or maintenance should be carried out by a specialist only. Cleaning and Maintenance Clean the exterior of this device on a monthly basis with a dry, or slightly damp microfibre cloth. Ensure that the device is unplugged before cleaning.
- Page 17 DMX Lighting Troubleshooting If you have a problem with your DMX light effect, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your retailer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 18 terminator Signal loss or interference in the Close the DMX circuit with a DMX circuit terminator or connect a booster after maximum 32 fixtures. The device is not reacting properly Incorrect DMX channel mode Check that the correct DMX to DMX commands channel mode is set The operation mode can not be The device is in Slave mode...
- Page 19 Technical Specifications Basic Features: - Compact LED lighting set - Electronic bar with four independently adjustable spots - Can be installed standing or suspended - Energy efficient LED technology - Power sharing function for daisy-chaining - Various operation modes - Included IR remote control - 4-digit menu display with various adjustable functions Technical Specifications: - 3x 3W RGBW LED light sources per spotlight...
