AES 603AB Installation Manual

Ver 3
1200 keypad model

Installation

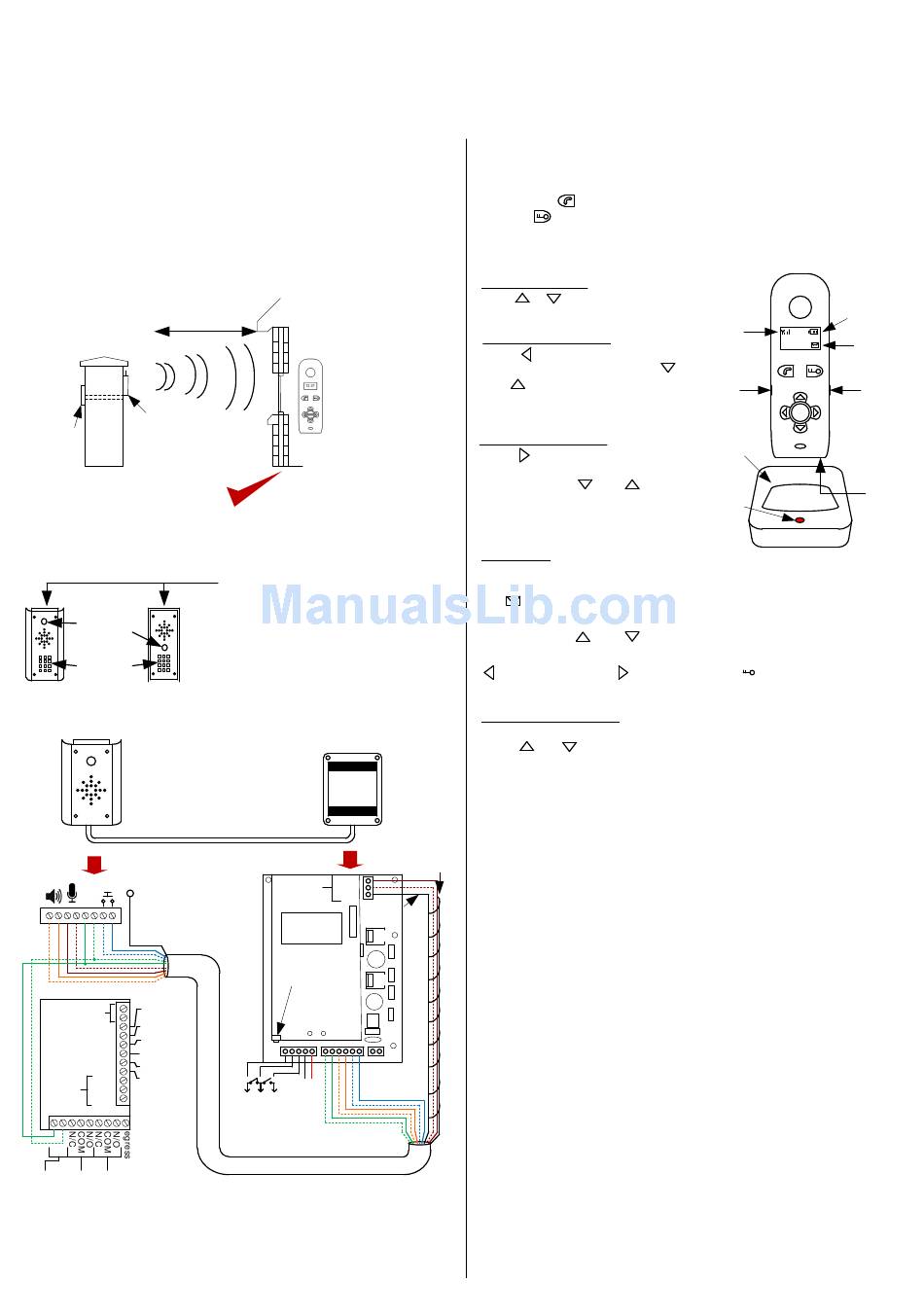

1) Before installing fully, test the range of the system. Wire the unit as per
wiring diagram, place the equipment in the desired location and test
operation.
2) Ensure that the gate transmitter / receiver unit is installed to facilitate
line of sight with the property or reception area. To achieve best results,
mount the unit as high as possible from the ground. Should you need to
extend range, you can mount it on a small pole to elevate it a few meters
from the ground.
Entrance
Pillar
Transmitter / receiver - Keep
Speech
away from ground, as high as
Unit
possible. For best results, do
not install too close to sources
of electrical interference e.g.
gate automation panel
3) It is recommended to charge the handset for 7-8 hours before use.
4) Power up the handset after inserting the batteries.
5) Wire the door station and transmitter / receiver according to the diagram
below..
Call Button
Optional keypad
module
ARCHITECTURAL HOODED
MODEL MODEL
Mount AB model
to wall with
10mm x 50mm
large wall
anchors to
prevent removal
or theft.
Screened CAT 5
(keep short for better audio)
12v
Note: For improved audio
dc
performance, the shield
+ - + -
wire can be connected to
bolts on metal housing of
speech panel.
Tamper INT Lock
N/C
O/P1 inhib
Sense
(-)GND
DU out
N/O K or A
OUT3 COM
N/C
-
+
12-24v OUT1 OUT2
dc
Keypad Connections
(ABK model)
Note: Keypad volt free output(s) needs connected to gate control panel or electric door
lock as well as relay output from the intercom controller PCB. Parallel connect C and N/O
contacts for electric gate controller or strike lock. Series connect C and N/C contacts for
magnetic lock.
Installation Manual
603AB, 603ABK, 603HB, 603HBK Wireless Intercom System
House or
reception
150m
area
Typical
For longer range
applications, locate the
handset near a window at
front of property.
Note: Wood and glass only
reduce signal strength by
10-20%. Masonry will reduce
signal strength by 20-50%
per wall. Metal can totally
block signals.
3) Remove the top two security
screws as shown. Do NOT remove
the bottom screws.
The front door will hinge downwards
to allow access for mounting holes
and connection terminals.
Note: The protective film on the front
of the intercom should not be removed
until fully installed.
Never drill holes in
Intercom
the top of the
enclosure. Cable
Transmitter
entry should be
through the bottom.
602 Range
8 meters max
+
MIC
-
connections
GND
Code
button
-
+
12v
N/C C N/O
dc in
Volt free
Relay output
(4 sec pulse)
Shielded CAT5 cable
for

Testing

1) Check all connections are correct before switching on the power.
2) Press the call button on the speech panel.
3) The handset should ring.
4) Press the
5) Press
Handset & Operation
ADJUST VOLUME
Press or
and press MENU to select and save.
CHANGE RING TONE
Press and the unit will ring under
the currently select tone. Press
and to cycle through available
ring tones. Press MENU to select
and save.
CHANGE LANGUAGE
Press and the unit will display the
currently selected language.
1=English. Press
cycle. Press MENU to select and
save.

VOICEMAIL

When the door station is pressed, and not answered within 40 seconds,
the visitor can leave a message. Once complete, the handset will display
the symbol. Up to 16 messages can be saved.
To listen to voicemail, press MENU to play. If there are more than 1
message, press
MENU to play.
= Pause / Exit

SET TIME ON DISPLAY

Press MENU for 2 seconds. The hour digits will begin flashing.
Press or
minutes and repeat. Press MENU a third time to exit and save changes.

Coding another handset to the System

Foil screening
wrapped
around MIC
To add an extra handset to the system, follow the sequence below..
wires for best
performance! 1) Press and HOLD the code button on the door station for 3 seconds,
until the LED's on the bottom of the board start to flash.
2) Press and hold the Code button on the new handset ignoring the first
Solid
short tone, until you hear a confirmation tone ("Di-Do-Do"). This may take
shield
wire
up to 10 seconds.
3) Once the door station lights stop flashing, then you can test the
system by pressing the call button on the door station. The new handset
should ring. If not, repeat the process from the top.
Note: For earlier models, the existing master handset lights will
flash after step 1. You will need to press the MENU button on the
existing handset first, before proceeding to step 2 above.
button to answer the call and check two way speech.
to check the door / gate release function works.
to adjust volume level,
Reception
indicator
ON/OFF
Charging
base
and to
Power
LED
and to select the message required and press
= Continue
to adjust. Press MENU to cycle from hour setting to
Battery
Level
12.21 Voicemail
Symbol
Vibration
ON/OFF
MENU
Code
Button
= Delete, long
press = delete all.
