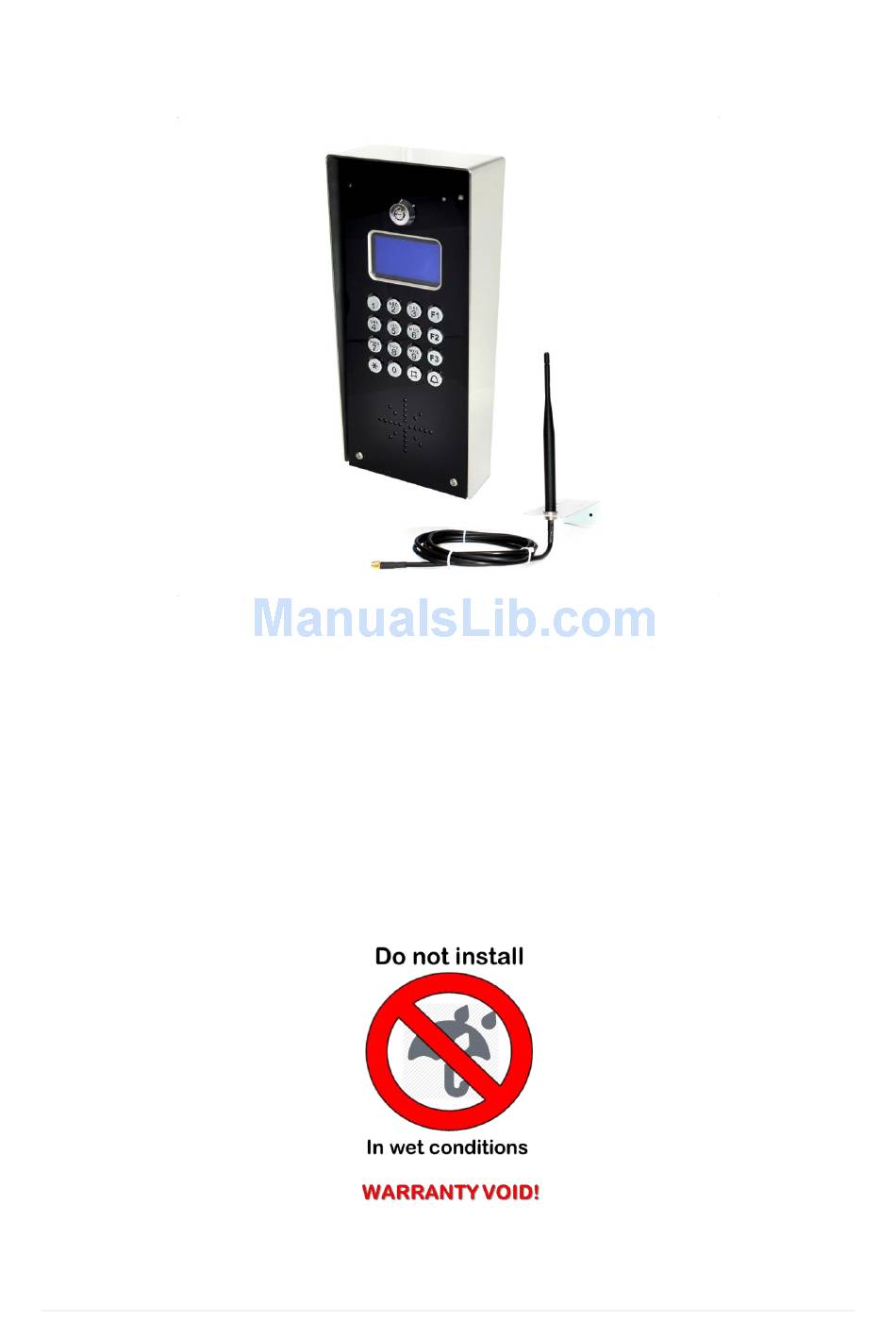

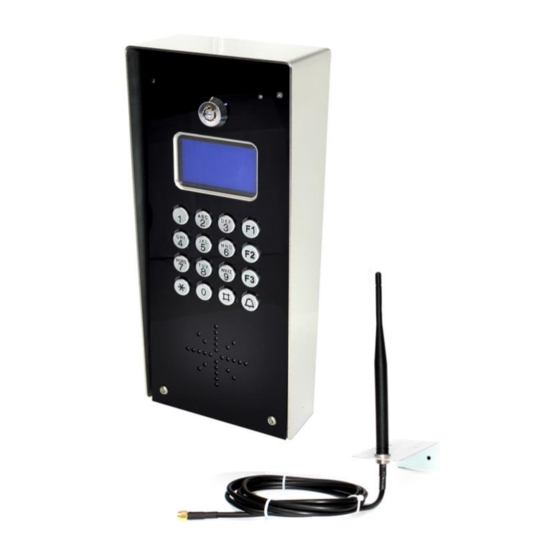

- Page 1 Installation Manual & User Instructions MultiCom 100 / 500 Multi apartment GSM Intercom System P a g e M u l t i c o m 1 0 0 i n s t a l l i n s t r u c t i o n s v 1...
-
Page 2: Table Of Contents
Contents Section Description Page Introduction Getting started SIM card Wiring Keypad / onscreen programming Adding subscribers Programming engineering features Testing SMS programming Installation Operation Factory Default Fault finding P a g e M u l t i c o m 1 0 0 i n s t a l l i n s t r u c t i o n s v 1... -
Page 3: Introduction
1. Introduction This GSM intercom uses the cellular networks to dial pre-programmed telephone numbers when an apartment number is called or family name is selected from the directory. The 100 unit will dial up to 2 numbers for 100 apartments, dialling one number, then the second number. -
Page 4: Wiring
is not a requirement. The intercom calling time can be set to limit the calling time for each use, which will help ensure lowest possible calling times. 3) Ensure the SIM card has calling credit, and can make and receive voice calls in a mobile phone. -
Page 5: Keypad / Onscreen Programming
5. Keypad / On Screen Programming To use the keypad programming method, the following keys are used… F1 = Menu / Exit F2 = Delete F3 = Change abc/ABC/123 function key = UP # = Down = Enter / select 6. -
Page 6: Programming Engineering Features
7. Programming Engineering Features Under the manager settings, the diagram below illustrates the settings which can be made on the unit… Change password Enter new programming password and Subscriber settings New___________ confirm it. Confirm___________ Enter subscriber ID If you have a building manager or guard or Manager phone ID:_____________ reception you want visitors to call in... -
Page 7: Testing
8. Testing The unit should now be ready for testing. 1) Enter a test apartment number or select the test number from the on screen directory if it is enabled, and press call. 2) The unit should now be dialling the number. 3) Answer the phone, and check there is 2 way speech. -
Page 8: Installation
9.3 Delete a subscriber Passcode#22#ID# Passcode Apartment Function number delete subscriber Additional SMS commands are shown below (SMS format assumes the standard default 123456 manager code has not been changed. If it has, replace this with the new code. Description Format of SMS Comment Default... -
Page 9: Factory Default
Keypad access – If enabled, residents can enter a code on the keypad in order to gain access. Enter the code followed by F1. Calling by phone access – If enabled, the intercom can be called from a phone. When it answers the call, if the * key is pressed, the door will open. - Page 10 Q: Audio buzzing can be heard on user’s phones. A: Reduce the microphone gain on the door phone. Increase the height of the antenna, or move it further from the door station. Change network to improve reception. Low reception will cause increased radiation from the antenna, affecting the microphone audio quality. 10 | P a g e M u l t i c o m 1 0 0 i n s t a l l i n s t r u c t i o n s v 1...
- Page 11 SELF INSTALL - NEED TECHNICAL ASSISTANCE? OPTION 1: DIRECT WITH THE SERVICE DESK – QUICKEST AND MOST EFFECTIVE METHOD Submit your enquiry direct with the service desk at – service@automaticsolutions.com.au The service desk has the most experienced staff in Australia to help with your problem but they need your help. ...
