AES 605A Operating Instructions

605A & AK
V2 (1200 keypad)
Installation
1) Before you install this equipment, please read this full manual.
2) Before screwing the camera unit to a wall or pillar, quickly connect
12v power to the camera unit, power up the monitor unit, and RANGE
TEST the system to check if it works at your required distance!
3) As per Fig 1, plan the installation of the system.

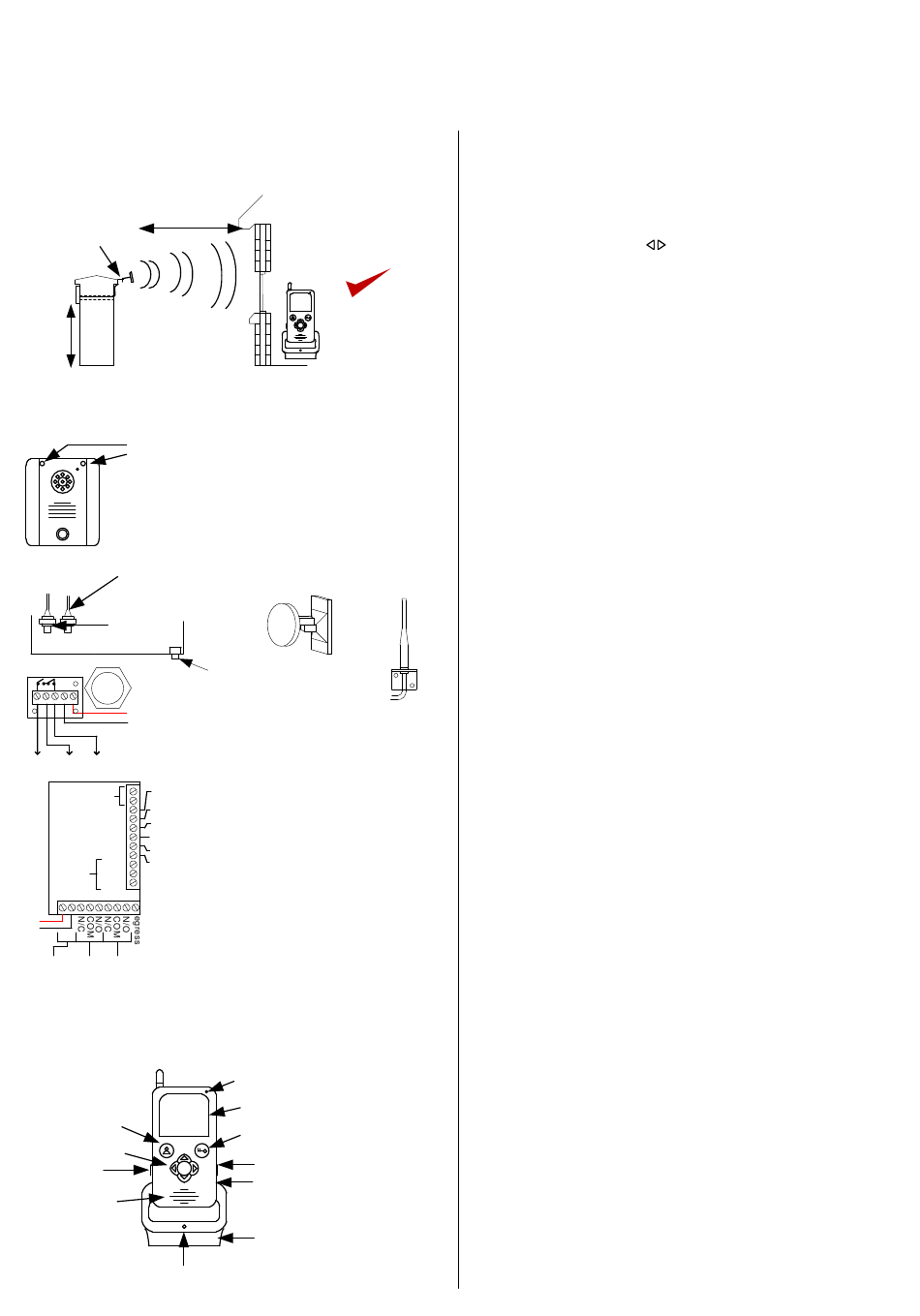

Fig.1.
Up to
200m
Antennas
Mount at
eye level
Keep antennas high!
Entrance
1.2m
Pillar
minimum
Note: Wood and glass only reduce signal strength by 10-20%. Masonry will
reduce signal strength by 20-50% per wall. Metal can totally block signals.
Installing the Speech Panel
Security Screws.
1) Unscrew both security screws, and the front door will hinge
downwards.
2) Drill a 20mm hole for the antenna cables and power wires.
3) Fit the intercom in place, lining up the rear access hole with the drilled
hole for the cables.
4) Use at least 10mm diameter, 50mm deep fixings to secure the
intercom to the wall. This will prevent it from being removed.
Video
Wiring
antenna
connection
Audio
antenna
connection
+
12v
-
dc in
Relay output volt
free 4 sec pulse
COM
N/O N/C
Tamper INT Lock
N/C
O/P1 inhib
Sense
(-)GND
DU out
N/O K or A
COM
OUT3
N/C
- Keypad Connections
+
(ABK model)
12-24v OUT1 OUT2
dc
Handset Functions
The handset comes with a Lithium Ion high quality mobile phone battery.
It is recommended to charge it for 8 hours before testing, to maximise
battery life.
Monitor button
D Pad
On/Off OK
Speaker
Charging LED
Installation Manual
House or
reception
area
For longer range
applications, locate
monitor handset near a
window at front of
property.
Audio antenna
Code
Directional Video
button
antenna dish
Note: Be sure to connect the correct
antenna to the matching antenna port
on the door station.
Do NOT cut antenna leads or attempt
to extend them.
Microphone
Video Screen
Door / Gate Release button
Vibrate Switch
Code Button
Charging base
Operation & Testing
1) Power up the door station and switch on the handset.
NOTE: You may need to wait up to 1 minute until the handset detects
the door station before you can test operation.
2) Press the call button on the door station. The handset should ring. If
it does not, try moving the handset to a different location and try again.
3) Check the screen which should show video images.
4) Answer the call, by pressing the OK button. You should be able to
hear and speak to the intercom from the handset.
5) While on the call, press
5) Press the door release button to activate the door or gates.
6) Press the OK button to end the call.
You will note that the video monitoring is designed to stay active for a
while even after the call has ended and the audio channels are closed.
Note: The handset should be held within 10-20cm of the person
speaking to achieve best volume performance. Speak into the top part
of the handset where the microphone is located.
If the handset is not answered within 40 seconds, the visitor will be
played a voicemail greeting by the door station, and they can leave a
voice message. In this case, after 1 minute a message symbol will
appear on the handset screen.
Note: The gates or door can be released from the handset even when
there is not a call active. Press and HOLD the release button for at
least 3 seconds to activate.
to adjust the volume.
