AES MultiCom 500 Installation Manual & User Instructions

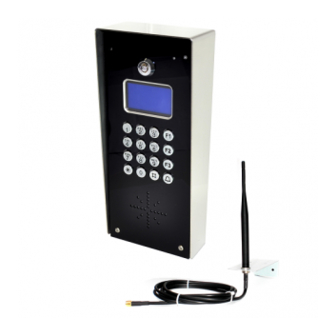

Multi resident gsm intercom system
Hide thumbs
Also See for MultiCom 500:
- Installation manual & user instructions (11 pages) ,
- Installation manual & user instructions (11 pages)
Related Manuals for AES MultiCom 500
Summary of Contents for AES MultiCom 500

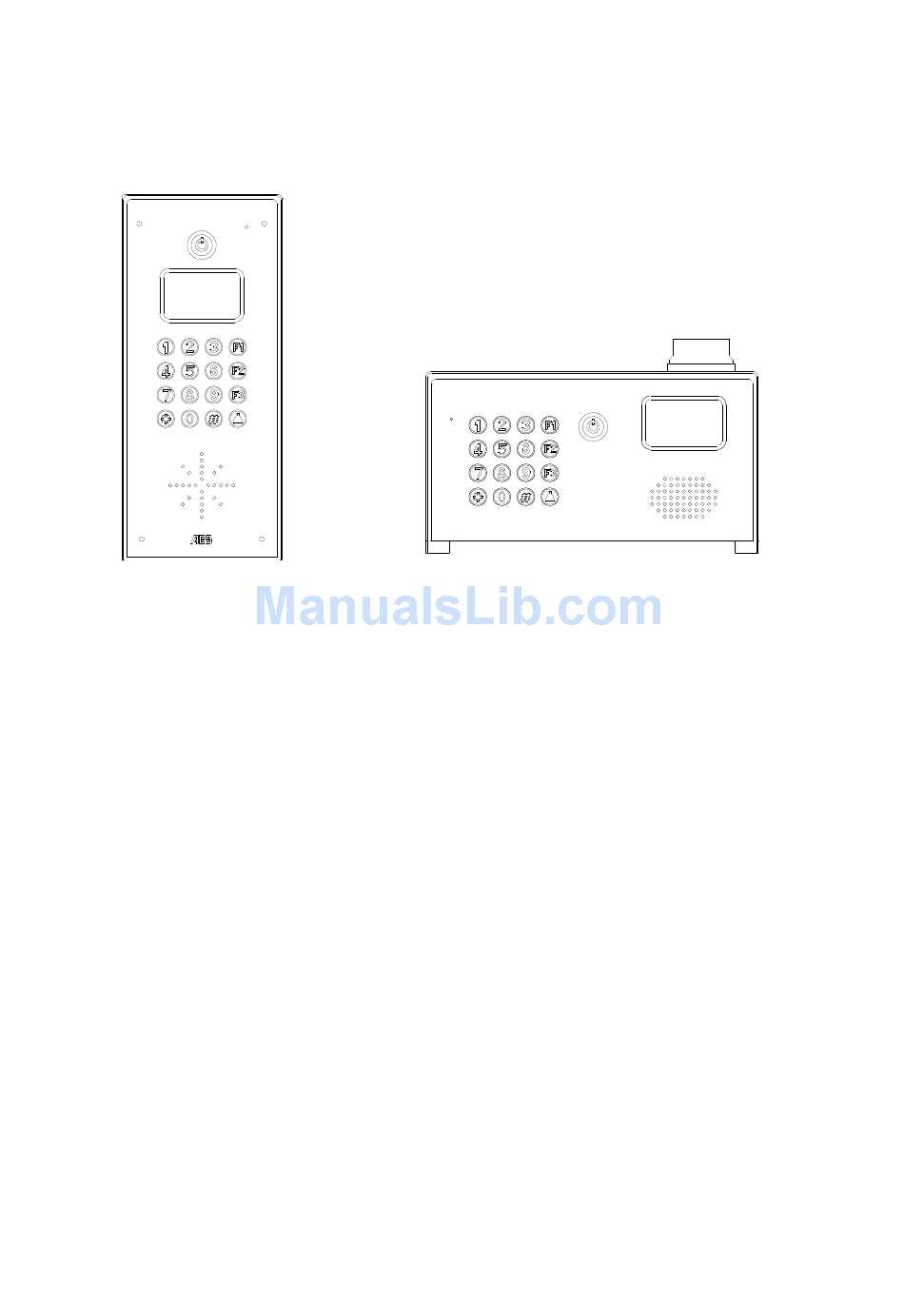

- Page 1 Installation Manual & User Instructions MultiCom 500 Multi resident GSM Intercom System P a g e...
-
Page 2: Table Of Contents
Contents …………….Pg 3 Introduction …………….Pg 3 Getting Started …………….Pg 3 SIM card …………….Pg 4 Wiring …………….Pg 4 Overview …………….Pg 5 Mounting …………….Pg 5 Inserting the SIM Card …………….Pg 5 Powering up …………….Pg 5 Programming …………….Pg 6 Programming by Keypad & LCD …………….Pg 13 SMS Programming …………….Pg 15... -
Page 3: Introduction
Introduction This GSM intercom uses the cellular networks to dial pre-programmed telephone numbers when an apartment number is called or family name is selected from the directory. The 500 model will dial 3 numbers for 500 apartments. These numbers can be fixed line telephones or mobile cell phones or both. -
Page 4: Wiring
If the SIM card was purchased along with a phone, then it may be locked to that phone. Ask your network provider to unlock the SIM so that it can be used in another device. Insert the working SIM card and connect the antenna as shown below BEFORE connecting the power. -
Page 5: Mounting
Mounting 5/16 (M8) bolts Hinge Hinge front front door 3" hole 3" hole door centres centres Gooseneck mount Wall mount Inserting the SIM card Note: This unit is a dual 2G/3G system, operating on either 2G or 3G network frequencies of 850/900/1800/1900MHz. -
Page 6: Programming By Keypad & Lcd
Keypad & LCD Programming F1= programing menu Press * and # to navigate Press to F2 = Delete confirm or select. Enter Programming Mode Press F1 to display the manager screen, enter the manager password and press the BELL button. Note: The default password is 123456. -
Page 7: System Settings
Manager Programming parameters System Settings Change Password Manager / System settings / Change password Use this to change the default programming password from 123456. Manager Phone Manager / System settings / Manager Phone Should you wish to have a building manager, reception or security guard receive calls from the intercom, you may enter their number here. -
Page 8: Volume Settings
Volume Settings Microphone Volume Manager / Volume Settings / Mic. Volume Adjust microphone volume from 1-9. Note that in some circumstances the microphone sensitivity may need adjusted. For example, if it is set too high, the intercom may experience acoustic feedback squelch. If it is too low, the phone user may have difficulty hearing the visitor. - Page 9 Caller ID Open Manager / Door Settings / Caller ID Open Enable this feature to allow stored phone numbers to be able to call the intercom and automatically trigger relay 1. When the stored number calls the intercom, it will trigger the relay and end the call without answering.
- Page 10 Calling by List Manager / Calling Settings / Calling by List This enables or disables the scroll feature. For some applications, users wish visitors to be able to scroll names on the LCD display and select the appropriate resident to call.
- Page 11 Subscriber 500 residents can be added to the intercom under the subscriber feature. Enter the apartment, flat or house number as shown, and select YES to add that subscriber. The screen below shows all the information which can be entered for a resident. Inhibit: Enable or disable this resident.
- Page 12 Authorized 100 Authorized users can be added to the intercom under this feature. Enter the apartment, flat or house number as shown, and select YES to add a user who is not a resident of that ID but who will be allowed entry under their authorization The screen below shows all the information which can be entered for an authorized user.
-
Page 13: Sms Programming
SMS Programming The basic intercom features can be programmed by SMS. To do this, SMS text messages can be sent from a mobile cell phone. Each message must begin with a pass code, then the function command, then the data. Each of these are separated by a # key as follows…... - Page 14 Passcode#22#ID# Passcode Apartment Function number delete subscriber Additional SMS commands are shown below (SMS format assumes the standard default 123456 manager code has not been changed. If it has, replace this with the new code. Description Format of SMS Comment Default Change passcode 123456#02#newcode#...
-
Page 15: Pc Programming
Programming by PC To program the unit by windows PC, first install the PC programming tool. Then power up the unit with SIM card inserted. Finally connect the USB cable to the USB port beside the power terminals and open the software. The window above will appear. - Page 16 Manager Phone: This can be set for a security guard or building manager to receive assistance calls from the intercom. Open Door Password: This is the master door access password for the keypad. Note: This feature MUST be ENABLED if subscribers are to be able to use their own individual codes. Caller ID Opening: Enable this to allow subscribers to gain access by calling the intercom from their cell phone.
- Page 17 Open: Use this to open a pre-saved file of subscribers on your PC, edit the list and then upload to the intercom. Save: Use this to save a file on your PC as a backup in the event of system failure on site. Upload: Press to upload the list to the intercom.
-
Page 18: Using The Intercom
Using the intercom This cellular intercom can dial up to 4 numbers in sequence for any call button when pressed.. Dialling….. Phone 2 Phone 1 Phone 3 Any user receiving the call can answer, speak to the visitor, and press the following digits on their mobile or fixed line telephone to control the relay on the device…... -
Page 19: Control By Sms
Control by SMS If the feature is activated, this intercom allows the user to send SMS commands to control the relays as follows… Relay 1 Relay 2 123456#44#1# - Relay momentary trigger. 123456#44#2# - Relay momentary trigger. 123456#44#1,1# Relay latch ON or hold ON 123456#44#2,1# - Relay latch ON or hold ON. -
Page 20: Using The Optional App
Using the Optional App Android and iPhone users can download an optional app called GSM-GATE. This app performs 2 main functions.. -Speed dials your intercom when the trigger button is pressed. -Sends SMS messages to latch and unlatch the relay. Once the app is installed, you will need to decide on and enter names for each of the buttons. -
Page 21: Using Iphone App
Note: Check reception, gate status and stored number features on this app do not work with this model of intercom. iPhone App Setup On iPhone the user is also required to enter button labels, the intercom phone number and the default message strings to perform the latch and unlatch functions. -
Page 22: Maintenance Of The Intercom
Maintenance of the Intercom The intercom SIM card will need topped up occasionally if it is a pre-pay casual SIM card. It is recommended that you register this SIM card on the provider’s web site. You can register card payment details. Many networks offer an auto top up feature, which means they will automatically top up your intercom when the balance runs low. - Page 23 Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception or excessively long power cables. -Check reception level on site. -Change SIM card if necessary to another network which may have better coverage. -Purchase a high gain antenna.
-
Page 24: Change History
Change History Key: P = Panel version H = Hardware PCB version S = Software version Version Reason for change Date 4.18 2 relay version, keypad code for each user added. 4.21 Latching relay feature added. 30-July-15 4.22.n Bug fix on call lists 1-Sept-15 P a g e | 24...
