Summary of Contents for AES 603 AB

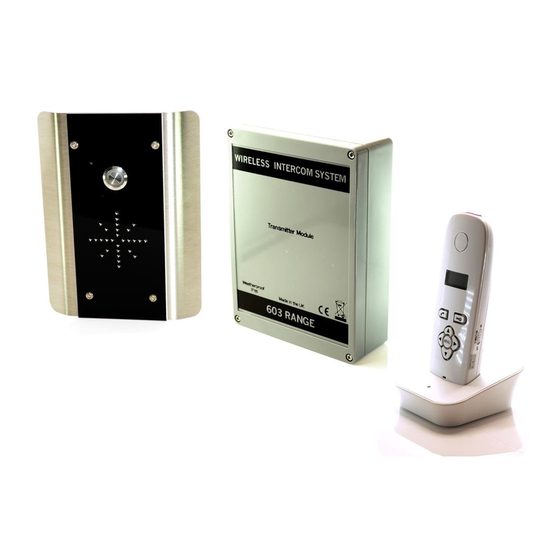

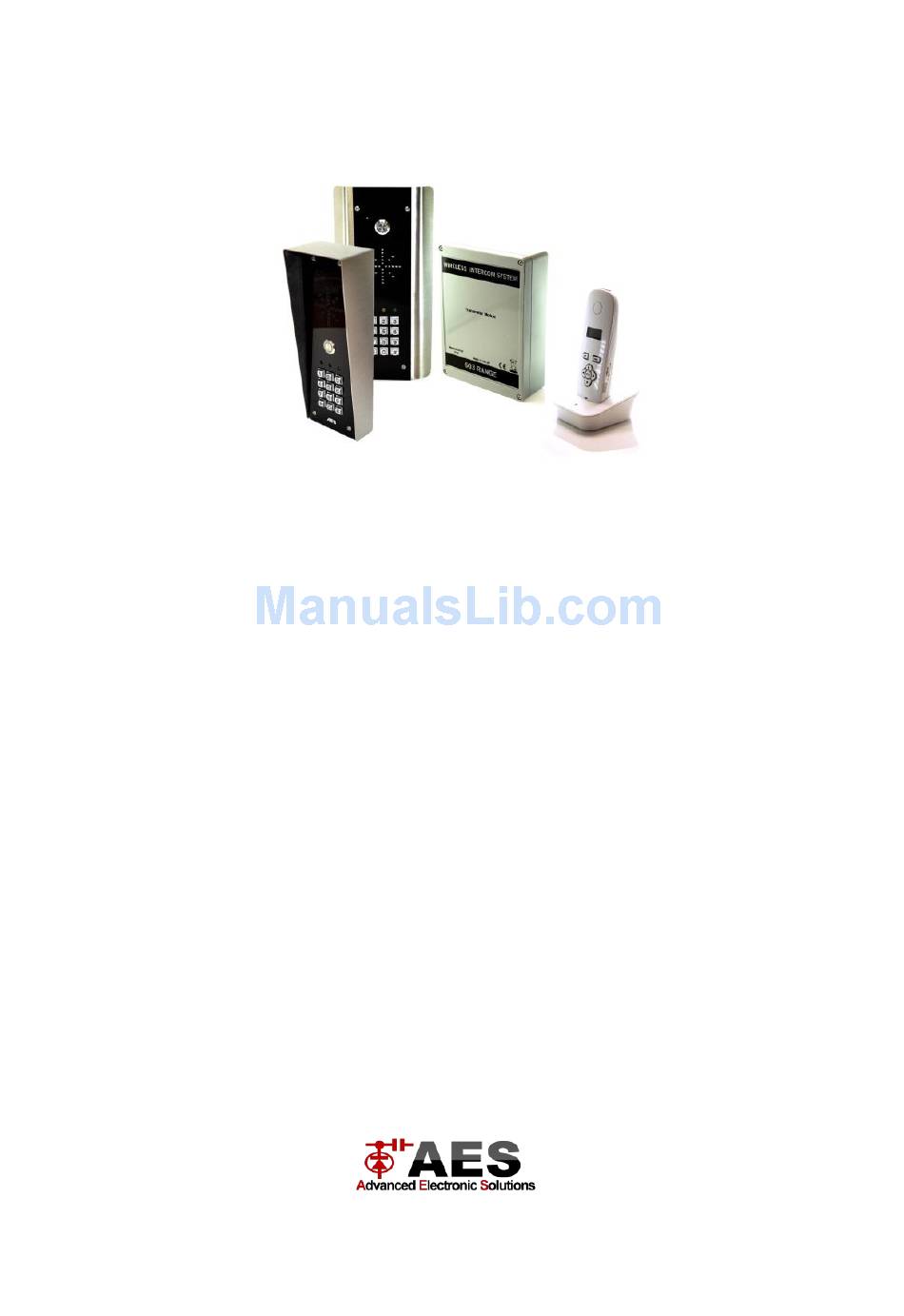

- Page 1 Installation & User Manual 6 0 3 D E C T I n t e r c o m W ireless Intercom System Models AB, ABK, HB, HBK, FB, FBK Version 3 P a g e...
-
Page 2: Table Of Contents
Contents …………….Pg 3 Overview of system …………….Pg 3 Site Survey …………….Pg 3 Mounting the Transmitter …………….Pg 3 Power supply …………….Pg 4 Mounting Architectural Panels …………….Pg 4 Mounting Hooded Panels …………….Pg 4 Mounting Flush Panels …………….Pg 5 Wiring …………….Pg 5 Code Lock Keypad Connections …………….Pg 6 Wiring Tips …………….Pg 6... -
Page 3: Overview Of System
Overview of System Please read this entire manual before attempting to install this system. This system should only be installed by a professional automatic gate installer or access control specialist installer. It is recommended that the system be range tested on site BEFORE being fully installed. Site Survey Before installing this system, you need to be sure that the range of the system will be sufficient. -
Page 4: Mounting Architectural Panels
To avoid such problems it is recommended (and is good practice) to locate the power supply as close to the transmitter as possible. This avoids power cable noise and interference and enhances the lifetime of the product. Call point Call point 12v power supply Transmitter Transmitter... -
Page 5: Wiring
Wiring Never drill holes in the top of Intercom the enclosure. Cable entry should be through the Transmitter bottom. 603 Range 4 meters max Screened CAT 5 (keep short for better audio) Transmitter module Speech Panel Volume adj. TIP: Wrap foil shielding around MIC wires for improved audio WARNING:... -
Page 6: Wiring Tips
Sense – N/C connected to (-)GND, to be connected to N/C door contact. Can be used to generate door open or tamper alarm. DU out – switches to (-) ground after the Duress Code is entered. Used to trigger alarm zone, or buzzer to notify guard. -
Page 7: Basic Keypad Programming
Basic Keypad Programming Quick start guide Tip: The engineer code 1) Enter programming mode (amber LED should be ON) must be the same length as user codes. So if using a 6 digit engineers code, then 2) Enter a new user code... user codes must also be 6 digits long etc. - Page 8 Programming relay output times and modes… 0 = start / stop toggle mode (latching) 51=relay1 Validate 1-99999 = seconds momentary operation 52=relay2 53=relay3 Delete a user code even if you don’t know the code… 10=relay1 Delete code ID location to be deleted Validate 20=relay2 30=relay3...
-
Page 9: Using The Keypad
Using the keypad Using the standard codes… Once you have exited out of programming mode, simply enter the user code. Using super user codes Activate output 1 Activate output 2 Activate output 3 The Handset The handset should be charged for 8 hours before use. It is recommended to give it at least 1 hour charge before range testing. -
Page 10: Testing
Testing Press the call button on the intercom and all coded handsets should ring (max 4 handsets). 12.21 12.21 12.21 12.21 MENU MENU MENU MENU Calling….. Answer the call on any handset by pressing and check for good 2 way speech. Adjust volume while on a call with up and down arrow buttons on the handset and press the same button again to end the call. -
Page 11: Troubleshooting
Troubleshooting guide Q. The unit will not ring the handset. A. Try re-coding the handset and transmitter as per instructions. - Check push button wiring to the transmitter with multi-meter. -Check power cable distance from power adaptor to transmitter is less than 4 metres. Q. - Page 12 P a g e | 12...
