AES 601V Installation And User Manual

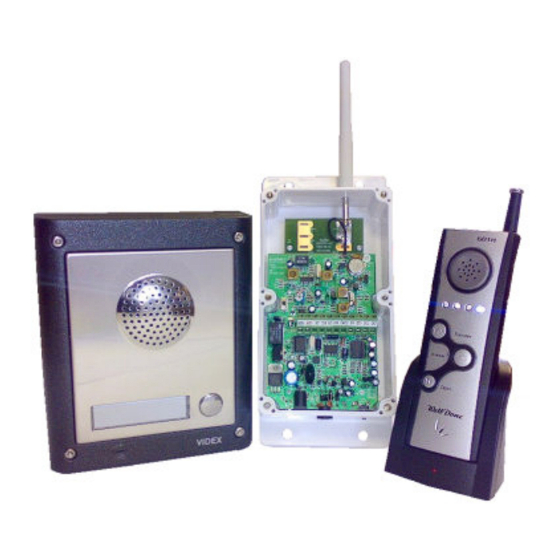

Installation and user manual for 601V & 601VK intercom systems
1. Please read all instructions before proceeding to install this system.
2. This wireless intercom uses radio frequency signals to communicate. Its maximum range in an open field without obstacles can be up to
300 meters, however, with interference and obstacles, this can be reduced to 40-70 meters working range.
3. Please power up the unit in its desired location and TEST functionality BEFORE installing the system. If it does not work at your required
range, then you can return the unit in NEW condition, thus reducing restocking fees which may apply.

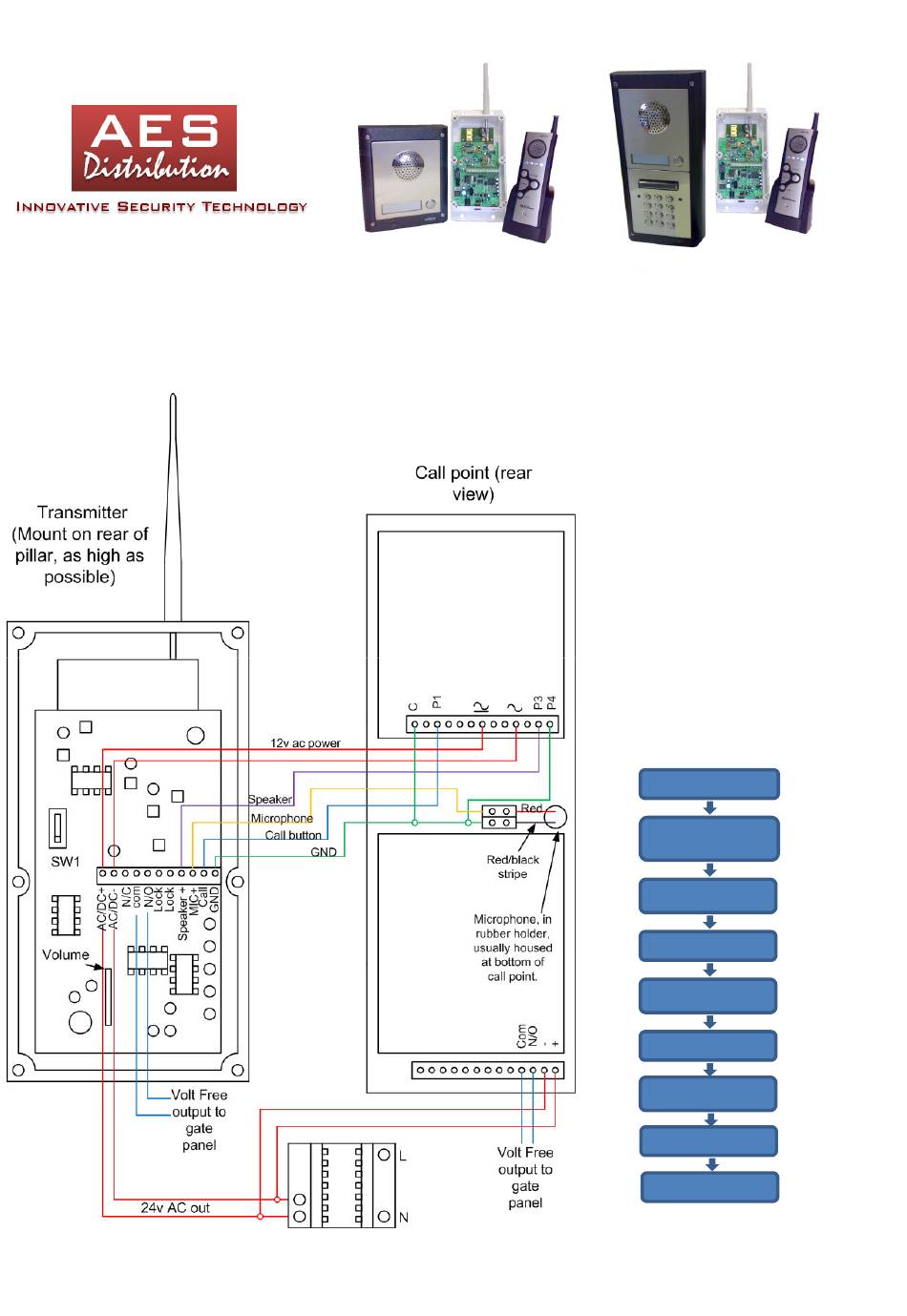

4. Wire as per wiring diagram below..
Notes
1. The transmitter should be mounted high up,
in a location so as to achieve line of sight to
the property. This will help increase range.
2. The transmitter enclosure is weatherproof.
Do not install in a metal enclosure. Ensure
that when fitting the antenna, that the
rubber seal is used.
3. Carefully observe polarity for the
microphone. The solid red wire on the mic is
positive, and the red and black wire is
negative or ground.
4. Once the system is operational, you can
adjust the speaker volume with the volume
control knob. Do not adjust too high as this control knob. Do not adjust too high as this
will cause faulty operation.
5. Note SW1. This will adjust the relay output
time to either 1.5 seconds or 5 seconds.

Keypad Programming

Enter Engineers
code
Press
ENTER
Confirm or change
engineers code
Press
ENTER
Enter access code
relay 1
Press
ENTER
Enter access time
relay 1
Press
ENTER
Enter access code
relay 2
Press
ENTER
Enter access time
relay 2
Press
ENTER
Enter access code
relay 3
Press
ENTER
Enter access time
relay 3
Press
ENTER
System ready to use
Red LED will be OFF
First time factory
preset 111111
4-8 digits
2 digits, (01-99).
E.g. 03 = 3
seconds
