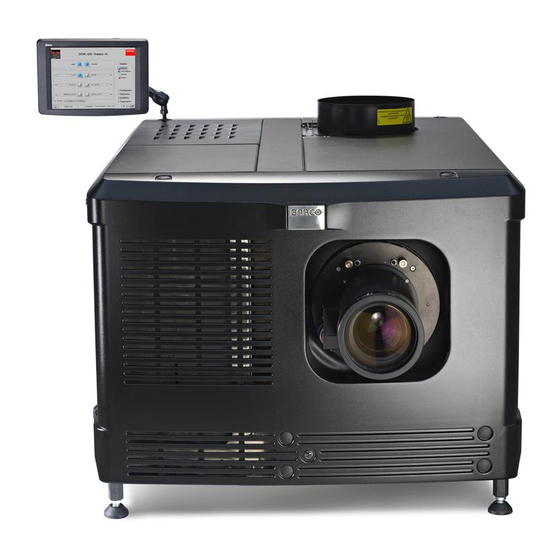

Barco DP2K Quick Start Manual

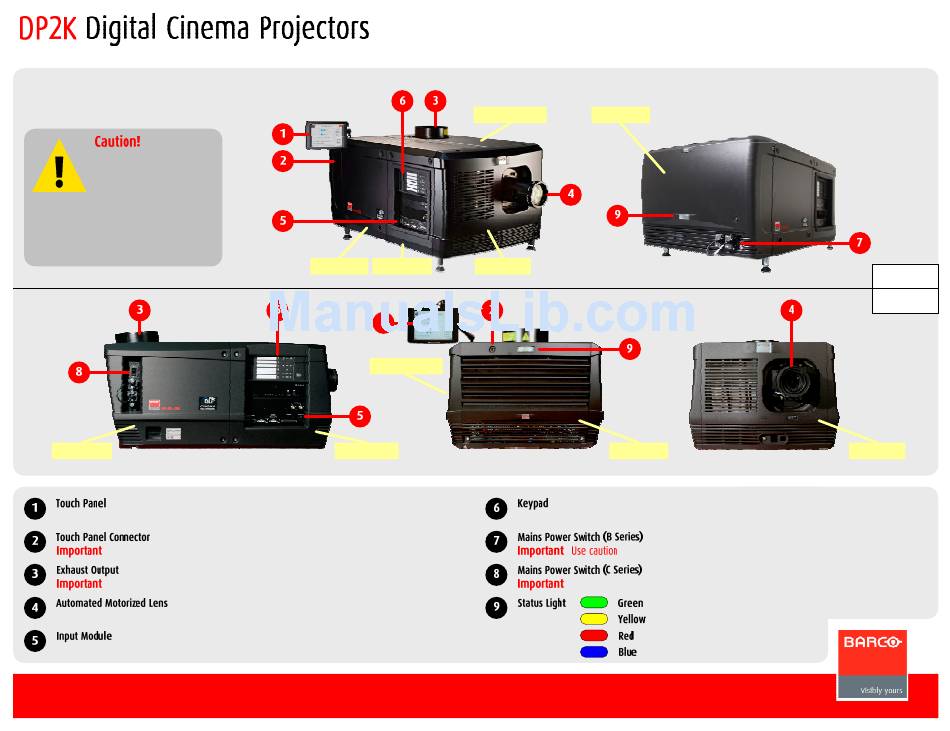

Projector Components

High voltage and strong UV
radiation is present in these
projectors!
To prevent personal injury, electrical shock,
exposure to UV radiation and fire hazard,
always refer to the "Safety" chapter in any
DP2K Installation Manual.
Lamp Cover
— Used for controlling, set-up and projector maintenance (e.g., resetting the lamp
run-time when a new lamp is installed).
— Provides power and communication for the Touch Panel.
: To avoid connector damage, align the pins before you connect the cable.
— Removes heat from lamp house. Must be connected to external extraction system.
: The extraction system must be running. A flexible duct must be installed.
— Automatically adjusts the image between screen formats when a
macro is selected. Always remove the lens cap prior to use.
— Used for communication, GPIO, and alternative content connections to the projector.
QSG_DP2K_Operator_EN_110208
Left Side Cover
Lamp Cover Input Cover Front Cover
Left Side Cover
Input Cover
Quick Start Guide — Operators
Rear Cover
Rear Cover
— Used to switch lamp and dowser on or off. Also used for macro selection, lens
adjustments and selection of test patterns.
— Powers the projector head off, but the LPS units remain on.
: . Voltage is still present in the B series LPS when the Mains Switch is off.
— Powers projector on and off. Shuts off all electrical connections.
: For all projectors, the lamp must be cooled down for 10 minutes before switching off.
— = System OK
= Warning
= Error condition
= Maintenance notification
B Series
C Series
Front Cover
