Matrix Installation and Operation Instructions
3.2.3 Roof Venting

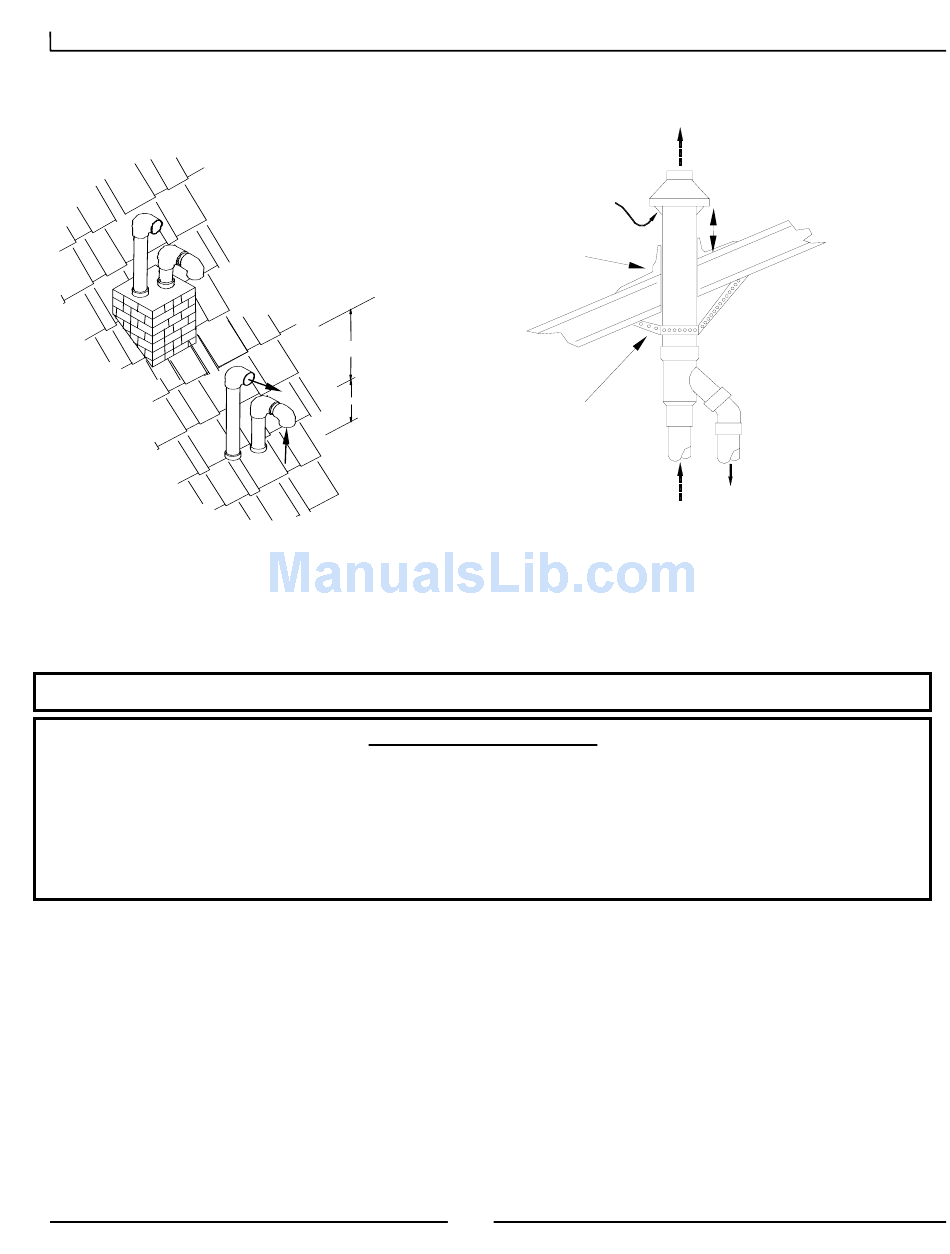

Figure 3.4 Roof Venting
IMPORTANT
It is permissible to run vent pipe through an existing chimney as long as:
1. The chimney is not to be used by any other appliance.
2. Flue gases don't enter the vacant chimney.
3. Only Trinity certified venting materials are used, see Section 3.1.
4. Vent lengths are within the maximums specified.
Roof weather seal
Flashing (field supplied)
18"
12" Plus
Support
Snow
(Field supplied)
USE OF EXISTING CHIMNEY
9
Exhaust
Inlet Air
24"
Exhaust
Note: inlet pipe must
always be connected
to the boiler.
Inlet Air
