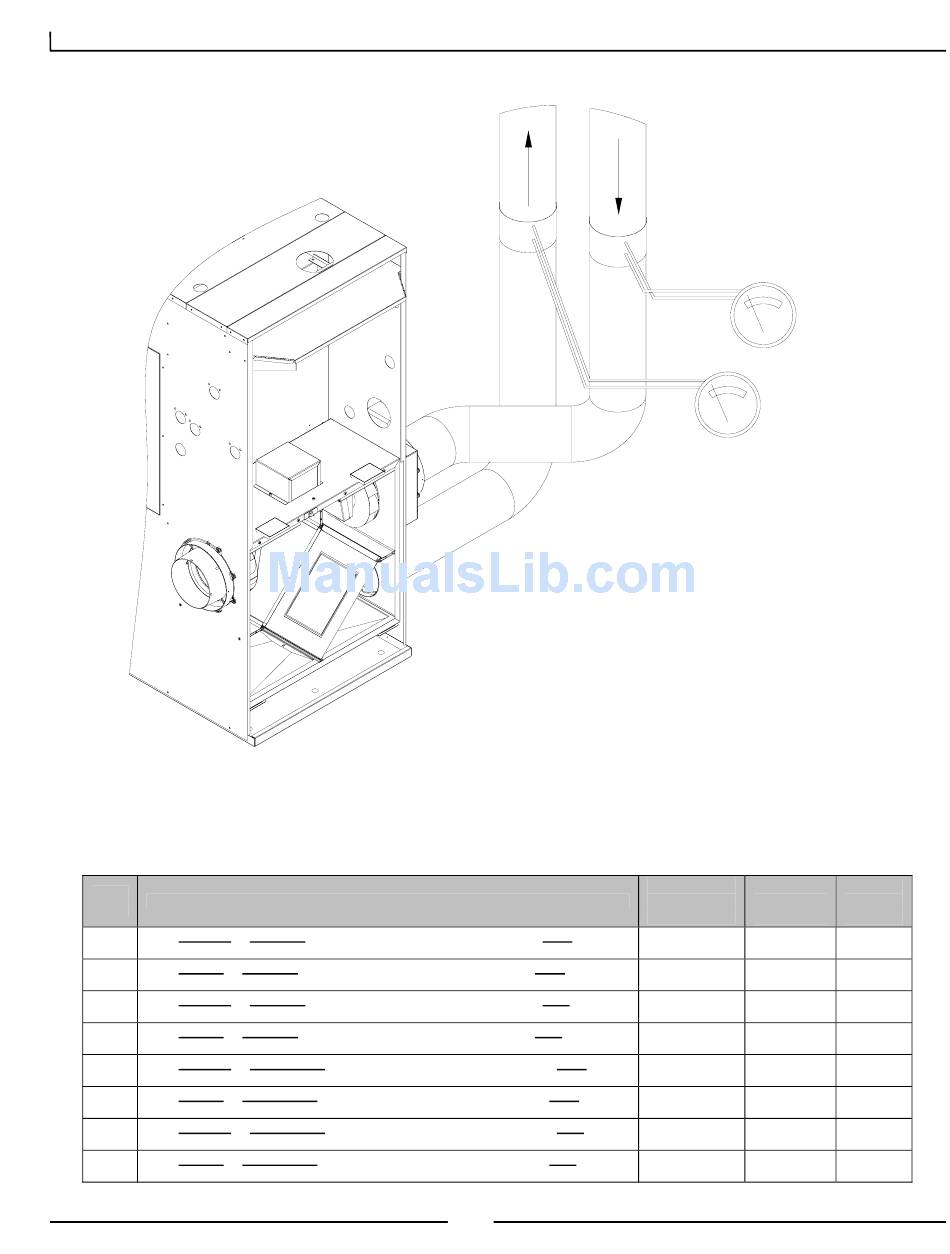

Figure 11.1 Sample Balancing Setup
Table 11.1 HRV Balancing Table
Menu
Item
HRV Exhaust at Override (high ventilation) rate, balanced during High air
EOH
circulation rate (800/1000/1200CFM).
HRV Supply at Override (high ventilation) rate, balanced during High air
SOH
circulation rate (800/1000/1200CFM).
HRV Exhaust at Override (high ventilation) rate, balanced during Low air
EOL
circulation rate (300/400/500CFM).
HRV Supply at Override (high ventilation) rate, balanced during Low air
SOL
circulation rate (300/400/500CFM).
HRV Exhaust at Continuous (low ventilation) rate, balanced during High air
ECH
circulation rate (800/1000/1200CFM).
HRV Supply at Continuous (low ventilation) rate, balanced during High air
SCH
circulation rate (800/1000/1200CFM).
HRV Exhaust at Continuous (low ventilation) rate, balanced during Low air
ECL
circulation rate (300/400/500CFM).
HRV Supply at Continuous (low ventilation) rate, balanced during Low air
SCL
circulation rate (300/400/500CFM).
Stale
Exhaust
Description
43
Fresh
Supply
6" Flow Measurement Station,
Averaging Pitot Tube, or
Pitot TransferTube
Magnehelic (0-.25 inwg)
or Digital Manometer
Sample HRV Installed
Ventilation Ventilation
Rates Rates
120cfm
(55 L/s)
120cfm
(55 L/s)
120cfm
(55 L/s)
120cfm
(55 L/s)
70cfm
(30 L/s)
70cfm
(30 L/s)
70cfm
(30 L/s)
70cfm
(30 L/s)
Installed
Fan
Speed
