Matrix Installation and Operation Instructions

9.0 CONTROL SETUP

The Matrix used two devices to control the functions required by the Matrix. The Matrix Boiler Control (red face) controls and
ensures the safe operation of the boiler functions of the Matrix much the same as the Sentry 2100 does in the Trinity products. The
Matrix Fan Control (blue face) controls all of the operation and safety functions related to air handling and hot water dispatching.
The fan controller controls the forced air modulation, ventilation, as well as priority of domestic hot water and secondary heating
systems.
ATTENTION
The Matrix Boiler Control (Sentry) is different from the Sentry controller used on any other NTI
products and is NOT INTERCHANGEABLE.

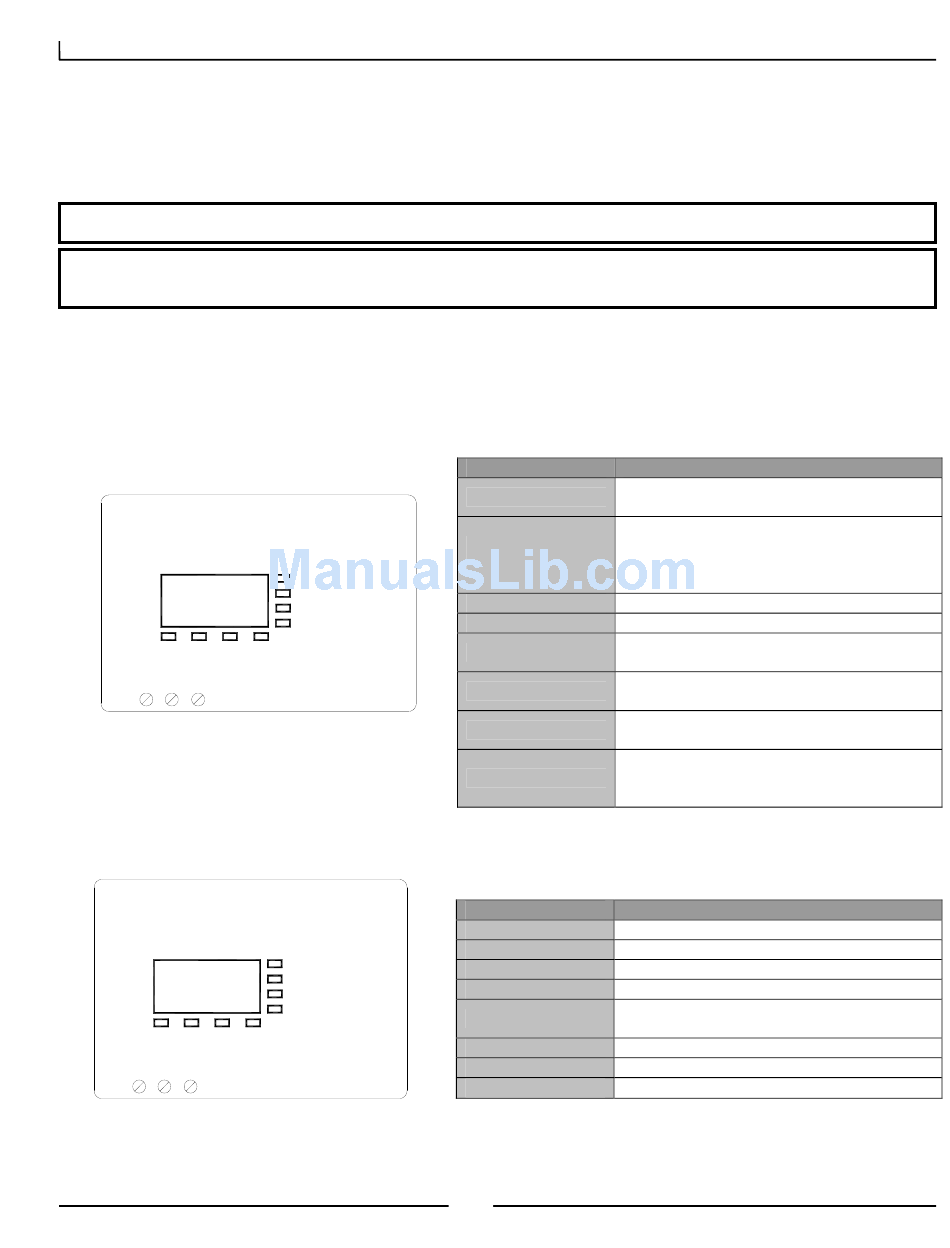

9.1 Controller Displays
9.1.1 Matrix Boiler Control (Sentry) Display (Red Face Plate)
The Matrix Boiler Control communicates to the user what is happening in the system by using an LED display and a series of LED
indicators.
Boiler Boiler Air
Temp Setpoint Temp
A C T
9.1.2 Matrix Fan Control Display (Blue Face
Plate)
Recirc. HRV On Defrost
NC COM NO
Burner/Bruleur
Forced Air Demand
Hydronic Demand
DHW Demand
Gas Input
Value
Matrix Boiler Control
Space Heat
Cooling
DHW
Hydronic
High
Humidity
Matrix Fan Control
Table 9.1 Matrix Boiler Control Display
Display
Indicates that the ignition system is
Burner/Brûleur
activated
Indicates a call for forced air heat –
Forced Air Please note. There may still be a call
Demand for forced air heat even when
thermostat is satisfied (off).
Hydronic Demand Indicates a call for hydronic heat
DHW Demand Indicates a call for domestic hot water
When illuminated, display is showing
Boiler Temp
boiler water temperature
When illuminated, display is showing
Boiler Setpoint
boiler water set point
When illuminated, display is showing
Air Temp
outdoor temperature
When illuminated, display is showing
Gas Input Value current gas input value. See chart to
determine input rate.
Table 9.2 Matrix Fan Control Display
Display
Space Heat Indicates a call for forced air heating
Cooling Indicates a call for cooling
DHW Indicates a call for domestic hot water
Hydronic Indicates a call for hydronic heat
Indicates a call for continuous
ReCirc.
circulation/ventilation
HRV On Indicates the HRV is ventilating
Defrost Indicates the HRV is in defrost mode
High Humidity Indicates a call for high ventilation of HRV
33
Description
Description
