Matrix Installation and Operation Instructions

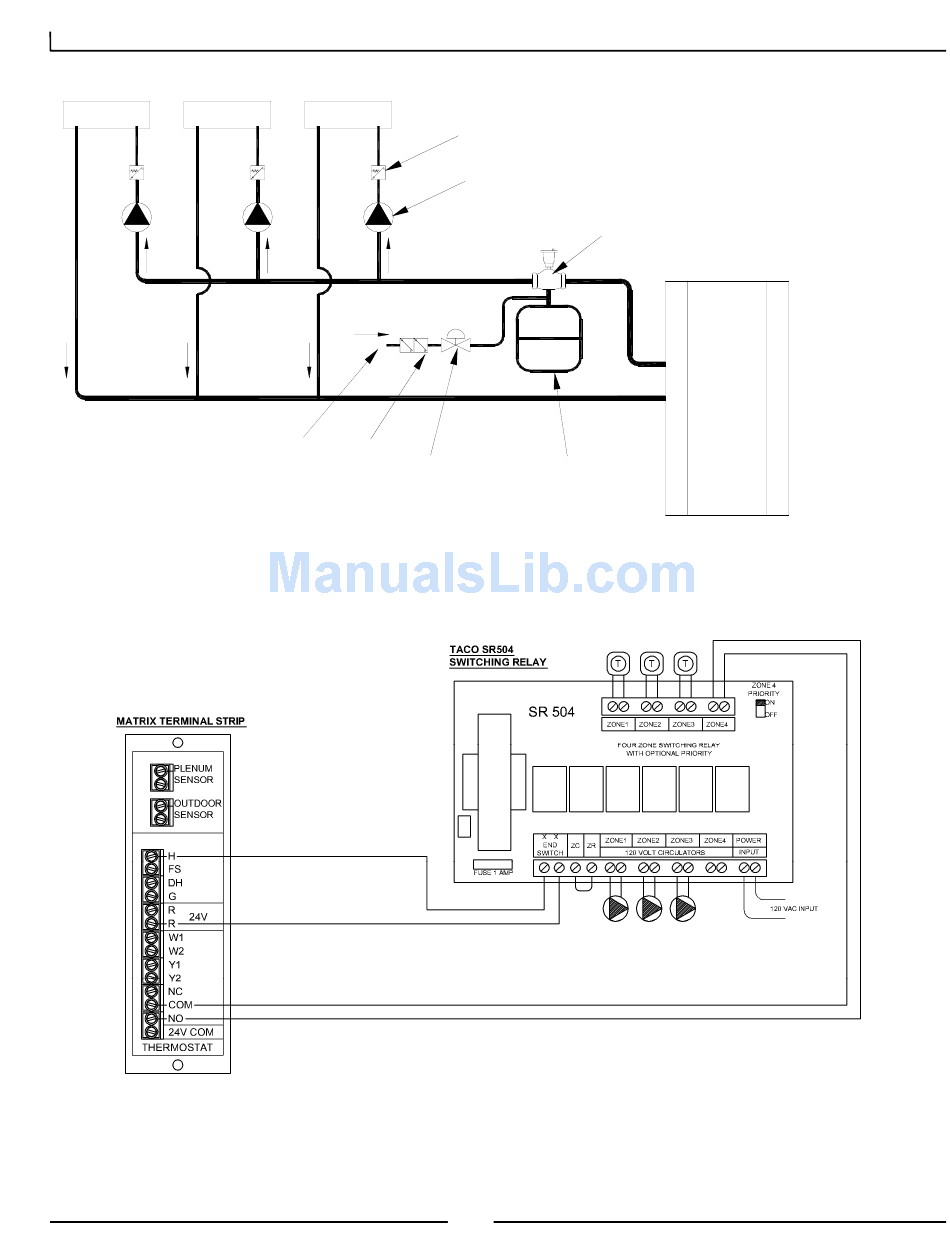

6.3.2(A) Multiple High Temperature Zones (Zone Circulators)
Zone #3
Zone #2
6.3.2(B) Multiple High Temperature Zones (Zone Circulators) – Wiring w/ Zone Controller
Zone #1
Make Up
Backflow
Preventer Pressure
Water
Reducing
Valve
Check
Valves
Zone
Circulators
Air
Separator
Expansion
Tank
21
NTI
