Summary of Contents for Elation PLATINUM SPOT LED PRO II

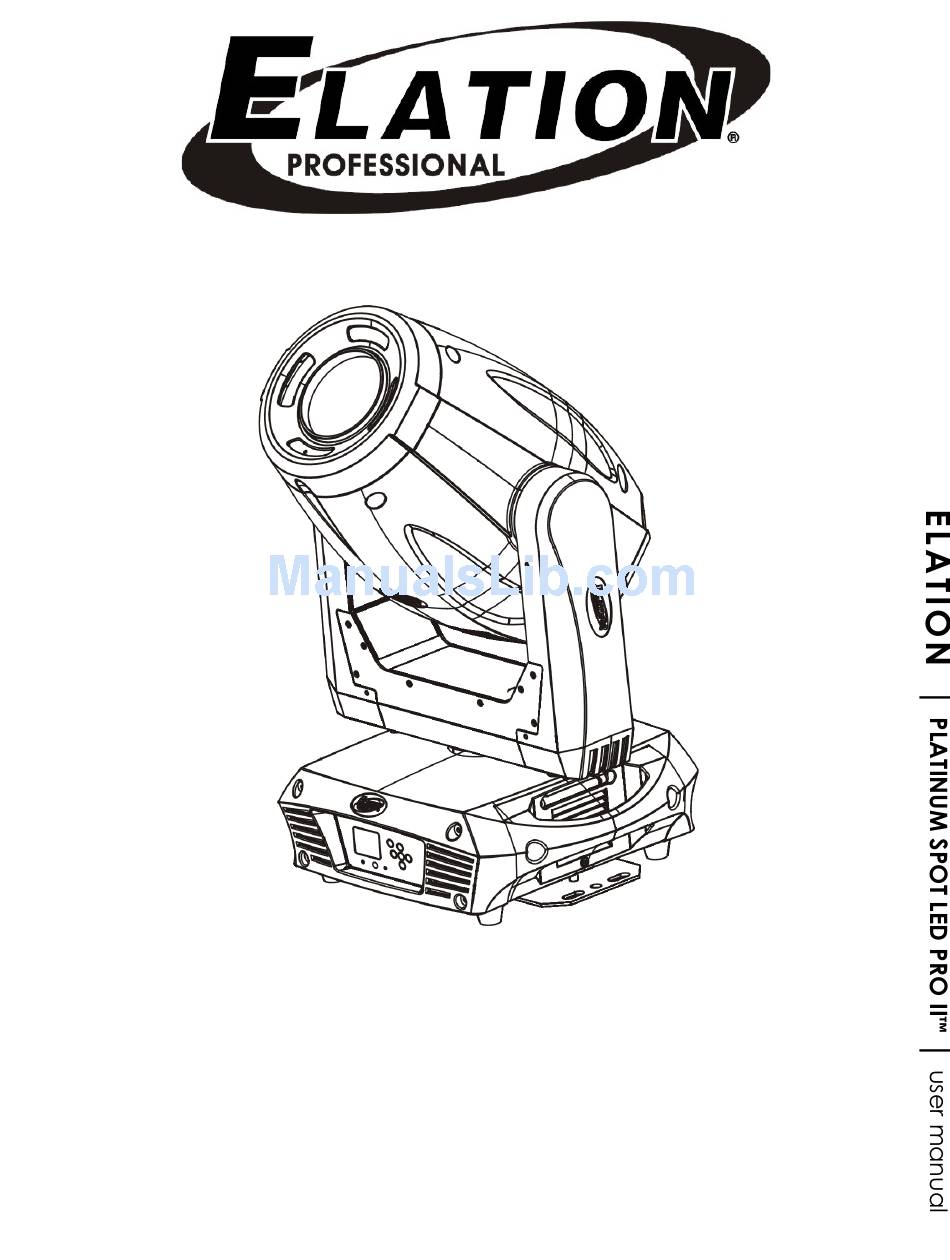

- Page 1 PLATINUM SPOT LED PRO II™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu Internal Wireless DMX Receiver (EWDMX) DMX Channel Functions And Values Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories PLATINUM SPOT LED PRO II™ User Manual Ver 2... -
Page 4: General Information
Congratulations, you have just purchased one of the most innovative and ™ reliable lighting fixtures on the market today! The PLATINUM SPOT LED PRO II been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss of or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. PLATINUM SPOT LED PRO II™ User Manual Ver 2... -
Page 8: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. PLATINUM SPOT LED PRO II™ User Manual Ver 2... -
Page 9: Fixture Overview
11: Wireless DMX Antenna 12:Enter Button 13: Handle 14: 5-Pin DMX in 15: 5-Pin DMX out 16: 3-Pin DMX in 17: 3-Pin DMX out 18: Power Switch 19: Fuse 20: Power Input PLATINUM SPOT LED PRO II™ User Manual Ver 2... -
Page 10: Fixture Installation
10 times the weight of the fixture. (463 lbs / 210 kg) • Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. • Never stand directly below the device when mounting, removing or servicing. PLATINUM SPOT LED PRO II™ User Manual Ver 2... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 12 SECURING ™ Regardless of the rigging option you choose for your PLATINUM SPOT LED PRO II always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.
-
Page 13: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The PLATINUM SPOT LED PRO II™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 14 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the PLATINUM SPOT LED PRO II™ The diagram below illustrates a typical DMX-512 connection when the fixture is in the 22 Channel Extended Mode.
- Page 15 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 16 That means changing the settings of one channel will only affect the selected fixture. In the case of the PLATINUM SPOT LED PRO II™, when in the 22 Channel Extended Mode you should set the starting DMX address of the first unit to 1, the second unit to 23 (1 + 22), the third unit to 45 (23 + 22), and so on.
-
Page 17: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The PLATINUM SPOT LED PRO II™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. - Page 18 WDMX Off De-activate WDMX Activate WDMX Activate WDMX Wireless DMX Act & Data Out Act & Data Out Clean WDMX Memo Reset Wireless DMX Memory Reset Default ON/OFF Restore factory set. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 19 FUNCTION - Set DMX Address Define desired DMX address via the Control Panel. FUNCTION - DMX Value Display DMX 512 value of each channel. FUNCTION - Slave Mode Define fixture slave mode (Slave1, Slave2, Slave3). PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 20 INFORMATION - Time Information - Clean Last Run Resets the last run time of the fixture. INFORMATION - Temperature Info - Head Temp Displays temperature of the fixture. INFORMATION - Software Version Displays software version of the fixture. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 21 When ON, the fixture automatically performs PAN / TILT correction in the event either one is disrupted during normal operation. PERSONALITY - Status Settings – Movement Speed Select desired Movement Speed. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 22 Define how fixture displays internal temperature (Celsius or Fahrenheit). PERSONALITY – Initial Status Create custom PAN/TILT and Effect settings and save as a custom Home Position. PERSONALITY – Wireless DMX Control the functionality of the internal wireless DMX receiver. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 23 Because calibration is an extremely delicate procedure, instructions on performing this action are left out of this manual. For a first time calibrator, please contact our customer support team for step-by-step instructions. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 24 DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from – to). When you call up the scenes at your controller, they will automatically be transmitted to the moving head. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 25 • Press ENTER to confirm. • Select “Auto Program”. • Press ENTER to confirm. • Select “Master” or “Alone”. • Press ENTER to confirm. • Press MODE/ESC in order to return to the main menu. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 26 • Select “Edit Scenes”. • Select desired scene numbers. A maximum of 250 scenes can be programmed. • Press ENTER to confirm. • Press MODE/ESC in order to return to the main menu. PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 27 Auto Pro Part 2 is Program 3 Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: PLATINUM SPOT LED PRO II™ User Manual Ver 2...
-
Page 28: Internal Wireless Dmx Receiver (Ewdmx)
I N T E R N A L W I R E L E S S D M X R E C I E V E R ( E W D M X ) The PLATINUM SPOT LED PRO II™ is equipped with an internal Elation Wireless DMX Receiver, which is fully compatible with an Elation Wireless DMX System. - Page 29 (Slow Flashing) = Paired with a EWDMX Transmitter but not receiving a DMX signal from a controller. GREEN (Solid) = Paired with a EWDMX Transmitter and receiving DMX data (Solid) = Not paired with a EWDMX Transmitter (FREE) PLATINUM SPOT LED PRO II™ User Manual Ver 2...
-
Page 30: Dmx Channel Functions And Values
Forward GOBO Rotation from FAST TO SLOW 190-193 NO Rotation 194-255 Backward GOBO Rotation from SLOW to FAST ROTATING GOBOS, FINE INDEX ROTATION [GOBO WHEEL 1] 0-255 GOBO Rotation FINE Indexing PLATINUM SPOT LED PRO II™ User Manual Ver 2... - Page 31 FOCUS 0-255 Continuous Adjustment from FAR to NEAR FOCUS FINE 0-255 Continuous FINE Focus Adjustment MOTORIZED ZOOM 0-255 ZOOM Adjustment from SMALL to BIG MOTORIZED ZOOM FINE 0-255 Zoom FINE Adjustment PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 32 180-199 Internal Program 5 (Scene 33-40 of EEPROM) 200-219 Internal Program 6 (Scene 41-48 of EEPROM) 220-239 Internal Program 7 (Scene 49-56 of EEPROM) 240-255 Music Control (Scene of Program 1) PLATINUM SPOT LED PRO II™ User Manual Ver 2...
-
Page 33: Error Codes
The fixture will attempt to operate normally until the errors can be correct by a technician. The errors in question will remain flashing in the display as a reminder of internal errors. PLATINUM SPOT LED PRO II™ User Manual Ver 2... - Page 34 This message will appear after the reset of the fixture reset if the Focus Er magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB). PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 35 This message will appear after the reset of the fixture reset if the Zoom Er magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB). PLATINUM SPOT LED PRO II™ User Manual Ver 2...
-
Page 36: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 37: Technical Specifications
CE | cETLus | RoHs Compliant | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM SPOT LED PRO II™ User Manual Ver 2... - Page 38 . e l a t i o n l i g h t i n g . c o m GOBOS PLATINUM SPOT LED PRO II™ User Manual Ver 2...
- Page 39 . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA PLATINUM SPOT LED PRO II™ User Manual Ver 2...
-
Page 40: Dimensional Drawings
. e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM SPOT LED PRO II™ User Manual Ver 2... - Page 41 . e l a t i o n l i g h t i n g . c o m CIRCUIT SCHEMATICS PLATINUM SPOT LED PRO II™ User Manual Ver 2...
-
Page 42: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp DRCPLAT Dual Road Case For Platinum Spot LED PRO II™ DRCPLATQUAD Quad Road Case For Platinum Spot LED PRO II™ ELO211 Eloader II™ Software Updater Box EWDMXSYSTEM...
