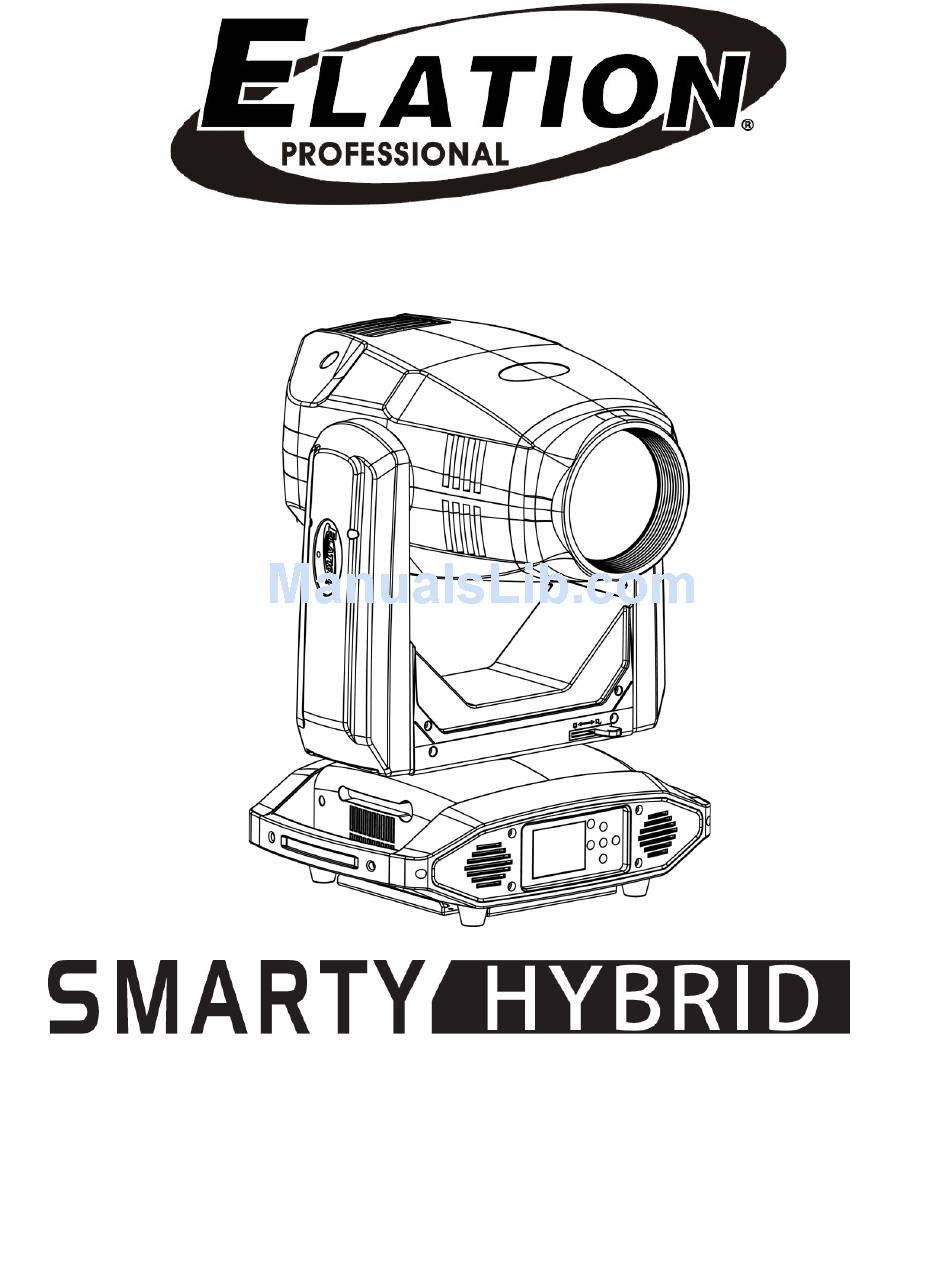

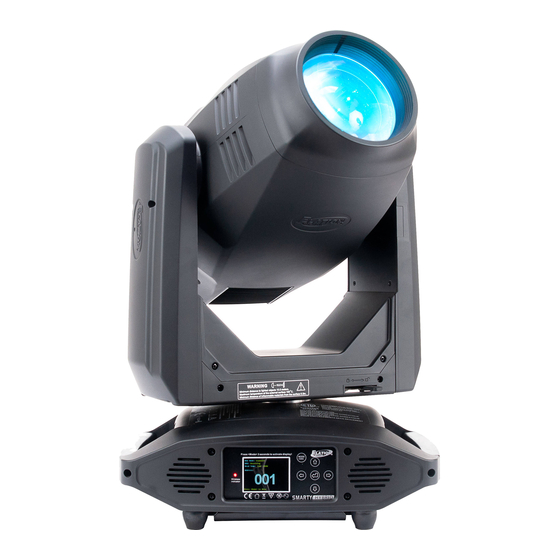

  • Page 1 ™ User Manual...
  • Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N Due to additional product features and/or enhancements, an updated version of this document may be available online.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Discharge Lamp Warning Maintenance Guidelines Fixture Overview Colors and Gobos Custom Gobos Lamp Replacement Installation Guidelines System Menu E-FLY Wireless DMX Set Up E-FLY Wireless Installation Location Guidelines DMX Channel Functions And Values Error Codes Technical Specifications...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. CUSTOMER SUPPORT Elation Professional provides a customer support line to provide set up help and answer any set up or operation questions. You may also visit us on the web at www.elationlighting.com for any comments or suggestions.

  • Page 5: Limited Warranty (Usa Only)

    Elation Professional concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional factory unless prior written authorization was issued to purchaser by Elation Professional;...

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION.

  • Page 8: Discharge Lamp Warning

    D I S C H A R G E L A M P W A R N I N G This fixture is fitted with a DISCHARGE LAMP, which is highly susceptible to damage if improperly handled. NEVER touch the lamp with your bare hands, as the oil from your hands will shorten the life of the lamp.

  • Page 9: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 10: Fixture Overview

    F I X T U R E O V E R V I E W 1. Lens 2. Wireless Indicator 3. LCD Control Menu Display 4. MODE/ESC Button 5. LEFT Button 6. ENTER Button 7. DOWN Button 8. RIGHT Button 9.

  • Page 11: Colors And Gobos

    C O L O R S A N D G O B O S www.elationlighting.com...

  • Page 12: Custom Gobos

    Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 13: Lamp Replacement

    L A M P R E P L A C E M E N T To ensure a proper/safe lamp change, carefully read all the following instructions. THE PHILIPS™ MSD PLATINUM 200 FLEX LAMP MUST BE REPLACED EVERY 6,000 HOURS OR WHEN DAMAGED AND/OR DEFORMED! USE ONLY GENUINE ORIGINAL PHILIPS™...
  • Page 14 L A M P R E P L A C E M E N T LAMP INSTALLATION PROCEDURE 1. Place fixture on a flat surface and let cool for a minimum of 60 MINUTES. 2. Remove (3) screws marked “A”, “B”, and “C” to remove lamp access panel. (see below) www.elationlighting.com...
  • Page 15 L A M P R E P L A C E M E N T LAMP INSTALLATION PROCEDURE 3. Unlock retention clip and pull clip towards you away from the lamp. 4. Gently grab lamp base with thumb and index finger and pull towards you. 5.

  • Page 16: Installation Guidelines

    I N S T A L L A T I O N G U I D E L I N E S F L A M M A B L E M A T E R I A L W A R N I N G Keep fixture at least 5.0 feet (1.5m) away from any flammable materials, decorations, pyrotechnics, etc.
  • Page 17 I N S T A L L A T I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the included Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 18 I N S T A L L A T I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 19: System Menu

    S Y S T E M M E N U The fixture includes an easy to navigate system menu. The control panel (see image below) located on the front of the fixture, provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 20 Supports Software Versions: ≥ 2.1.1 Features are subject to change without any prior written notice. *Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings. MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) Set Dmx Address A001~AXXX...
  • Page 21 Supports Software Versions: ≥ 2.1.1 Features are subject to change without any prior written notice. *Rotation direction (Clockwise or Counterclockwise) of effects depends on orientation of the fixture head and Pan/Tilt settings. MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) Reset All Reset All Motors...
  • Page 22 PERSONALITY - Status Settings - Address Via DMX When ON, define the desired DMX address via an external controller. NOTE: This process assumes the fixture DMX address is set to 001. If fixture DMX address is not at 001, you must adjust the channel numbers accordingly in order for this feature to work. For example: if your fixture address is 010, then Channel 1 becomes Channel 10, Channel 2 becomes Channel 11, and Channel 3 becomes Channel 12.
  • Page 23 FIXTURE SOFTWARE CAN NOT BE DOWNGRADED! DOWNLOAD FIXTURE SOFTWARE TO PC ONLY! (NO MAC SUPPORT) PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. 1. Copy fixture software update file from a PC computer to a compatible USB flash drive. Make sure only the fixture software update file is stored on the USB flash drive.
  • Page 24 EFFECT ADJUST – Calibration ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION! This function allows small adjustments to be made to the Pan, Tilt, and Zoom movements to compensate for ware or in the event a sensor has been knocked slightly out of place. Because improper use of this function can result in undesired operation this function has been password protected.
  • Page 25 EDIT PROGRAM – Record Controller – Working with Built-In Program [continued] To start an Auto Program, proceed as follows: 1. Slave Setting • Select “Function Mode”. • Press ENTER to confirm. • Select “Set to Slave”. • Press ENTER to confirm. •...
  • Page 26 EDIT PROGRAM – Record Controller – Working with Built-In Program [continued] 4. Program Selection for Edit Program • Select “Edit Program”. • Press ENTER to confirm. • Select “Edit Program”. • Press ENTER to confirm. • Select the desired program to edit specific scenes into a specific program. •...

  • Page 27: E-Fly Wireless Dmx Set Up

    E-FLY is enabled. Make sure to know what E-FLY wireless channels are being used in the area where the fixture is being installed. ELATION E-FLY WIRELESS TRANSCEIVER has 0-14 wireless channels. 4. Set fixture DMX address in the Set Dmx Address sub menu of the FUNCTION main system menu.

  • Page 28: E-Fly Wireless Installation Location Guidelines

    E - F LY W I R E L E S S I N S TA L L AT I O N L O C AT I O N G U I D E L I N E S There are many factors that affect and/or interrupt a wireless signal such as walls, glass, metal, objects, and people.

  • Page 29: Dmx Channel Functions And Values

    D M X C H A N N E L F U N C T I O N S A N D V A L U E S ELATION SMARTY HYBRID DMX Channel Values / Functions (34 DMX Channels) Supports Software Versions: ≥ 2.1.1 Features are subject to change without any prior written notice.
  • Page 30 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED COLOR WHEEL 0-10 OPEN / WHITE 11-19 RED - [RGB = 255, 0, 0] 20-28 GREEN - [RGB = 0, 255, 0] 29-37 YELLOW - [RGB = 255, 255, 0] 38-46 MAGENTA - [RGB = 255, 0, 255] 47-55 ORANGE - [RGB = 255, 102, 0] 56-64...
  • Page 31 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED ROTATING GOBOS, CONTINUOUS ROTATION [WHEEL 1] 0-10 BEAM OPEN 11-21 SPOT OPEN 22-31 Rotate Gobo 1 32-41 Rotate Gobo 2 42-51 Rotate Gobo 3 52-61 Rotate Gobo 4 62-71 Rotate Gobo 5 72-81 Rotate Gobo 6 82-91 Rotate Gobo 7...
  • Page 32 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED STATIC / FIXED GOBOS [GOBO WHEEL 2] OPEN 10-17 Static / Fixed Gobo 1 18-25 Static / Fixed Gobo 2 26-33 Static / Fixed Gobo 3 34-41 Static / Fixed Gobo 4 42-49 Static / Fixed Gobo 5 50-57 Static / Fixed Gobo 6...
  • Page 33 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED ROTATING PRISMS, PRISM / GOBO MACROS 0-31 OPEN 32-64 16-Facet PRISM 65- 94 5-Facet Linear PRISM 95- 127 16 + 5 Facet PRISMS COMBINED 128-135 Prism / Gobo Macro 1 136-143 Prism / Gobo Macro 2 144-151 Prism / Gobo Macro 3 152-159...
  • Page 34 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED MOTORIZED ZOOM 0-255 ZOOM Adjustment from SMALL to BIG MOTORIZED ZOOM FINE 0-255 ZOOM FINE 16-bit Adjustment AUTO FOCUS SPOT MODE 0-31 AUTO FOCUS OFF 32-59 26.2 ft (8m) 60-87 29.5 ft (9m) 88-115 32.8 ft (10m) 116-143...
  • Page 35 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED SHUTTER, STROBE 0-31 Shutter CLOSED 32-63 NO Function (Shutter OPEN) 64-95 Strobe Effect SLOW to FAST 96-127 NO Function (Shutter OPEN) 128-159 Pulse Effect In Sequences 160-191 NO Function (Shutter OPEN) 192-223 Random Strobe Effect SLOW to FAST 224-255 NO Function (Shutter OPEN) DIMMER INTENSITY...
  • Page 36 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED CMY / COLOR MACROS 0-31 32-39 Macro 1 40-47 Macro 2 48-55 Macro 3 56-63 Macro 4 64-71 Macro 5 72-79 Macro 6 80-87 Macro 7 88-95 Macro 8 96-103 Macro 9 104-111 Macro 10 112-119 Macro 11...
  • Page 37 MODE / CHANNEL VALUE FUNCTION STANDARD EXTENDED LAMP ON/OFF, RESET, INTERNAL PROGRAMS 0-19 COOR Change Normal 20-29 COLOR Change to Any Position 30-39 RESERVED 40-49 LAMP ON 50-59 LAMP OFF 60-66 LAMP POWER 190W 67-73 LAMP POWER 240W 74-79 LAMP POWER 280W 80-84 All MOTORS Reset 85-87...

  • Page 38: Error Codes

    E R R O R C O D E S When fixture is powered ON, it will automatically enter a “Reset/Test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of “XXer”...

  • Page 39: Technical Specifications

    2 DMX Channel Modes (20 / 34 channels) Full Color 180° Reversible LCD Control Panel 8 / 16 Bit Resolution Adjustable Movement DMX, RDM, Art-NET, and sACN Protocol Support Elation E-FLY™ Internal Wireless DMX Transceiver Hibernation Mode (Power Save) 5pin DMX In/Out RJ45 Ethernet In/Out (Art-NET)

  • Page 40: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...

  • Page 41: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM ZB-MSD PLATINUM 200 FLEX Philips MSD Platinum 200 Flex Lamp DRCSMARTY Dual Road Case for SMARTY HYBRID TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp SCABLE60 Safety Cable 24” (610mm) 60 lbs. (27kg) Rating EFL001...
