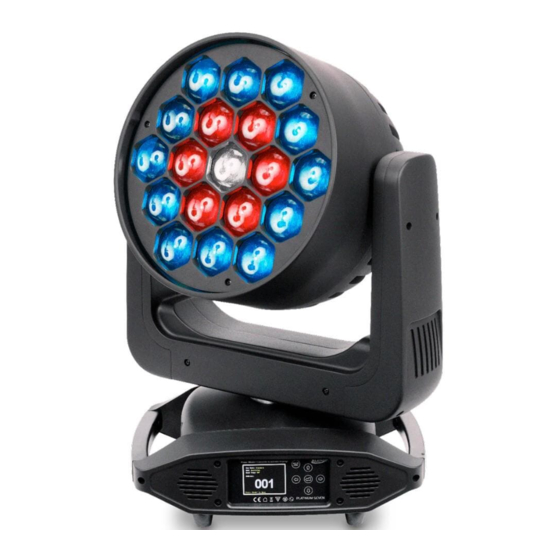

PLATINUM SEVEN™
user manual



Advertisement

Table of Contents
loading

Related Manuals for Elation PLATINUM SEVEN

Summary of Contents for Elation PLATINUM SEVEN

  • Page 1 PLATINUM SEVEN™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    . e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation System Menu DMX Channel Functions And Values LED Groups Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories PLATINUM SEVEN™ User Manual...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (2) Omega Brackets (1) 5pin DMX Cable (1) powerCON TRUE1 Cable (1) Safety Cable PLATINUM SEVEN™ User Manual...
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions And Guidelines

    KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE! INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! PLATINUM SEVEN™ User Manual...
  • Page 8 Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. PLATINUM SEVEN™ User Manual...

  • Page 9: Overview

    LCD Menu Function Display MODE/ESC Button LEFT Button DOWN Button ENTER Button RIGHT Button UP Button Carrying Handle(s) RJ45 Ethernet Input RJ45 Ethernet Output 5pin DMX Output 5pin DMX Input powerCON TRUE1 Input Fuse powerCON TRUE1 Output PLATINUM SEVEN™ User Manual...

  • Page 10: Installation

    10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. PLATINUM SEVEN™ User Manual...
  • Page 11 Insert each Omega Bracket into the matching holes on the bottom of the fixture. Secure each Omega Bracket to the fixture by turning each quick-lock fastener ¼ turn clockwise; making sure the fastener is completely locked. PLATINUM SEVEN™ User Manual...
  • Page 12 S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THERE THE CLAMP FAILS. PLATINUM SEVEN™ User Manual...
  • Page 13 Max number of PLATINUM SEVEN™ units power linked together: 2 units @120V | 3 units @240V u NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO PLATINUM SEVEN™ AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! ART-NET CONNECTION...

  • Page 14: System Menu

    To access the LCD Menu Control Display via the internal battery, press and hold the MODE/ESC button for 3 seconds. The LCD Menu Control Display will shut OFF automatically about 1 minute from the last button press. PLATINUM SEVEN™ User Manual...
  • Page 15 . e l a t i o n l i g h t i n g . c o m ELATION© PLATINUM SEVEN™ S Y S T E M M E N U Features are subject to change without any prior written notice.
  • Page 16 . e l a t i o n l i g h t i n g . c o m ELATION© PLATINUM SEVEN™ S Y S T E M M E N U Features are subject to change without any prior written notice.
  • Page 17 . e l a t i o n l i g h t i n g . c o m ELATION© PLATINUM SEVEN™ S Y S T E M M E N U Features are subject to change without any prior written notice.
  • Page 18 . e l a t i o n l i g h t i n g . c o m ELATION© PLATINUM SEVEN™ S Y S T E M M E N U Features are subject to change without any prior written notice.
  • Page 19 When ON, Control Panel buttons lock automatically after exiting main menu for 15 seconds. To unlock, keep MODE/ESC button pressed for 3 seconds. PERSONALITY - Dimming Modes Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre). PLATINUM SEVEN™ User Manual...
  • Page 20 DMX-controller to the moving head. Adjust the desired scene numbers via the encoder (from – to). When you call up the scenes at your controller, they will automatically be transmitted to the moving head. PLATINUM SEVEN™ User Manual...
  • Page 21 MODE/ESC in order to return to the main menu. 2. Automatic Program Run “Function Mode”. ENTER to confirm. “Auto Program”. ENTER to confirm. elect “Master” or “Alone”. ENTER to confirm. MODE/ESC in order to return to the main menu. PLATINUM SEVEN™ User Manual...
  • Page 22 MODE/ESC in order to return to the main menu. 5. Automatic Scene Recording “Edit Program”. ENTER to confirm. “Edit Scenes”. desired scene numbers. A maximum of 250 scenes can be programmed. ENTER to confirm. MODE/ESC in order to return to the main menu. PLATINUM SEVEN™ User Manual...
  • Page 23 4. Set the SAVE a New WHITE BALANCE channel (CH22 in Basic Mode, CH29 in Stand Mode, CH38 in Extend Mode) to DMX value of (255) to save the new preset. 5. To save a new White Balance preset, repeat steps 1-4 above. PLATINUM SEVEN™ User Manual...

  • Page 24: Dmx Channel Functions And Values

    0-255 Amber FINE Adjustment CYAN [ALL LEDs] 0-255 Cyan (0-Black - 255-100%) CYAN FINE [ALL LEDs] 0-255 Cyan FINE Adjustment VIOLET [ALL LEDs] 0-255 Violet (0-Black - 255-100%) VIOLET FINE [ALL LEDs] 0-255 Violet FINE Adjustment PLATINUM SEVEN™ User Manual...
  • Page 25 WHITE [LED GROUP 3] 0-255 White (0-Black - 255-100%) AMBER [LED GROUP 3] 0-255 Amber (0-Black - 255-100%) CYAN [LED GROUP 3] 0-255 Cyan (0-Black - 255-100%) VIOLET [LED GROUP 3] 0-255 Violet (0-Black - 255-100%) PLATINUM SEVEN™ User Manual...
  • Page 26 LIGHT GREEN 90-94 STEEL BLUE 95-99 ORANGE 100-104 STRAW 105-109 PALE LAVANDER 110-114 PINK 115-119 RED/WHITE 120-124 GREEN/RED 125-129 BLUE/RED 130-134 WHITE/RED 135-139 WHITE/PINK 140-144 WHITE/TURQUOISE 145-149 SMALL RED/WHITE 150-154 CRI=85 155-159 CRI=90 160-164 CRI=95 165-255 RESERVED PLATINUM SEVEN™ User Manual...
  • Page 27 63-78 Chase 4 79-94 Chase 5 95-110 Chase 6 111-126 Chase 7 127-142 Chase 8 143-158 Chase 9 159-174 Chase 10 175-190 Chase 11 191-206 Chase 12 207-222 Chase 13 223-238 Chase 14 239-255 Chase 15 PLATINUM SEVEN™ User Manual...
  • Page 28 120-139 Internal Program 2 (Scene 9-16) 140-159 Internal Program 3 (Scene 17-24) 160-179 Internal Program 4 (Scene 25-32) 180-199 Internal Program 5 (Scene 33-40) 200-219 Internal Program 6 (Scene 41-48) 220-239 Internal Program 7 (Scene 49-56) PLATINUM SEVEN™ User Manual...

  • Page 29: Led Groups

    . e l a t i o n l i g h t i n g . c o m L E D G R O U P S PLATINUM SEVEN™ User Manual...

  • Page 30: Error Codes

    Less Than 3 Errors - The fixture has less than 3 errors; therefore most other functions will work properly. The fixture will attempt to operate normally until the errors can be correct by a technician. The errors in question will remain flashing in the display as a reminder of internal errors. PLATINUM SEVEN™ User Manual...
  • Page 31 This message will appear after the reset of the fixture reset if the magnetic-indexing circuit ZOOM malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB). Fan Error Head fan error, displayed as “Fan RPM <1000” PLATINUM SEVEN™ User Manual...

  • Page 32: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 33: Technical Specifications

    14°F to 113°F (-10°C to 45°C) APPROVALS / RATINGS CE | RoHs | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM SEVEN™ User Manual...
  • Page 34 MAX ZOOM - 50° Beam Diameter 3.3 ft 6.6 ft 9.8 ft 13.1 ft 16.4 ft 1.49 2.76 4.43 14.5 5.52 18.1 22.6 1,907 GREEN BLUE 3,271 WHITE AMBER 1,061 CYAN U.V. 6,670 1,844 FULL ON PLATINUM SEVEN™ User Manual...

  • Page 35: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp DRCPLAT7 Dual Road Case For PLATINUM SEVEN™ EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver) AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable CAT6PRO5 5 ft.
