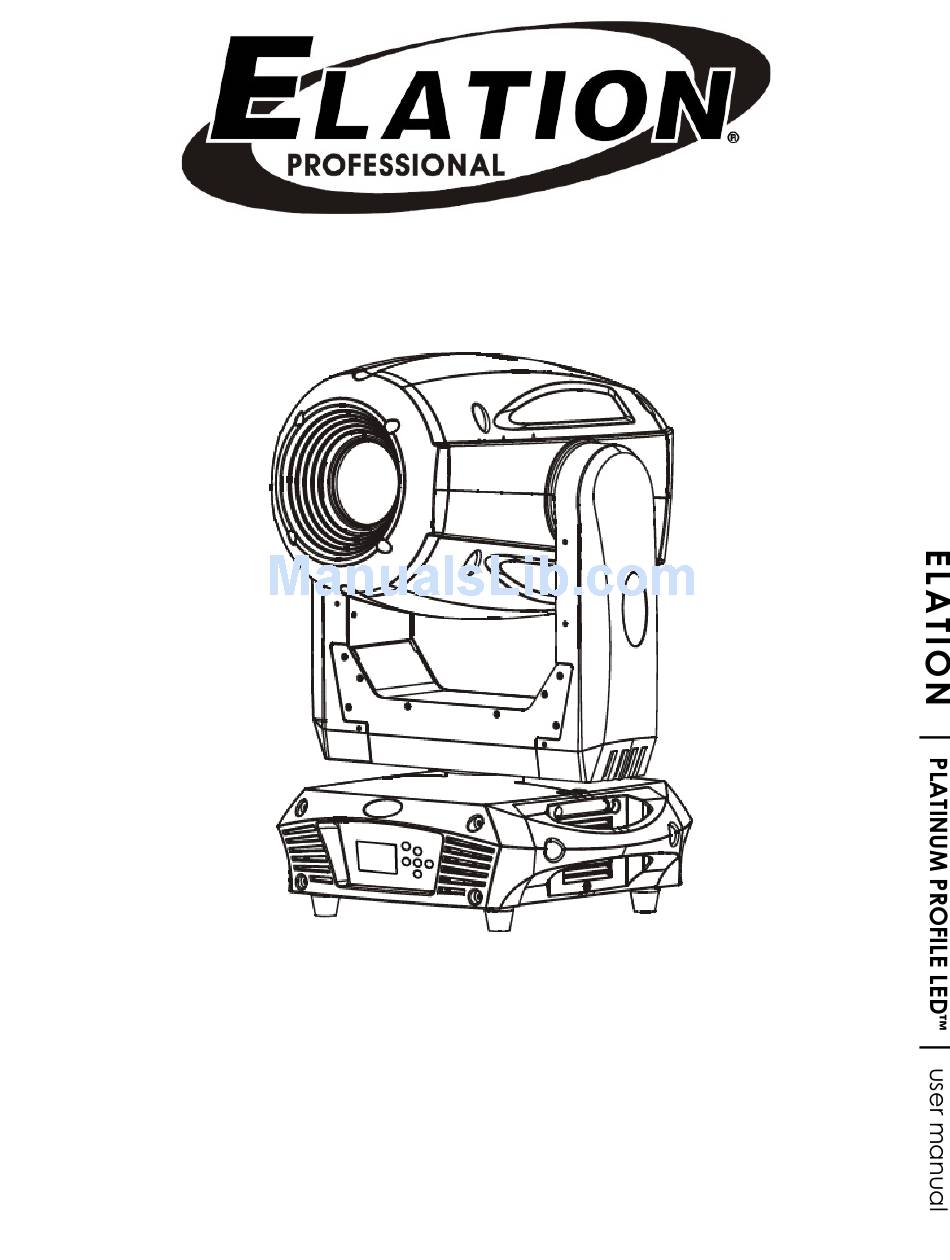

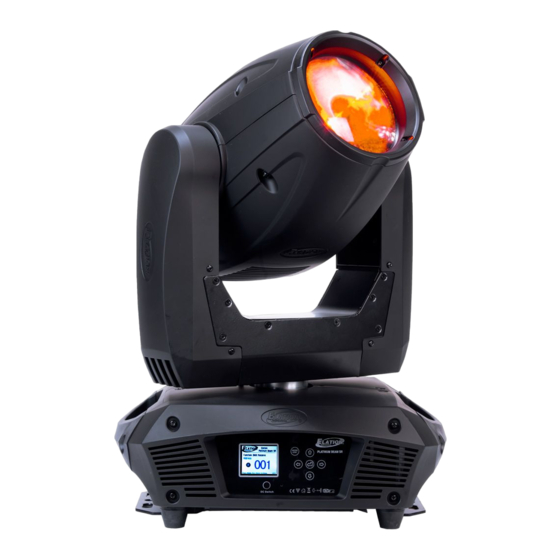

- Page 1 PLATINUM PROFILE LED™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Fixture Installation Understanding DMX Fixture Menu DMX Channel Functions And Values Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories PLATINUM PROFILE LED™ User Manual Ver 1... -
Page 4: General Information
Congratulations, you have just purchased one of the most innovative and ™ reliable lighting fixtures on the market today! The PLATINUM PROFILE LED been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss of or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If • the power cord is damaged, replace it immediately with a new one of similar power rating. PLATINUM PROFILE LED™ User Manual Ver 1... -
Page 8: General Guidelines
• Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. PLATINUM PROFILE LED™ User Manual Ver 1... -
Page 9: Fixture Overview
LCD Menu Function Display LEFT Button DOWN Button ENTER Button RIGHT Button MODE/ESC Button UP Button RJ45 Network IN RJ45 Network OUT 5pin DMX IN 5pin DMX OUT powerCON IN powerCON OUT Fuse PLATINUM PROFILE LED™ User Manual Ver 1... -
Page 10: Fixture Installation
• Never stand directly below the device when mounting, removing or servicing. P O W E R L I N K I N G Max number of units that can be power linked is 5 units @120V / 10 units @240V. PLATINUM PROFILE LED™ User Manual Ver 1... - Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 12 SECURING ™ Regardless of the rigging option you choose for your PLATINUM PROFILE LED always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle.
-
Page 13: Understanding Dmx
1 to that fixture no matter where it is located in the DMX chain. The PLATINUM PROFILE LED™ can be controlled via DMX-512 protocol and the DMX address is set via the control menu. - Page 14 Connect the provided XLR cable to the female XLR output of your controller and the other side to the male XLR input of the PLATINUM PROFILE LED™ The diagram below illustrates a typical DMX-512 connection when the fixture is in the 36 Channel Extended Mode.
- Page 15 5pin XLR fixtures may be implemented in a 3pin XLR DMX line. When inserting standard 5pin XLR connectors in to a 3pin line a cable adaptor must be used, these adaptors are readily available at most electric stores. The following chart details a proper cable conversion. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 16 That means changing the settings of one channel will only affect the selected fixture. In the case of the PLATINUM PROFILE LED™, when in the 36 Channel Extended Mode you should set the starting DMX address of the first unit to 1, the second unit to 37 (1 + 36), the third unit to 73 (37 + 36), and so on.
-
Page 17: Fixture Menu
F I X T U R E M E N U ON-BOARD SYSTEM MENU The PLATINUM PROFILE LED™ comes with an easy to navigate system menu. The next section will detail the functions of each command in the system menu. - Page 18 Elect Art-Net IP02 Art-Net on IP10 Elect Art-Net IP010 Set Universe 000 - 255 Set Art-Net Universe Dimmer Mode Standard, Stage, TV, Architectural, Theatre Set Dimmer Mode Reset Default ON/OFF Password 011 Restore Factory Settings PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 19 FUNCTION - DMX Address Define desired DMX address via the Control Panel. FUNCTION - DMX Value Display DMX 512 value of each channel. FUNCTION - Slave Mode Define fixture slave mode (Slave1, Slave2, Slave3). PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 20 INFORMATION - Temperature Information - Ethernet IP Displays temperature of the Ethernet IP address of the fixture. INFORMATION - Software Version Displays software version of the fixture. INFORMATION - Error Info Displays last 10 Error Records of the fixture. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 21 PERSONALITY - Status Settings - Feedback When ON, the fixture automatically performs PAN / TILT correction in the event either one is disrupted during normal operation. PERSONALITY - Status Settings – Movement Speed Select desired Movement Speed. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 22 When ON, the LCD Menu display by is rotated (inverted) 180°. PERSONALITY - Display Setting – Key Lock When ON, Control Panel buttons lock automatically after exiting main menu for 15 seconds. To unlock, keep MODE/ESC button pressed for 3 seconds. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 23 PERSONALITY - Set Universe Define the Art-Net Universe number. PERSONALITY – Dimmer Modes Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre). PERSONALITY – Reset Default When ON, all factory settings are restored. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 24 100%. PAN and TILT functions will still operate if the fixture needs to be positioned to a flat clear surface. With the individual functions, you can focus the light on a flat surface (wall) and perform fine adjustments. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 25 Select one of the (10) user defined internal Auto Programs. EDIT PROGRAM – Edit Program Edit any of the (10) user defined internal Auto Programs. EDIT PROGRAM – Edit Scenes Edit any of the scenes of the internal Auto Programs. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 26 • Press ENTER to confirm. • Select “Auto Program”. • Press ENTER to confirm. • Select “Master” or “Alone”. • Press ENTER to confirm. • Press MODE/ESC in order to return to the main menu. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 27 • Select “Edit Scenes”. • Select desired scene numbers. A maximum of 250 scenes can be programmed. • Press ENTER to confirm. • Press MODE/ESC in order to return to the main menu. PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 28 Auto Pro Part 1 is Program 2 Auto Pro Part 2 is Program 3 Auto Pro Part 3 is Program 6 The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture: PLATINUM PROFILE LED™ User Manual Ver 1...
-
Page 29: Dmx Channel Functions And Values
*Clockwise Color Wheel Rotation from FAST to SLOW 190-193 NO Rotation 194-255 *Counterclockwise Color Wheel Rotation from SLOW to FAST COLOR WHEEL #2 FINE ADJUSTMENT 0-255 FINE Adjustment of Color Wheel to Any Position PLATINUM PROFILE LED™ User Manual Ver 1... - Page 30 Shake SLOW to FAST Static / Fixed Gobo 5 192-207 Shake SLOW to FAST Static / Fixed Gobo 6 208-223 Shake SLOW to FAST Static / Fixed Gobo 7 224-255 *Clockwise Gobo Wheel Rotation from FAST to SLOW PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 31 Random Strobe Effect SLOW to FAST 224-255 NO Function (Shutter OPEN) DIMMER INTENSITY 0-255 Intensity 0 to 100% DIMMER CURVES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THRATRE 101-255 DEFAULT to UNIT CURVE SETTING PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 32 OPEN to CLOSE FINE Adjustment ALL (4) BLADES ROTATION 0-255 All (4) Blade Rotation ALL (4) BLADES FINE ROTATION 0-255 All (4) Blade FINE Rotation BLADE SPEED 0-255 BLADE Speed FAST to SLOW PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 33 Internal Program 2 (Scene 9-16) 160-179 Internal Program 3 (Scene 17-24) 180-199 Internal Program 4 (Scene 25-32) 200-219 Internal Program 5 (Scene 33-40) 220-239 Internal Program 6 (Scene 41-48) 240-255 Internal Program 7 (Scene 49-56) PLATINUM PROFILE LED™ User Manual Ver 1...
-
Page 34: Error Codes
The fixture will attempt to operate normally until the errors can be correct by a technician. The errors in question will remain flashing in the display as a reminder of internal errors. PLATINUM PROFILE LED™ User Manual Ver 1... - Page 35 This message will appear after the reset of the fixture reset if the Focus Er magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB). PLATINUM PROFILE LED™ User Manual Ver 1...
- Page 36 This message will appear after the reset of the fixture reset if the BladeR Er magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or defective motor IC drive on main PCB). PLATINUM PROFILE LED™ User Manual Ver 1...
-
Page 37: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 38: Technical Specifications
-13°F to 113°F (-25°C to 45°C) APPROVALS / RATINGS IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PLATINUM PROFILE LED™ User Manual Ver 1... - Page 39 . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA PLATINUM PROFILE LED™ User Manual Ver 1...
-
Page 40: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp * * pending * * ELO211 EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver) AC5PDMX5PRO PLC3 CAT6PRO5 PLATINUM PROFILE LED™ User Manual Ver 1...
