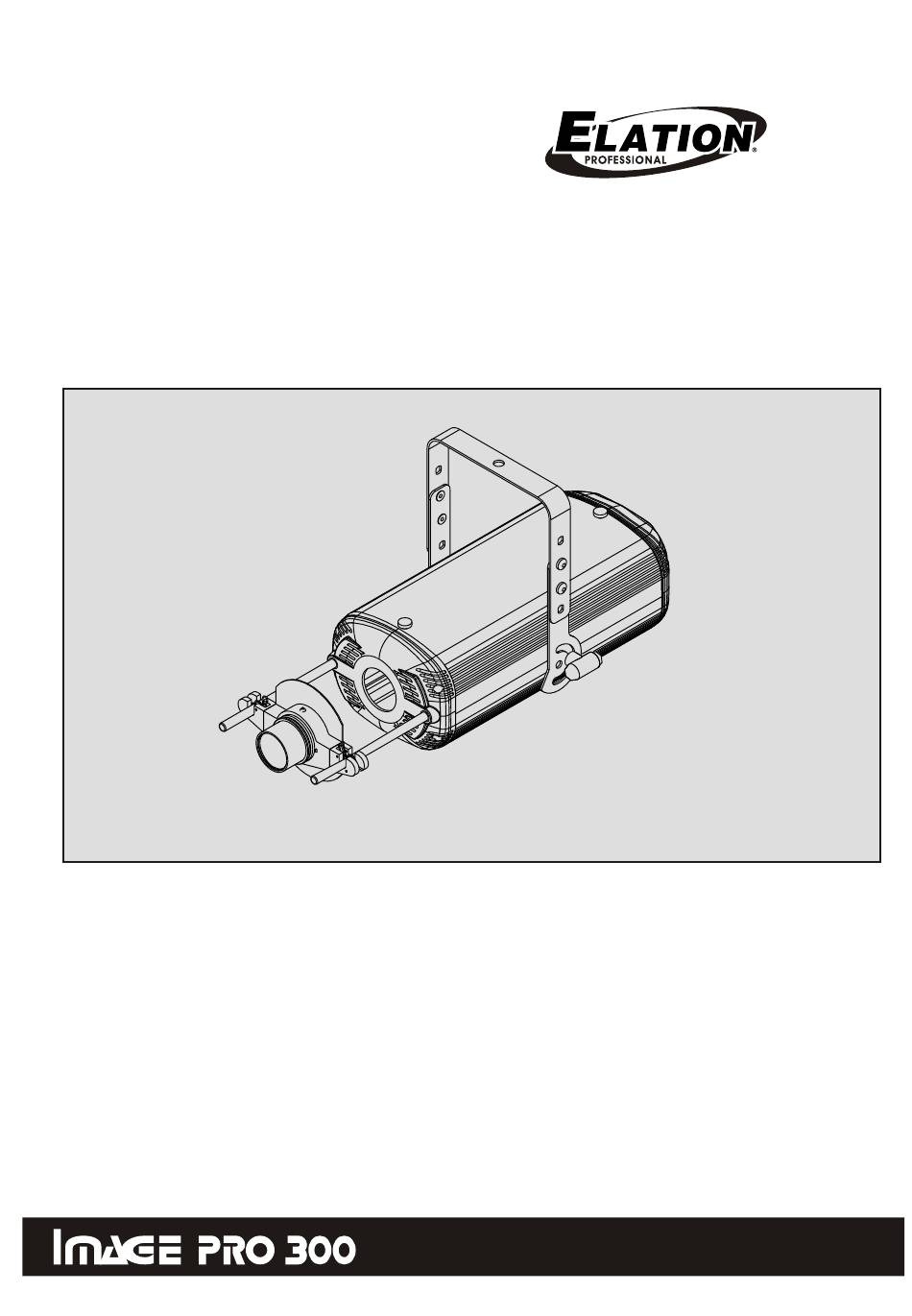

- Page 1 IMAGE PRO 300 OWNER'S GUIDE English Version 2.0...
-
Page 3: General Information
General Information Unpacking: Thank you for your purchase of this product. Every product has been thoroughly tested and carefully packed before delivery. Unpack the shipping carton carefully, saving the carton and all packaging materials for possible later use. Check carefully for sure your product is not damaged and all accessories not missing. -
Page 4: Main Features
I . S . P . 3 0 0 I . S . P . 3 0 0 Main Features Powerful communication tool to create maximum and lasting visual image Die-cast and extruded aluminum finish Forced fan cooling system Twin lens condenser, spherical reflector and external standard lens(1:2.4/100 mm) Two electrified guides carry a 24V supply and can accommodate a lens andhousings for gobos and colors... - Page 5 Introduction ImagePro300 is a modular system designed specially for image spot. This spot is fitted with a 300 Watt HTI 300 arc lamp which has a light output of 20,000 lumens at lens. wo low voltage electrified guides(24 V) with short-circuit protection are equipped with this fixture to accept the user's...
- Page 6 Preparation First time setup 1. Unpack the shipping container carefully, assemble the accessories to fit in their right positions for proper attachment. 2. This unit can be hung or placed in any safe, secure surface by means of its adjustable mounting bracket. 3.
-
Page 7: Lamp Replacement
Lamp Replacement Metal Halide Lamp Warning! This fixture is fitted with a metal halide lamp which is highly susceptible to damage if impro[erly handled. Do not touch the bulb of the lamp with bare fingers(this can cause damages). The lamp contains small quantities of materials that will be harmful to the envionment, please dispose of the damaged lamp properly. - Page 8 Operation Guide This is a High-Tech product. When you are sure you have set up this unit properly, you can operate this unit freely. 1. Always be sure to mount this unit in the area that will allow proper ventilation. 2.
- Page 9 Fixed Gobo Holder & 6 Metal Gobos The ImagePro-300 comes with a fixed gobo holder and 6 metal gobos. These 6 metal gobos are illustrated as follows: (Dia. 51.5 mm) fixing plate supporting plate metal gobo mounting Gobo pattern & Image The mirror on the wall, floor etc.
- Page 10 Accessories and Effects The ImagePro-300 is specially designed to meet the demand for clarity of images in a wide variety of applications including exhibitions, retail environments, leisure, promotions and entertainment venues. Model No.: Image-IP3 Adjustable pivoting mirror (Sold separately) Rotating gobo: dichroic/photographic (diam.
-
Page 11: Technical Specifications
Technical Specifications Overall Size: 600x240x290mm (Dimensions with bars and brackets) Net Weight: 10.3Kg Standard Lens: 1:2.4 / 100 mm Lamp Type: 300 Watt HTI 300 metal halide lamp Lamp Base: SFc 10-4 Norminal Lamp Life: 750 hours Total Lumen Output: Approximately 20,000 Color Temperature: 6500 K... - Page 12 24-004-0779 E-mail: support @ elationlighting.com Http: www.elationlighting.com Rev 2.0 April 2003...
