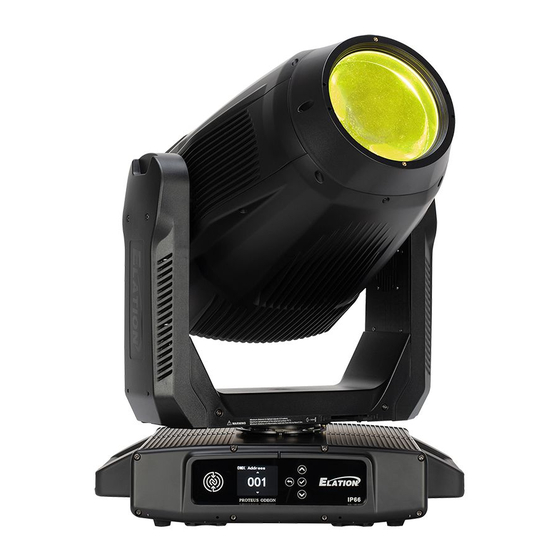

Elation PROTEUS ODEON User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P ROTEU S
O D EON
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROTEUS ODEON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation PROTEUS ODEON

Summary of Contents for Elation PROTEUS ODEON

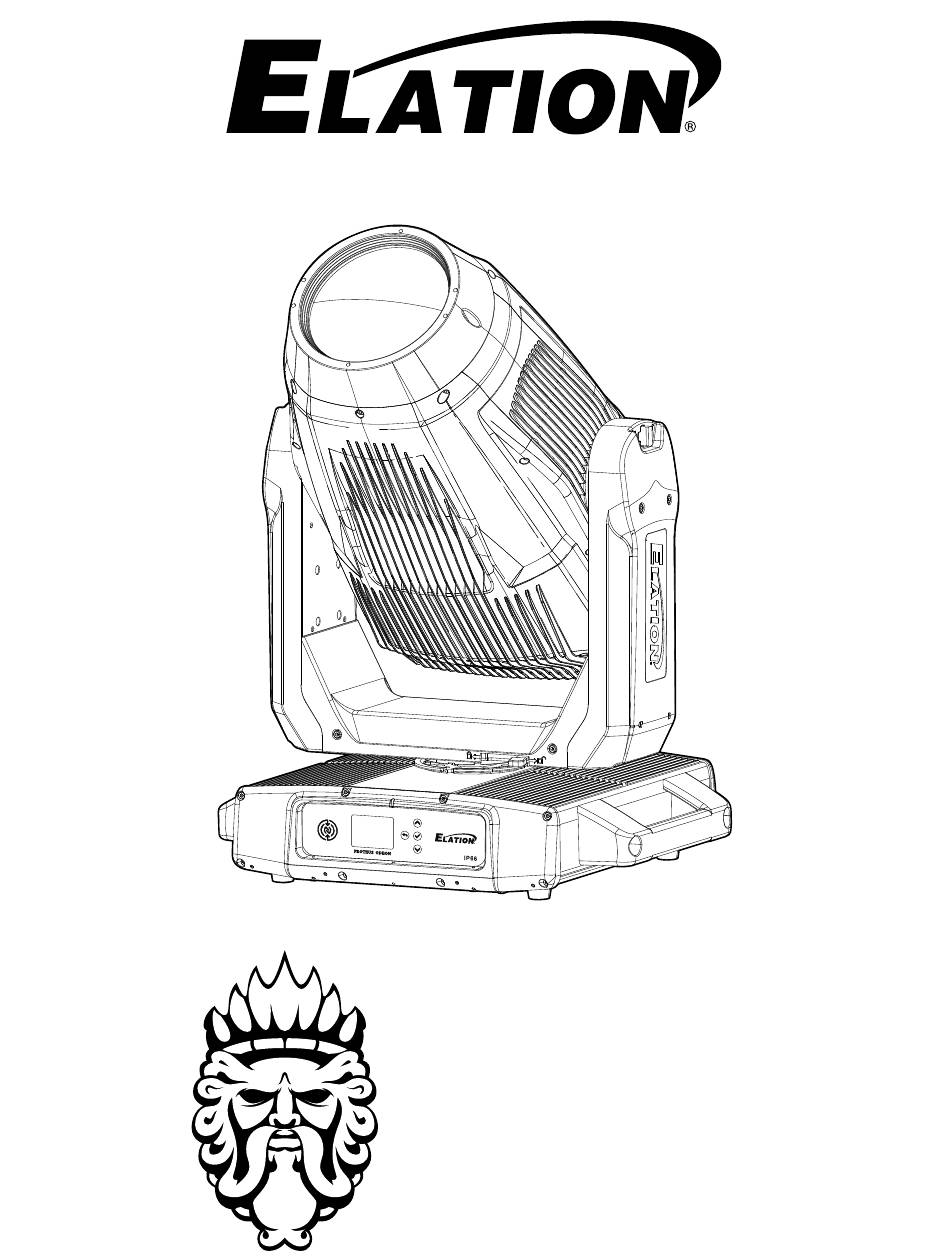

  • Page 1 P ROTEU S O D EON user manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...

  • Page 3: Table Of Contents

    C O N T E N T S General Information IP66 Rated Limited Warranty (USA Only) Safety Guidelines Overview Colors and Gobos Custom Gobos Gobo Installation Torque Settings for Screws IP Test Parameters Installation Guidelines Sun Protection Mode | Hibernation Mode Fan Modes and Low Noise Operation System Menu Dimmer Mode / Dimmer Curve...
  • Page 4 IP66 Rated 5-pin DMX Cable (x1) IP66 Rated RJ45 Data Cable (x1) - FIXTURE TO FIXTURE INTERCONNECTION USE ONLY! IP66 Locking Power Cable (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions.
  • Page 5 I P 6 6 R AT I N G The International Protection (IP) rating system is denoted as “IP” (Ingress Protection) followed by two numbers (e.g., IP66), signifying the level of protection. The initial digit (Protection from Foreign Bodies) indicates the degree of safeguarding against solid particles entering the fixture, while the second digit (Protection from Water) specifies defense against water ingress.

  • Page 6: Limited Warranty (Usa Only)

    It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 7: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 8 S A F E T Y G U I D E L I N E S 92.6 lbs. (42 kg) • DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. •...

  • Page 9: Overview

    O V E R V I E W Up Button NFC Access Point LCD Display Enter Button Back Button Down Button Lens Tilt Lock Pan Lock Carrying Handle 5pin DMX In/Out RJ45 In/Out MAINTAIN IP66 RATING INTEGRITY OF THE FIXTURE PREVENT WATER FROM ENTERING THE FIXTURE, SEAL ALL UNUSED...

  • Page 10: Colors And Gobos

    C O LO R S A N D G O B O S COLOR FLAGS CYAN MAGENTA YELLOW C.T.O. COLOR WHEEL GREEN PURPLE BLUE INTERCHANGEABLE – ROTATING GLASS GOBO WHEEL1 Pos. 1 Pos. 2 Pos. 3 Pos. 4 Pos. 5 Pos.

  • Page 11: Custom Gobos

    Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information. Ø29.8...
  • Page 12 Extended testing of custom gobo designs is highly recommended prior to use. Contact ELATION SERVICE for further information. ELATION SERVICE USA -Monday -Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 13: Gobo Installation

    G O B O I N S TA L L AT I O N REPLACING A ROTATING GOBO Place the fixture on a firm flat surface. Locate the (10x) screws on the side of the moving head and remove them. With the panel set aside, locate the Pattern Bracket Assembly and remove the (4x) screws that secure it to the internal housing frame.

  • Page 14: Torque Settings For Screws

    YOUR FACE, EYES, HANDS, ETC IN CLOSE PROXIMITY TO THE FIXTURE’S LENS WHILE PERFORMING THE TEST! CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP65 INTEGRITY, TEST FIXTURE USING THE ELATION IP TESTER. CONTACT ELATION SERVICE FOR MORE DETAILS.

  • Page 15: Ip Test Parameters

    Following any repair or maintenance procedure that requires disassembly of the fixture, use Elation’s IP Tester to confirm the IP integrity of the fixture. The air valve is located on the back panel next to the display screen, as shown in the diagram below. Please contact Elation...

  • Page 16: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 26.25 feet (8m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
  • Page 17 I N S TA L L AT I O N G U I D E L I N E S OMEGA BRACKET WITH CLAMP INSTALLATION When mounting the fixture to a truss, be sure to secure appropriately rated professional grade rigging clamps to the included Omega Brackets using an M10 or M12 screw fitted through the center hole of the Omega Brackets.
  • Page 18 I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION Insert (2x) minimum grade 8.8 steel M12x25mm bolts (not included) through the respective mounting hole of the clamp (not included), and then thread it into the matching 12M holes on the bottom of the fixture base.
  • Page 19 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 20 I N S TA L L AT I O N G U I D E L I N E S ART-NET | sACN CONNECTION When connecting fixture to a network switch to control multiple devices, a Gigabit Ethernet Switch that supports IGMP (Internet Group Management Protocol) is required. Using a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all connected devices to the switch.
  • Page 21 2. Remove old battery and replace (inside “-”, and outside “+”). NOTE: Replace the battery only with an Li-ion battery (IRC14500/700mAh), which can be ordered from the Elation Parts Website https://parts.elationlighting.com. Replace and tighten screw cap for the battery compartment.
  • Page 22 LEDs. This issue is not specific only to Elation lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.
  • Page 23 S U N P R O T E C T I O N M O D E The fixture incorporates an automatic protection from harmful sunlight, which can damage a fixture’s internal components from extended exposure. Fixtures use an internal sensor to determine their physical orientation, then reorient the fixture towards the ground to prevent sunlight from entering the lens.
  • Page 24 FA N M O D E S a n d LO W N O I S E O P E R AT I O N The Proteus Odeon is a high-performance fixture suited for multiple applications. For noise critical environments such as Theater, Opera or Orchestra Halls, it offers various fan operation modes which remove any distraction for the audience and performers.
  • Page 25 ACTIVATED. ARIA WIRELESS DMX IS AN OPTIONAL FEATURE WHICH MUST BE ACTIVATED IN THE SERVICE MENU. PLEASE CONTACT ELATION SERVICE FOR FURTHER DETAILS. AN ELATION E-LOADER III CAN BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. SEE PAGE 43 FOR INSTRUCTIONS. TO ORDER THIS DEVICE, PLEASE CONTACT ELATION SUPPORT FOR FURTHER DETAILS.
  • Page 26 S YS T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DMX Address 001 - 512 Standard CRI 80 Standard Flex CRI DMX Mode Ext. CRI 80 Ext. Flex CRI Hold Last Fade to Black No DMX Status Sun Protection DMX Settings...
  • Page 27 S YS T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) Current Time Time Total Run Time Last Run Time Head Base Temperature Lamp Head Humidity Base Information Fan 1U (Position) Fan 1U (Position) DMX Values Tilt Product IDs...
  • Page 28 S YS T E M M E N U FUNCTION - Auto Program Define fixture mode (Primary or Alone) for running Auto Programs. Select desired internal programs under “Select Program”, set the number of steps under “Edit program”, and edit individual scenes under “Edit Scenes”.
  • Page 29 S YS T E M M E N U EFFECT ADJUST - Calibration ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION. This function allows small adjustments to be made to the Tilt and Zoom movements to compensate for ware or in the event a sensor has been knocked slightly out of place. Because improper use of this function can result in undesired operation this function has been password protected.
  • Page 30 S YS T E M M E N U 3. Program Selection for Auto Pro Part • Select “Edit Program”. • Press ENTER to confirm. • Select “Select Programs”. • Press ENTER to confirm. • elect “Auto Pro Part 1”, “Auto Pro Part 2” or “Auto Pro Part 3”, and select which Secondary program is to be sent.
  • Page 31 D I M M E R M O D E S A N D D I M M E R C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect...
  • Page 32 D M X T R A I T S Std. Std. Ext. Ext. Default Value Function Snap CRI 80 Flex CRI CRI 80 Flex CRI Value 0-255 Left → Right Pan Fine 0-255 Fine Position Tilt 0-255 Forward → Backward Tilt Fine 0-255 Fine Position...
  • Page 33 D M X T R A I T S Std. Std. Ext. Ext. Default Value Function Snap CRI 80 Flex CRI CRI 80 Flex CRI Value Rotating Gobo 1 Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-89 Gobo 1 shake slow to fast...
  • Page 34 D M X T R A I T S Std. Std. Ext. Ext. Snap Default Value Function CRI 80 Flex CRI CRI 80 Flex CRI Value Fixed Gobo Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-77 Gobo 7...
  • Page 35 D M X T R A I T S Std. Std. Ext. Ext. Default Value Function Snap CRI 80 Flex CRI CRI 80 Flex CRI Value Auto Focus Auto Focus Off 5.0m 10-14 5.2m 15-19 5.4m 20-24 5.6m 25-29 5.8m 30-34 6.0m 35-39 6.3m 40-44 6.5m...
  • Page 36 D M X T R A I T S Std. Std. Ext. Ext. Snap Default Value Function CRI 80 Flex CRI CRI 80 Flex CRI Value AutoFocus Fine 0-255 Fine Adjustment Shutter/Strobe 0-31 Closed 32-63 Open 64-95 Strobe Slow → Fast 96-127 Open 128-159 Pulse-effect 160-191 Open...
  • Page 37 D M X T R A I T S Std. Std. Ext. Ext. Default Value Function Snap CRI 80 Flex CRI CRI 80 Flex CRI Value Animation Wheel Open 8-255 Animation Min → Max Animation Index 0-127 Position Scroll 128-189 Clockwise Fast → Slow 190-193 Stop 194-255 Counter-clockwise Slow →...
  • Page 38 D M X T R A I T S Std. Std. Ext. Ext. Default Value Function Snap CRI 80 Flex CRI CRI 80 Flex CRI Value Blade 1 A 0-255 Open → Closed Blade 1 A Fine 0-255 Fine Adjustment Blade 1 B 0-255 Open →...
  • Page 39 D M X T R A I T S Std. Std. Ext. Ext. Snap Default Value Function CRI 80 Flex CRI CRI 80 Flex CRI Value Framing Macro 8-15 Macro1 16-23 Macro2 24-31 Macro3 32-39 Macro4 40-47 Macro5 48-55 Macro6 56-63 Macro7 64-71 Macro8 72-79 Macro9...
  • Page 40 D M X T R A I T S Std. Std. Ext. Ext. Snap Default Value Function CRI 80 Flex CRI CRI 80 Flex CRI Value Refresh Rate (Hz) 1000 1010 1020 1030 1040 1050 1060 1070 1080 1090 1100 1110 1120 1130...
  • Page 41 D M X T R A I T S Std. Std. Ext. Ext. Snap Default Value Function CRI 80 Flex CRI CRI 80 Flex CRI Value 1320 1330 1340 1350 1360 1370 1380 1390 1400 1410 1420 1430 1440 1450 1460 1470 1480...
  • Page 42 C O LO R T E M P E R AT U R E DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 6300 2400 2500 6400 2600 6500 2700 6600 2800 6700 2900 6800 3000 6900 3100 7000 3200 7100 3300...
  • Page 43 V I R T U A L C O LO R S VALUE FILTER # COLOR lee filter ROCSO LEE026 bright red LEE736 2004 Twickenham Green LEE101 Yellow LEE797 Deep purple dark green LEE781 fire LEE128 Bright Pink LEE118 NO COLOUR BLUE Plasa red Deep Orange Follies Pink...
  • Page 44 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
  • Page 45 E R R O R C O D E S When power is applied, the unit will automatically enter a “Reset/Test” mode. This mode brings all the internal motors to a home position. If there is an internal problem with one or more of the motors an error code will flash in the display in the form of “XXer”...
  • Page 46 PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. An Elation E-Loader III can be used to update the fixture to the latest software. Please visit the E-Loader III product page at the Elation web site and download the product manual for step by step instructions.
  • Page 47 +31 45 546 85 63 | Fax +31 45 546 85 96 | support@elationlighting.eu The Elation Ethernet Updater is an EXE file, which only works on a PC System. Once you’ve received the Elation Ethernet Updater RAR file from Elation Service via email, download and extract the EXE file.
  • Page 48 S O F T WA R E U P D AT E S ETHERNET UPDATER Once you have installed the Elation Ethernet Updater, it will launch automatically (unless you unchecked “Launch Elation Ethernet Updater”), or you can open it any time by clicking on the icon.
  • Page 49 S O F T WA R E U P D AT E S ETHERNET UPDATER Once opened, your local IP will automatically be identified. Click “Scan fixture” and create a connection. The fixture identity will appear in the Update List on the left side of browser. A connection will fail to establish if the fixture IP and Local IP are not in the same network segment.
  • Page 50 S O F T WA R E U P D AT E S ETHERNET UPDATER Click Update, then wait for the download Progress to reach 100% before closing Updater. The Elation Ethernet Updater can update up to 31 fixtures via connection to a PC.
  • Page 51 Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.
  • Page 52 S P E C I F I C AT I O N S SOURCE CONTROL / CONNECTIONS High Efficiency 850W 6,500K Variable CRI 4 DMX Channel Modes White LED Engine 16-bit Pan, Tilt and Dimming Control 30,000 Hour Average LED Life* Motorized Focus and Auto-Focus Presets *Test lab conditions.
  • Page 53 D I M E N S I O N A L D R AW I N G S DRAWINGS NOT TO SCALE 25.8in. [655.2mm] Ø23.8in. [Ø604.4mm] 12.7in. [323.1mm] 2.0in. [50.8mm] 18.4in. [467.7mm] 16.4in. [417.1mm] 7.1in. [180.0mm] Specifications and documentation subject to change without notice.
  • Page 54 D I M E N S I O N A L D R AW I N G S DRAWINGS NOT TO SCALE Specifications and documentation subject to change without notice.
  • Page 55 O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM PHM012 1237000271 Proteus Hybrid Max PHM023 1237000282 Proteus Hybrid Max WMG TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp SIP126 5 ft.
