- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: TP-210A UXGA – Audio – RS-232 Line Transmitter/DA...
-
Page 2: Table Of Contents
Figure 1: TP-210A UXGA – Audio – RS-232 Line Transmitter/DA Figure 2: TP-210A Underside Figure 3: Connecting the TP-210A UXGA – Audio – RS-232 Line Transmitter/DA Figure 4: CAT 5 PINOUT Figure 5: RS-232 PINOUT Connection Tables ... -
Page 3: Introduction
1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing the Kramer TP-210A UXGA – Audio – RS-232 Line Transmitter/DA, which is ideal for: • Presentation and multimedia applications • Long range graphics distribution for schools, hospitals, security, and... -
Page 4: Quick Start
Computer Graphics / Audio / RS-232 Control Step 3: Set the underside switches - see section 6 Set the Hs and Vs Set the Hs and Vs polarity switches polarity switches Step 4: Connect the power KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
• Changeable polarity for decoding H and V Sync for video (UXGA) The TP-210A is housed in a 19” 1U rack mountable enclosure, with rack “ears” included, and is fed from a 100-240V AC universal switching power supply. About the Power Connect Feature The Power Connect feature applies as long as the cable can carry power. -
Page 6: Shielded Twisted Pair (Stp)/Unshielded Twisted Pair (Utp)
We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. -

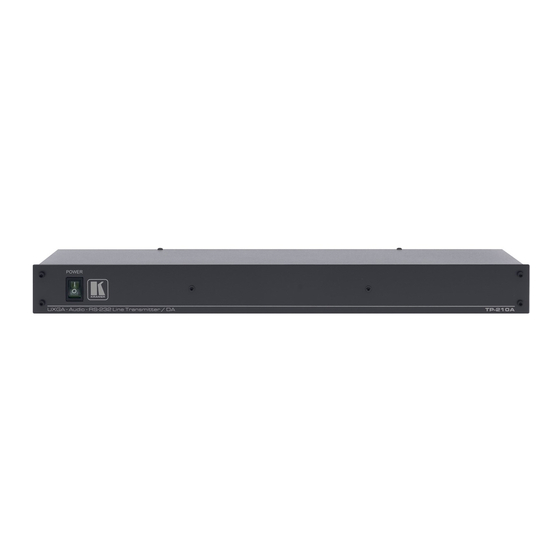

Page 7: Figure 1: Tp-210A Uxga - Audio - Rs-232 Line Transmitter/Da
Your TP-210A UXGA – Audio – RS-232 Line Transmitter/DA UXGA – Audio – RS 232 Line Transmitter/DA Figure 1: TP-210A... -
Page 8: The Tp-210A Uxga - Audio - Rs-232 Line Transmitter/Da Underside
Your TP-210A UXGA – Audio – RS-232 Line Transmitter/DA UXGA – Audio – RS 232 Line Transmitter/DA Table 1: TP-210A Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF UXGA INPUT 15-pin HD Connector Connect to the video source... -
Page 9: Installing On A Rack
Installing on a Rack Installing on a Rack This section provides instructions for rack mounting the unit. -
Page 10: Connecting The Tp-210A
IN RJ-45 connector on another TP-124, via UTP cabling (with a range of up to 300ft (up to 100m)) 1 Switch OFF the power on each device before connecting it to your TP-210A. After connecting your TP-210A, switch on its power and then switch on the power on each device 2 Alternatively, you can connect a digital audio source and acceptors and release the S/PDIF –... -
Page 11: Figure 3: Connecting The Tp-210A Uxga - Audio - Rs-232 Line Transmitter/Da
Audio / RS-232 Control Figure 3: Connecting the TP-210A UXGA – Audio – RS-232 Line Transmitter/DA 1 We recommend that you use only the power cord that is supplied with this machine 2 By default, both switches are set down (for normal V SYNC and H SYNC polarity) -
Page 12: Wiring The Cat 5 Line In/Line Out Rj-45 Connectors
Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 2-pin terminal block connector at the other end, as defined in Figure RS-232 to TP-210A TP-210A to Controlled Unit Connected to PIN 5 PIN 5 Connected to G... -
Page 13: Technical Specifications
Table 4 includes the technical specifications of the TP-210A: Table 4: Technical Specifications of the TP-210A INPUTS: 1 UXGA video on a 15-pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 S/PDIF on an RCA connector, 1 RS-232 with 1 RxD line on a terminal block connector. - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
