Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: TP-205A XGA/Audio/RS-232 Line Transmitter/DA... -
Page 2: Table Of Contents
Figure 4: Looping the TP-205A Figure 5: CAT 5 PINOUT Figure 6: RS-232 PINOUT Connection Tables Table 1: TP-205A Features Table 2: Features of the TP-205A Underside Table 3: CAT 5 PINOUT Table 4: RS-232 PINOUT Connection Table 5: Technical Specifications of the TP-205A... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start The quick start charts summarize the basic setup and operation steps of the TP-205A. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview

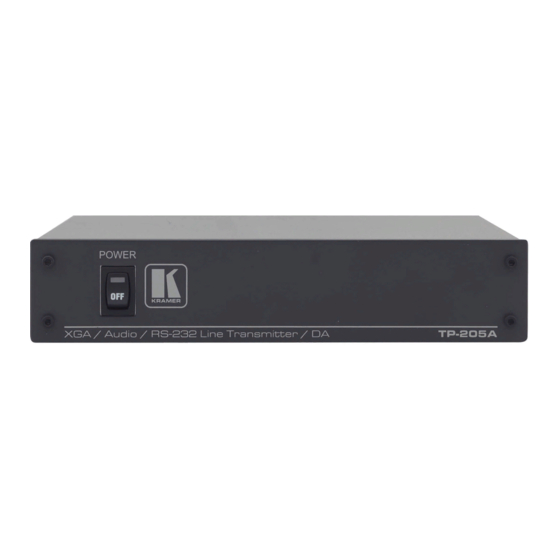

Overview Overview The TP-205A is a high-performance transmitter. It accepts a computer graphics input signal, a selectable unbalanced stereo analog audio signal or a digital audio (S/PDIF) signal, and unidirectional (TxD) RS-232 control commands (that can be embedded when the S/PDIF ANALOG Selector Button is set to the analog state). -
Page 6: Recommendations For Achieving The Best Performance
However, since the use of UTP cable might cause inconformity to electromagnetic standards, Kramer does not commit to meeting the standard with UTP cable. Recommendations for Achieving the Best Performance... -
Page 7: Your Tp-205A
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 Figure 2 For example, the Kramer TP-124, the Kramer TP-46, and so on 3 RS-232 can be embedded only when the S/PDIF ANALOG Selector Button is set to the analog state... -
Page 8: Configuring The Tp-205A
This section describes how to: • Connect the TP-205A (see section 5.1) • Connect an additional TP-205A (see section 5.2) • Wire the CAT 5 LINE IN/LINE OUT RJ-45 Connectors (see section 5.3) • Control via RS-232 (see section 5.4) -
Page 9: Connecting The Tp-205A
XGA source to the XGA IN 15-pin HD connector, and a separate audio source to the AUDIO IN 3.5mm mini jack 3 If the digital audio input is selected, release the SELECT button 4 The two right pins (GND and LOOP) can be connected to the GND and IN connectors on an additional TP-205A unit 5 As defined in... -
Page 10: Figure 3: Connecting The Xga/Audio/Data Line Transmitter/Receiver System
Configuring the TP-205A Figure 3: Connecting the XGA/Audio/Data Line Transmitter/Receiver System KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Looping The Tp-205A
Figure 4: Looping the TP-205A 1 The number of TP-205A units that can be looped depends upon the quality of the input signal that you require and the distance between the machines. We do not recommend cascading more than five TP-205A units... -
Page 12: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 2 PIN terminal block connector at the other end, as defined in Figure Table PC (Controller) to TP-205A Table 4: RS-232 PINOUT Connection PIN 5 Connected to GND Attach the 9-pin... -
Page 13: Technical Specifications
Technical Specifications Table 5 includes the technical specifications of the TP-205A: Table 5: Technical Specifications of the TP-205A INPUTS: Video: 1 VGA/UXGA on an 15-pin HD connector Audio: 1 audio ANALOG 3.5mm mini jack, 1 audio S/PDIF RCA connector OUTPUTS: 1 RJ-45 OUT connector MAX. - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
